FLOOR MAT & SILENCER PAD

55211SILENCER, FRONT PANEL

main55211-95404iYU6#,7#,8#198409-198708

main55211-95405iRU75,85,WU9#198409-198708

55213APAD, DASH PANEL SILENCER

main55213-95400iYU6#,7#,8#198409-198708

UPR

main55213-95401iYU6#,7#,8#198409-198708

LWR

58288SEAL, SHIFT LEVER BOOT

main58288-95400iRU85,WU9#,YU60,62,8#..RHD198409-198708

main58288-95401iRU75,85,WU9#,YU6#,7#,8#..LHD198409-198708

58505AMAT SUB-ASSY, HEADER

main58504-92601-03iYU7#198506-198708

SHADOW GRAY,SHADOW GRAY

main58504-92604-03iYU70198409-198506

SHADOW GRAY,GRAY

58509BMAT SUB-ASSY, SEAT FLOOR

main58509-95421-03iYU60..ARL198409-198508

GRAY,GRAY

main58509-95429-03iWU90..ARL198409-198508

GRAY,GRAY

main58509-95448-03iYU60..EUR198409-198508

GRAY,GRAY

main58509-95449-03iYU60,62..ARL198508-198708

GRAY,SHADOW GRAY

main58509-95453-03iYU81..LHD..IV3198608-198708

*SWZ,GRAY,SHADOW GRAY

main58509-95453-03iYU60..EUR198508-198608

GRAY,SHADOW GRAY

main58509-95454-03iWU90..ARL198508-198708

GRAY,SHADOW GRAY

main58509-95458-03iWU90..ARL198508-198708

W/*SUS,GRAY,SHADOW GRAY

58511MAT, FLOOR, FRONT

main58510-95477-03iYU60..ARL198409-198412

SHADOW GRAY,GRAY

main58510-95483-03iYU60,80..RHD198409-198412

SHADOW GRAY,GRAY

main58510-95484-03iYU60,62,8#..RHD198412-198708

SHADOW GRAY,GRAY

main58510-95484-03iYU60,80..RHD198409-198412

W/*STAC,SHADOW GRAY,GRAY

main58510-95485-03iYU60,80..LHD..(T1,T3)..GEN198409-198412

SHADOW GRAY,GRAY

main58510-95486-03iYU6#,70,80..LHD..GEN198409-198412

W/*STAC,SHADOW GRAY,GRAY

main58510-95486-03iYU60,61,70,80..LHD..GEN198412-198708

SHADOW GRAY,GRAY

main58510-95B00-03iWU90..ARL198409-198708

SHADOW GRAY,GRAY

main58510-95B06-03iRU85,WU9#..RHD..(GEN,SA)198409-198708

SHADOW GRAY,GRAY

main58510-95B07-03iRU75,85,WU9#..LHD198409-198708

SHADOW GRAY,GRAY

main58510-95B11-03iWU90..RHD..GEN198409-198708

W/PTO,SHADOW GRAY,GRAY

main58510-95B12-03iWU90..ARL198409-198708

W/PTO,SHADOW GRAY,GRAY

main58510-95B14-03iYU60..ARL198409-198412

W/*STAC,SHADOW GRAY,GRAY

main58510-95B14-03iYU60,62..ARL198412-198708

SHADOW GRAY,GRAY

main58510-95B15-03iYU81..LHD..IV3198608-198708

*SWZ,GRAY,GRAY

main58510-95B15-03iYU60..EUR198409-198608

SHADOW GRAY,GRAY

58520FMAT ASSY, ENGINE COVER

main58520-95400-03iYU60..ARL198409-198504

SHADOW GRAY,GRAY

main58520-95402-03iWU90..ARL198409-198508

SHADOW GRAY,GRAY

main58520-95405-03iYU60..EUR198409-198608

SHADOW GRAY,GRAY

main58520-95405-03iYU81..LHD..IV3198608-198708

*SWZ,SHADOW GRAY,GRAY

main58520-95406-03iYU60,62..ARL198504-198708

SHADOW GRAY,SHADOW GRAY

main58520-95407-03iWU90..ARL198508-198708

SHADOW GRAY,SHADOW GRAY

58521HOOK, MALE, NO.1

main90530-04007iYU7#198409-198708

SCREW TYPE

main90530-06001iRU75,85,WU9#,YU6#,7#,8#198409-198708

CLIP TYPE

58528MAT, REAR DOOR STEP

main58541-92600-03iYU7#198409-198708

SHADOW GRAY,GRAY

58540AMAT ASSY, FRONT FLOOR, REAR NO.1

main58540-95401-03iYU60,62..ARL198508-198708

GRAY,SHADOW GRAY

main58540-95406-03iYU81..LHD..IV3198608-198708

*SWZ,GRAY,SHADOW GRAY

main58540-95406-03iYU60..EUR198508-198608

GRAY,SHADOW GRAY

58563MAT, REAR FLOOR

main58572-92600-03iYU7#..BUS198409-198708

FR,W/*CS,SHADOW GRAY,GRAY

main58581-92601-03iYU7#..V198409-198708

SHADOW GRAY,GRAY

main58581-92604-03iYU7#..BUS198409-198708

SHADOW GRAY,GRAY

main58581-92605-03iYU60,62..TW1198409-198708

SHADOW GRAY,GRAY

main58582-92600-03iYU7#..BUS198409-198708

RR,W/*CS,SHADOW GRAY,GRAY

58572SET PLATE, REAR FLOOR MAT, REAR

main58618-92600iYU7#198409-198708

RH

main58628-92600iYU7#198409-198708

LH

58597PLATE, SEAT TRACK SET

main58597-95400iRU75,85,WU9#,YU6#,8#..GEN198409-198708

58623PAD, FLOOR SILENCER, FRONT CENTER

main58624-95400-03iWU9#,YU60,80..RHD..(GEN,SA)198409-198508

SHADOW GRAY,GRAY

main58624-95401-03iRU75,85,WU9#,YU6#,7#,8#..LHD..GEN198409-198708

SHADOW GRAY,GRAY

main58624-95402-03iRU85,WU9#,YU60,62,8#..RHD..(GEN,SA)198508-198708

GRAY,SHADOW GRAY

58624APLATE, SEAT FLOOR MAT SET

main58614-95A01-03iYU7#..BUS;YU60,62..TW1198508-198708

GRAY,SHADOW GRAY

main58624-92602iYU70..BUS;YU60..TW1198409-198508

9015940041

main90159-40041

9015950178

main90159-50178

9018904013

main90189-04013

9356014014

main93560-14014

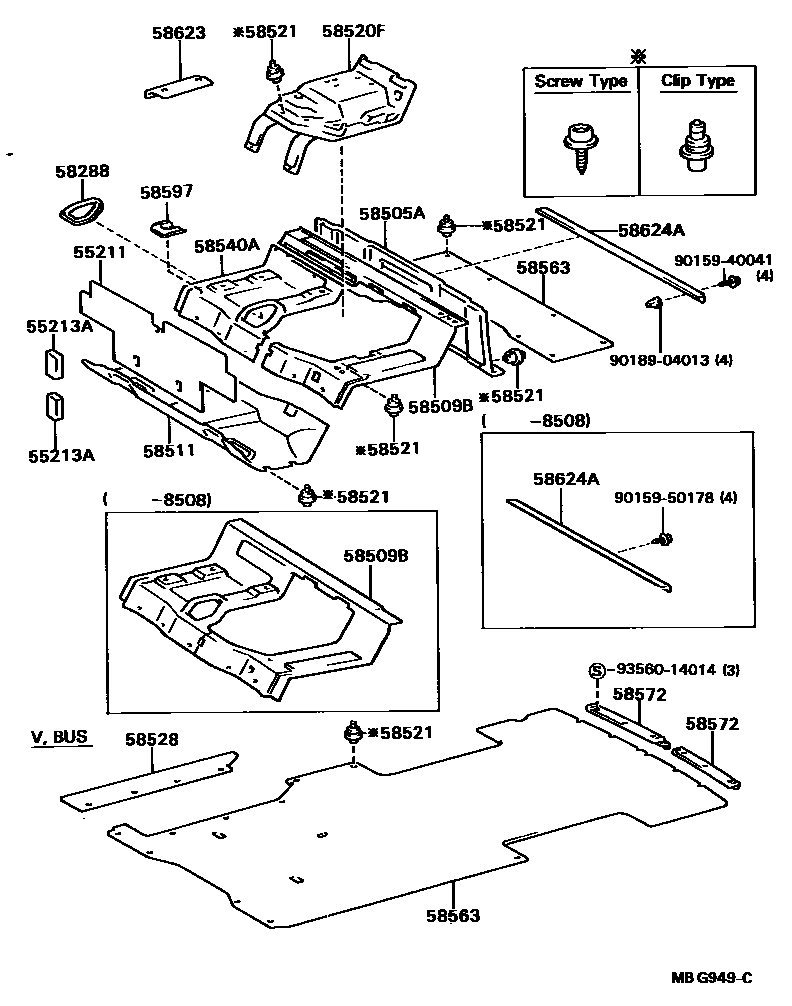

19 parts on this diagram · 1 diagram in section
