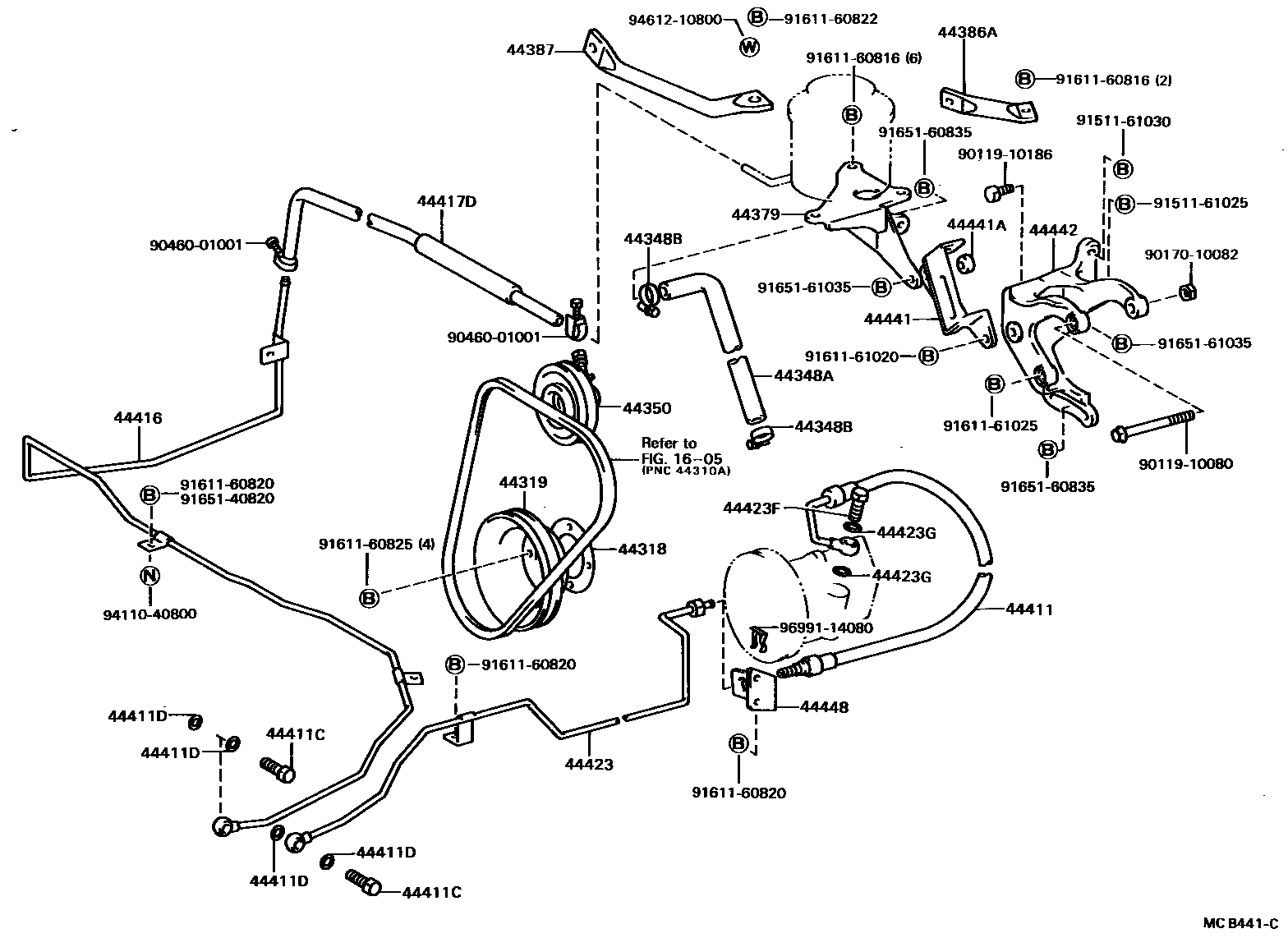

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

main44318-36010iRU75,85..GEN198409-198708

44319PULLEY, VANE PUMP DRIVE

main13477-38010iRU75,85..GEN198409-198708

main44319-28013iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36080iWU9#..ARL,GEN198409-198708

sub44348-36081

main44348-36120iRU75,85..GEN198409-198708

sub44348-36180

main44348-36130iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

sub44348-36131

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iRU75,85,WU9#..ARL,GEN198409-198708

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

main44350-36021iRU75,85..GEN198409-198708

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36060iRU75,85198409-198508

sub44379-36130

main44379-36100iWU9#..ARL,GEN198409-198708

main44379-36111iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

main44379-36130iRU75,85..GEN198508-198708

44386ASUPPORT, OIL RESERVOIR

main44386-36070iWU9#..ARL,GEN198409-198708

main44386-36080iRU75,85..GEN198409-198708

44387SUPPORT, OIL RESERVOIR, NO.2

main44387-36010iRU75,85..GEN198409-198708

44411HOSE, PRESSURE FEED

main44411-36120iWU90..RHD..(ARL,GEN)198409-198708

sub44411-36121

main44411-36130iRU75,85..GEN198409-198708

main44411-36151iWU9#..LHD198409-198708

sub44411-36152

main44411-36200iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-14003iWU9#..ARL,GEN198409-198708

main90401-16004iRU75,85..GEN198409-198708

sub90401-16027

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-14235iWU9#,YU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198409-198708

main90430-16168iRU75,85..GEN198409-198708

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36090iWU90..RHD..(ARL,GEN)198409-198708

main44416-36100iRU75,85..GEN198409-198708

main44416-36110iWU9#..LHD198409-198708

main44416-36130iYU60,62,8#..RHD..(ARL,GEN)198510-198708

44417TUBE, RETURN, NO.2

main44417-36070iWU9#..ARL,GEN198409-198708

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18131iWU9#..ARL,GEN198409-198708

main90447-18024iRU75,85..GEN198409-198708

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36120iRU75,85..GEN198409-198708

main44423-36150iWU9#..ARL,GEN198409-198708

44423FBOLT, UNION

main90401-14003iRU75,85,WU9#..ARL,GEN198409-198708

main90401-16004iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

sub90401-16027

44423GGASKET, UNION BOLT

main90430-14235iRU75,85,WU9#..ARL,GEN198409-198708

main90430-16168iYU6#,8#..(L1,L2,T1,T3)..(ARL,EUR,GEN)198510-198708

44441BRACKET, PUMP, FRONT

main44441-36060iRU75,85198409-198508

main44441-36080iRU75,85..GEN198508-198708

44441ASPACER(FOR PUMP BRACKET, FRONT)

main90560-10019iRU75,85198409-198508

44442BRACKET, PUMP, REAR

main44442-36080iRU75,85..GEN198409-198708

44448BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1

main44447-36090iWU9#..ARL,GEN198409-198708

main44448-36020iRU75,85..GEN198409-198708

9011910080

main90119-10080

9011910186

main90119-10186

9017010082

main90170-10082

9046001001

main90460-01001

9151161025

main91511-61025

9151161030

main91511-61030

9161160816

main91611-60816

9161160820

main91611-60820

9161160822

main91611-60822

9161160825

main91611-60825

9161161020

main91611-61020

9161161025

main91611-61025

9165140820

main91651-40820

9165160835

main91651-60835

9165161035

main91651-61035

9411040800

main94110-40800

9461210800

main94612-10800

9699114080

main96991-14080

40 parts on this diagram · 5 diagrams in section
