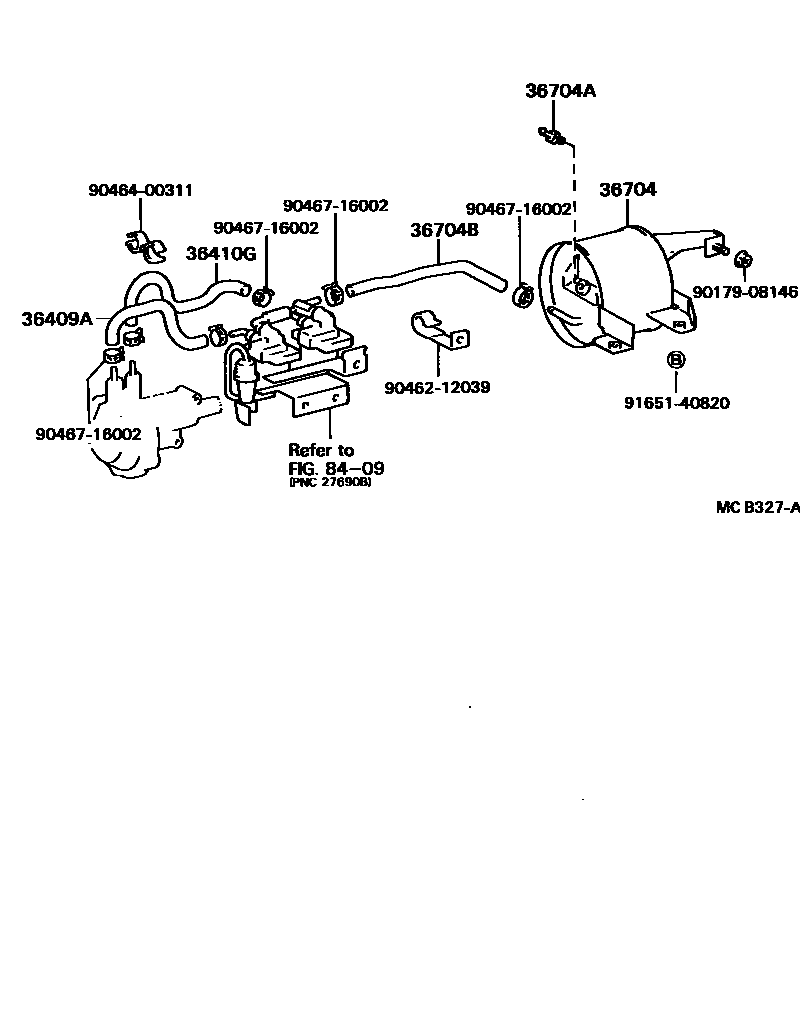

TRANSFER VACUUM PIPING

36409AHOSE (FOR VACUUM TUBE)

main44779-36050iWU90..ARL198508-198708

36410GHOSE (FOR DIAPHRAGM CYLINDER)

main44779-36060iWU90..ARL198508-198708

36704RESERVOIR SUB-ASSY, TRANSMISSION VACUUM

main36704-36010iWU90..ARL198508-198708

sub36704-36011

36704AVALVE ASSY, VACUUM CHECK (FOR TRANSMISSION VACUUM)

main44730-60040iWU90..ARL198508-198708

36704BHOSE, VACUUM (FOR RESERVOIR TO SOLENOID)

main44771-36130iWU90..ARL198508-198708

8409

9017908146

main90179-08146

9046212039

main90462-12039

9046400311

main90464-00311

9046716002

main90467-16002

9165140820

main91651-40820

11 parts on this diagram · 1 diagram in section
