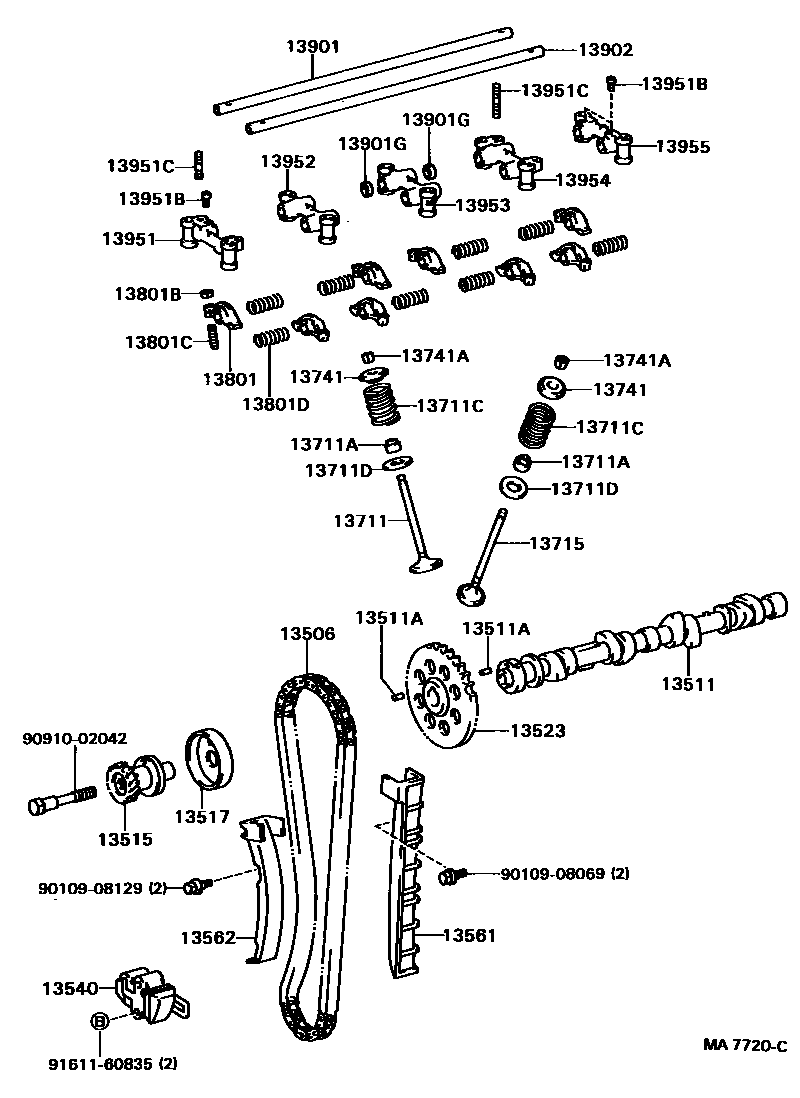

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

13506CHAIN SUB-ASSY

main13506-25010i3Y,4Y..YU6#,7#,8#198409-198708

sub13506-73010

main13506-35030i22R..RU75,85198409-198708

13511CAMSHAFT

main13501-78010i1W..WU9#198409-198708

sub13501-78090

main13511-35010i22R..RU75,85198409-198708

main13511-73900i3Y,4Y..YU6#,7#,8#198409-198707

sub13511-73902

main13511-73902i4Y..YU6#,71,81198707-198708

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-06001i22R..RU75,85198409-198708

L=14,OD=6

13515GEAR, DISTRIBUTOR DRIVE

main13515-37010i22R..RU75,85198409-198708

N=13

sub13515-37900

13517CAM, FUEL PUMP DRIVE

main13517-37010i22R..RU75,85198409-198708

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i3Y,4Y..YU6#,7#,8#198409-198708

main13523-35020i22R..RU75,85198409-198708

main13523-78010i1W..WU9#198409-198708

sub13523-78020

13540TENSIONER ASSY, CHAIN, NO.1

main13540-25010i3Y,4Y..YU6#,7#,8#198409-198708

main13540-35010i22R..RU75,85198409-198409

sub13540-35011

main13540-35011i22R..RU75,85198409-198708

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-25010i3Y,4Y..YU6#,7#,8#198409-198708

main13561-35020i22R..RU75,85198409-198708

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-35020i22R..RU75,85198409-198708

13711VALVE, INTAKE

main13711-35040i22R..RU75,85198409-198502

sub13711-35050

main13711-35050i22R..RU75,85198502-198509

sub13711-35051

main13711-35051i22R..RU75,85198509-198708

main13711-71010i3Y,4Y..YU6#,7#,8#198409-198708

main13711-78010i1W..WU9#198409-198708

subS1371-11443

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02047i1W..WU9#198409-198708

sub90038-12006

main90913-02053i22R..RU75,85198409-198708

sub90913-02110

main90913-02065i3Y,4Y..YU6#,7#,8#198409-198704

sub90913-02073

main90913-02073i4Y..YU6#,71,81198704-198708

sub90913-02080

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-44003i1W..WU9#198409-198708

sub90035-01054

main90501-45025i22R..RU75,85198409-198708

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-20579i22R..RU75,85198409-198708

main90201-21002i3Y,4Y..YU6#,7#,8#198409-198708

13715VALVE, EXHAUST

main13715-35040i22R..RU75,85198409-198708

main13715-71010i3Y,4Y..YU6#,7#,8#198409-198708

main13715-78010i1W..WU9#198409-198708

subS1371-51251

13741RETAINER, VALVE SPRING

main13740-43010i3Y,4Y..YU6#,7#,8#198409-198708

EXHAUST

main13741-38010i22R..RU75,85198409-198708

main13741-63010i3Y,4Y..YU6#,7#,8#198409-198708

INTAKE

main13741-78010i1W..WU9#198409-198708

sub13741-78020

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i22R..RU75,85198409-198708

main90913-03014i3Y,4Y..YU6#,7#,8#198409-198708

main90913-03023i1W..WU9#198409-198708

sub90038-13005

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-35010i22R..RU75,85198409-198708

main13811-71010i3Y,4Y..YU6#,7#,8#198409-198708

main13811-78011i1W..WU9#198409-198708

sub13811-E0090

13801BNUT, HEXAGON(FOR VALVE ADJUSTING)

main90170-08013i1W..WU9#198409-198708

sub90031-78087

main90179-08049i22R..RU75,85198409-198708

13801CSCREW, VALVE ADJUSTING

main13788-78011i1W..WU9#198409-198708

subS1378-71161

main90913-05019i22R..RU75,85198409-198708

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-12008i22R..RU75,85198503-198505

sub90501-14064

main90501-12008i22R..RU75,85198409-198503

EXHAUST SIDE

sub90501-14064

main90501-12091i22R..RU75,85198409-198503

INTAKE SIDE

main90501-14064i22R..RU75,85198505-198708

main90501-16068i3Y,4Y..YU6#,7#,8#198409-198708

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-71010i3Y,4Y..YU6#,7#,8#198409-198708

main13901-78010i1W..WU9#198409-198708

subS1390-11190

main13911-38011i22R..RU75,85198409-198708

sub13911-35010

13901GWASHER, ROCKER SHAFT

main90560-16008i22R..RU75,85198409-198708

13902SHAFT SUB-ASSY, VALVE ROCKER, NO.2

main13912-38011i22R..RU75,85198409-198708

sub13912-35010

13951SUPPORT, VALVE ROCKER, NO.1

main13951-38012i22R..RU75,85198409-198708

sub13951-35010

main13951-78010i1W..WU9#198409-198708

sub13951-E0060

13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)

main93210-16008i22R..RU75,85198409-198708

sub93210-56008

13951CBOLT, STUD(FOR ROCKER SUPPORT)

main90116-08197i22R..RU75,85198409-198708

13952SUPPORT, VALVE ROCKER, NO.2

main13952-38010i22R..RU75,85198409-198708

main13952-78010i1W..WU9#198409-198708

sub13951-E0070

13953SUPPORT, VALVE ROCKER, NO.3

main13953-38010i22R..RU75,85198409-198708

main13953-78010i1W..WU9#198409-198708

sub13951-E0080

13954SUPPORT, VALVE ROCKER, NO.4

main13954-38011i22R..RU75,85198409-198708

13955SUPPORT, VALVE ROCKER, NO.5

main13955-38010i22R..RU75,85198409-198708

9010908069

main90109-08069

9010908129

main90109-08129

9091002042

main90910-02042

9161160835

main91611-60835

34 parts on this diagram · 3 diagrams in section
