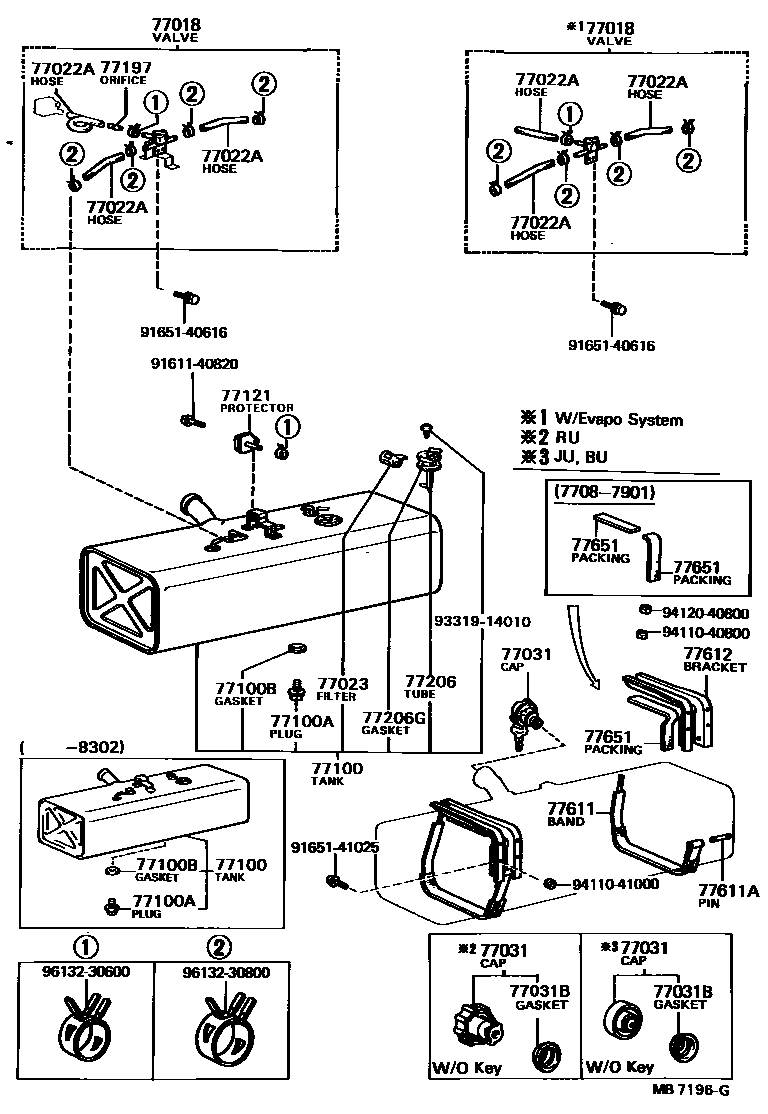

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-36011iRU20..TW1..ARL197708-198408

EVAPO SYSTEM

sub77018-60012

main77018-36061iBU20,RU20..BUS;BU20,JU20,RU20..(T1,TW1,VSG,VSP)..(EUR,GEN)197708-198411

main77018-36071iBU30..T2197708-198408

main77018-36090iRU30;RU20..EUR..IV3;RU20..T3..(ARL,GEN)197708-198408

EVAPO SYSTEM

sub77018-36100

main77018-36100iRU25197803-198008

EVAPO SYSTEM

main77018-36130iBU3#,40,HU40,50,RU30,WU40,50..T3..(EUR,GEN,GHI)198302-198411

main77018-55010iBU32,36,HU30,40,50..ARL197708-198408

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main77259-36010iBU23,25,31,32,40,RU25,WU40,50..GEN;BU20,30,36,HU40,50,RU20,30..T3..(ARL,GEN,GHI)198302-198411

L=270

sub95332-08028

main95332-06028iRU20..T1,TW1,VSG,VSP197708-197904

L=300(*H,L=280),EVAPO SYSTEM

sub95332-06030

main95332-06030iRU20..ST..ARL197904-198408

L=300(*H,L=280),EVAPO SYSTEM

sub95333-06030

main95332-06034iBU2#,30,HU30,RU2#,30..EUR,GEN197708-197904

L=400(*H,L=340)

sub95332-06040

main95332-06038iRU30;RU20..T3197708-197904

L=400(*H,L=380)

sub95332-06040

main95332-06040iRU30;RU20..T3..(ARL,GEN)197904-198408

L=400(*H,L=380)

sub95333-06040

main95332-06040iRU30;BU2#,3#,40,HU40,50,RU2#,WU40,50..ARL,GEN,GHI197904-198411

L=400(*H,L=340)

sub95333-06040

main95332-06055iRU25197803-197904

L=600(*H,L=550),EVAPO SYSTEM

main95332-06060iRU25..ARL197904-198008

L=600(*H,L=550),EVAPO SYSTEM

sub95333-06060

main95332-08007iHU30..ARL197708-197904

L=100(*H,L=70)

sub95332-08010

main95332-08010iBU32,36,HU30,40,50..ARL197904-198408

L=100(*H,L=70)

main95332-08017iBU20,JU20,RU20..T1,TW1,VSG,VSP197708-197904

L=200(*H,L=170)

sub95332-08020

main95332-08020iBU20,RU20..BUS;BU20,RU20..T1,TW1,VSG,VSP197904-198411

L=200(*H,L=170)

sub95333-08020

main95332-08028iBU20,RU20..T3;BU25,30,HU30,JU20,RU25,30..DMP,TR197708-197904

L=300(*H,L=220)

sub95332-08030

main95332-08030iBU20,RU20..T3;BU25,3#,40,HU40,50,RU25,30197904-198408

L=300(*H,L=220)

sub95333-08030

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-22040iBU20,RU20..ARL198302-198411

77031CAP ASSY, FUEL TANK

main69058-89102iBU2#,3#,40,HU40,50,WU40,50198206-198411

W/TANK CAP KEY

sub69058-25010

main69058-95400iRU2#,30197708-198408

W/TANK CAP KEY

sub69058-60071

main69058-95401iBU2#,3#,40,HU30,40,50,JU20197708-198206

W/TANK CAP KEY

sub69058-90B01

main77310-12041iRU2#,30..ARL,GEN197708-198408

main77310-55080iBU20..BUS;BU20..5F..ARL;BU25,32,36,40,HU30,40,50,JU20,WU40,50;BU20,30..(T1,T3,VSG,VSP)..(EUR,GEN,GHI)197708-198411

sub77310-60100

77031BGASKET (FOR FUEL TANK CAP)

main77316-12031iBU2#,30,31,32,HU30,JU20,RU2#,30,WU50197708-198411

W/TANK CAP KEY

main77316-12040iRU2#,30..ARL,GEN197708-198408

main77316-27010iBU20..BUS;BU20..5F..ARL;BU25,32,36,40,HU30,40,50,JU20,WU40;BU20,30..(T1,T3,VSG,VSP)..(EUR,GEN,GHI)197708-198411

77100TANK ASSY, FUEL

main77001-36193iBU30,HU30,RU30..EUR,GEN197708-198008

main77001-36240iBU32,36,HU30,40,RU30..ARL197708-198408

main77001-36260iBU20,JU20,RU20..LHD..(HRF,SRF)197708-198302

main77001-36270iBU20,RU20..RHD..SRF197708-198302

main77001-36280iBU20..T3;RU20..EUR..IV3;RU25..ARL..IV3;RU20..T3..(ARL,GEN);BU25,JU20,RU25..(DMP,TR)..(EUR,GEN)197708-198008

sub77001-36350

main77001-36290iBU20,RU20..T1197708-198302

main77001-36320iRU25..ARL197803-198008

main77001-36350iRU20..WT..ARL198008-198204

sub77001-36470

main77001-36360iBU3#,HU30,RU30..ARL,GEN,GHI198008-198204

sub77001-36450

main77001-36430iHU50..ARL198204-198408

main77001-36440iBU20,RU20..RHD..5H..ST..CBU198305-198408

main77001-36450iBU3#,40,HU40,50,RU30..EUR,GEN,GHI198204-198302

main77001-36470iBU25,RU25;BU20,RU20..T3..(EUR,GEN)198204-198302

sub77001-36530

sub77017-36050

sub93319-14010

main77001-36490iBU20..5F..ST198305-198411

main77001-36510iBU20..TB198305-198408

sub77001-36670

main77001-36520iBU30..T2198305-198408

sub77001-36740

main77001-36530iBU23,25,RU25;BU20,RU20..T3..(EUR,GEN)198305-198411

sub77001-36730

sub77168-36050

sub77169-14020

sub93319-14010

main77001-36550iBU3#,40,HU40,50,RU30,WU40,50..EUR,GEN,GHI198305-198411

sub77001-36710

main77001-36910iBU3#,40,HU40,50,RU30,WU40..EUR,GEN,GHI198302-198305

sub77001-36550

main77001-36911iBU20..5F..ST198302-198305

sub77001-36490

main77001-36912iBU20,RU20..RHD..5H..ST..CBU198302-198305

sub77001-36440

main77001-36913iBU20,RU20..LHD..SRF198302-198305

sub77001-36550

main77001-36914iBU25,RU25;BU20,RU20..T3..(EUR,GEN)198302-198305

sub77001-36530

main77001-36915iBU30..T2198302-198305

sub77001-36520

main77001-36916iBU20..TB198302-198305

sub77001-36510

77100APLUG(FOR FUEL TANK)

main90105-12018iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

77121PROTECTOR, FUEL TUBE

main77243-36010iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50..ARL,GEN,GHI197708-198411

main77258-36010iBU32,HU30,40,50,RU2#,30..ARL197708-198408

EVAPO SYSTEM

77197ORIFICE, FUEL VAPOR

main77198-35010iBU32,36,HU30,40,50..ARL197708-198408

main90977-02001iBU2#,30,31,36,40,HU40,50,RU2#,30,WU40,50..ARL,GEN,GHI197708-198411

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-36030iHU40,50198311-198408

SA

main77017-36030iWU40,50198305-198408

main77017-36050iRU20..ARL..IV3198302-198411

main77017-36070iBU20,30..T2198302-198408

main77017-36080iBU20..T1,VSG;RU20..(5F,5H)..ST;BU20,RU20..BUS..(4H,5H)198302-198411

main77017-36900iWU40198304-198305

sub77017-36030

main77017-36901iBU20,30..T3..(EUR,GEN,GHI);BU25,31,32,36,40,HU40,50..GEN198302-198304

sub77017-36050

77206GGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iBU2#,3#,40,HU40,50,RU2#,30,WU40,50..EUR,GEN,GHI198302-198411

77611BAND, FUEL TANK

main77601-36031iBU20,RU20..T1197708-198302

main77601-36051iBU20,RU20..T3;BU25,30,HU30,JU20,RU25,30..DMP,TR197708-198104

main77601-36060iRU20..BUS;RU20..TW1,VSG,VSP;BU20,JU20..HRF,SRF197708-198408

main77601-36090iBU20,30..T2198302-198408

main77601-36100iBU20,HU50,RU20,30..T3..ARL197901-198302

main77601-36130iBU20..5F..ST198302-198411

main77601-36140iBU20,23,3#,RU20,30,WU40,50..T3..(EUR,GEN,GHI)198302-198411

sub77601-37030

main77601-36150iRU30..TS198302-198408

sub77601-37040

main77601-55050iBU20,3#,RU20,30..T3..(EUR,GEN,GHI)198008-198408

77611APIN (FOR FUEL TANK BAND)

main77629-25010iRU20..BUS;RU20..TW1,VSG,VSP;BU20,JU20..HRF,SRF197708-198408

main77629-36010iRU20..T1,T3;BU2#,3#,40,HU30,40,50,JU20,RU25,30,WU40,50..DMP,TR197708-198411

77612BRACKET SUB-ASSY, FUEL TANK

main77501-36020iBU25,RU25197803-197901

main77501-36021iBU25,RU25197901-198204

sub77501-36022

main77501-36022iBU25,RU25198204-198408

main77633-36070iRU20..BUS;RU20..TW1,VSG,VSP;BU20,JU20..HRF,SRF197708-198408

main77633-36080iBU20,RU20..T1197708-197908

main77633-36081iBU20,RU20..T1197908-198411

main77633-36090iHU30,RU20..T3;HU30..TS..CBU;BU20,30,RU30..T3,TW1197708-198411

sub77633-36091

main77633-36111iBU20,32,HU40,50,RU20,30..ARL197910-198408

sub77633-36112

main77633-36120iBU20,30..T2198302-198408

sub77633-36121

77651PACKING, FUEL TANK BRACKET

main77651-25040iRU20..BUS;RU20..TW1,VSG,VSP;BU20,JU20..HRF,SRF197708-198408

main77651-36031iBU20,RU20..T1197708-197901

main77651-36032iBU20,RU20..T1197901-198411

main77651-36050iBU20,RU20..T3;BU25,3#,40,HU30,40,50,JU20,RU25,30..DMP,TR197708-198302

main77651-36100iBU20,30,RU20..T3;BU23,25,31,32,36,40,HU40,50,RU25,30,WU40,50198302-198411

main77651-36110iBU20,30..T2198302-198408

9161140820

main91611-40820

9165140616

main91651-40616

9165141025

main91651-41025

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000

9412040800

main94120-40800

9613230600

main96132-30600

9613230800

main96132-30800

25 parts on this diagram · 13 diagrams in section
