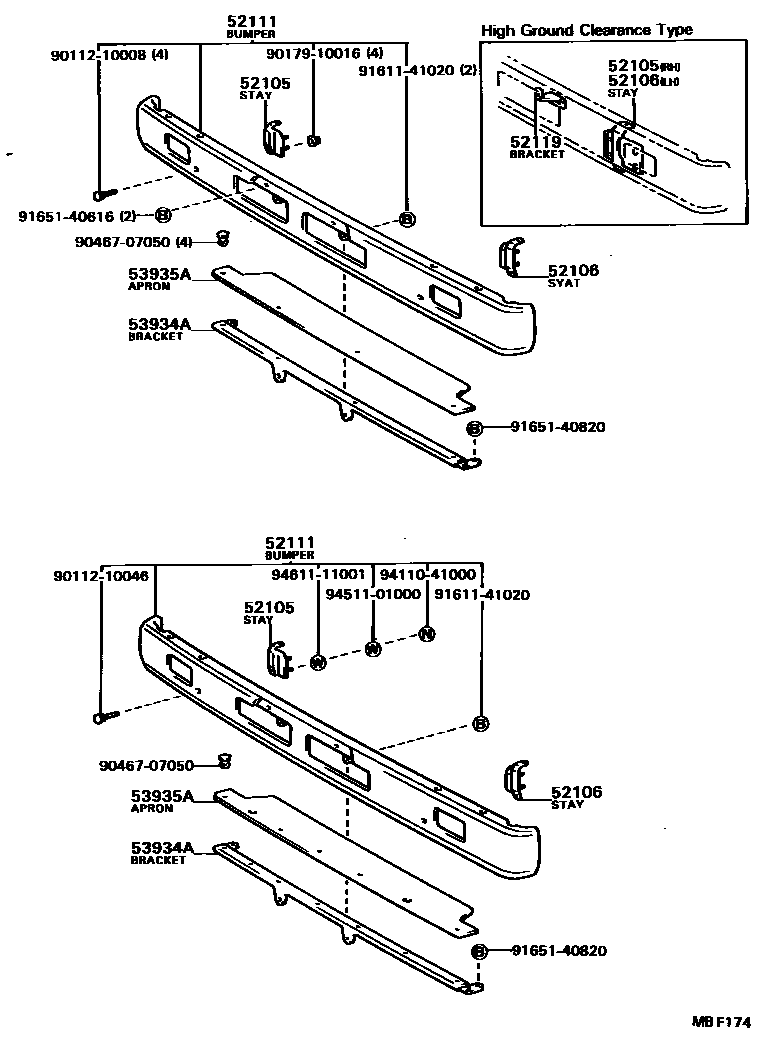

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52081-95400iBU2#,30,32,RU2#,30..ARL,GEN,GHI198104-198411

HIGH GROUND CLEARANCE TYPE

main52115-95402iBU2#,30,31,36,40,HU30,40,50,JU20,RU2#,30,WU40,50..ARL,EUR,GEN197708-198411

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52082-95400iBU2#,30,32,RU2#,30..ARL,GEN,GHI198104-198411

HIGH GROUND CLEARANCE TYPE

main52116-95402iBU2#,30,31,36,40,HU30,40,50,JU20,RU2#,30,WU40,50..ARL,EUR,GEN197708-198411

52111BUMPER ASSY, FRONT

main52111-39155iBU2#,30,HU30,RU2#,30..ARL,GEN197910-198008

sub52111-95405

main52111-39175iBU30..RHD..IV3198008-198101

W/FOG LAMP

main52111-39185iBU2#,30,HU30,RU2#,30..ARL,GEN198008-198101

sub52111-95407

main52111-39205iBU31198008-198411

sub52111-95409

main52111-39215iBU20,30..WT..EUR198008-198408

W/HEAD LAMP CLEANER

sub52111-95411

main52111-39245iBU31;BU30..RHD..IV3198101-198204

W/FOG LAMP

sub52111-95412

main52111-95491iBU20,30,RU20,30..EUR197708-198008

main52113-95404iBU36,40,HU40,50,WU40,50198204-198408

52119STAY, FRONT BUMPER, CENTER

main52119-95402iBU2#,30,32,RU2#,30..ARL,GEN,GHI198104-198411

HIGH GROUND CLEARANCE TYPE

53934ABRACKET, APRON GRILLE, LOWER

main53934-95400iBU2#,30,31,32,HU30,JU20,RU2#,30197708-198411

53935AAPRON, GRILLE LOWER

main53935-95400iBU2#,30,31,HU30,JU20,RU2#,30..ARL,EUR,GEN197708-198411

main53935-95401iBU2#,30,32,RU2#,30..ARL,GEN,GHI198104-198411

HIGH GROUND CLEARANCE TYPE

9011210008

main90112-10008

9011210046

main90112-10046

9017910016

main90179-10016

9046707050

main90467-07050

9161141020

main91611-41020

9165140616

main91651-40616

9165140820

main91651-40820

9411041000

main94110-41000

9451101000

main94511-01000

9461111001

main94611-11001

16 parts on this diagram · 2 diagrams in section
