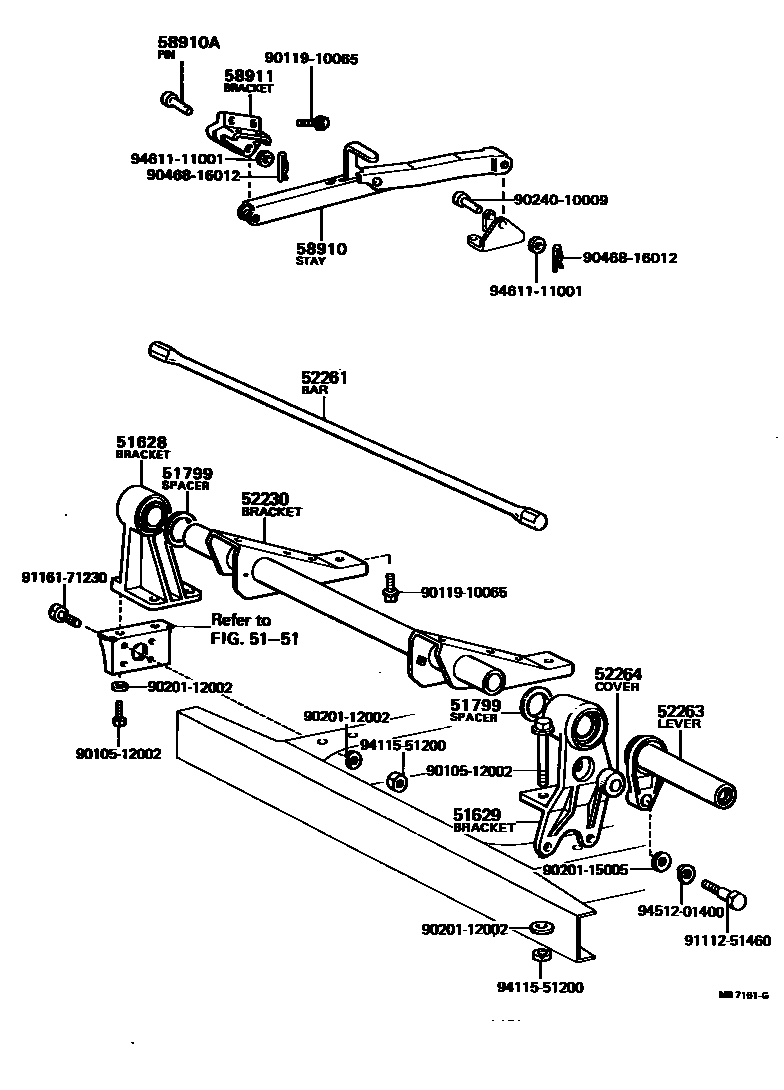

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1 0004 1

5151

51628BRACKET, TORSION BAR, RH

main51708-36010iBU20,30,32,HU30,RU2#,30..RHD197708-198411

main51708-36020iBU31,32,HU30..LHD197708-198408

main51708-36020iRU20,30..LHD..(T1,T3);BU2#,30,RU25..LHD..(DMP,TR)198008-198408

W/TILT CAB

main51708-36030iBU20,25,30,JU20,RU2#,30..LHD197708-198408

main51708-36041iBU36,40,HU40,50,WU40,50198204-198408

51629BRACKET, TORSION BAR, LH

main51709-36010iBU20,30,RU20,30..RHD..TR..(GEN,GHI)198204-198411

W/TILT CAB

main51709-36010iHU30..RHD..TB197708-198408

main51709-36020iBU2#,30,31,32,HU30,JU20,RU2#,30..LHD197708-198408

main51709-36030iHU30..TS..CBU;HU30..RHD..(IV1,IV3);BU20,30,RU20,30..RHD197708-198411

main51709-36041iBU36,40,HU40,50,WU40,50198204-198408

51799SPACER, FRONT MOUNTING

main51799-95400iBU20,JU20,RU20..V197708-198008

main51799-95401iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198008-198411

52230BRACKET ASSY, FRONT MOUNTING

main52220-95400iHU30..RHD..TB197708-198001

sub52220-95404

main52220-95401iHU30..LHD197708-198001

sub52220-95405

main52220-95404iBU20,30,HU30,RU20,30..RHD..(T1,T3)198008-198010

W/TILT CAB

sub52220-95407

sub51799-95401

main52220-95404iHU30..RHD..TB198001-198008

sub52220-95407

sub51799-95401

main52220-95405iBU2#,30,RU2#,30..LHD198008-198010

W/TILT CAB

sub52220-95408

sub51799-95401

main52220-95405iHU30..LHD198001-198104

sub52220-95408

sub51799-95401

main52220-95407iBU20,30,32,HU30,RU20,30..RHD..(T1,T2,T3)198010-198411

W/TILT CAB

main52220-95408iRU20,30..LHD..(T1,T3);BU2#,30,31,32,RU25..LHD..(DMP,TR)198010-198408

W/TILT CAB

main52220-95410iBU36,40,HU40,50,WU40..RHD198204-198408

main52220-95411iBU36,40,WU40,50..LHD198302-198408

main52230-95400iHU30..TS..CBU;BU20,30..RHD..GEN;HU30..RHD..(IV1,IV3)197708-198001

sub52230-95404

main52230-95401iBU2#,30,JU20,RU2#,30..LHD197708-198001

sub52230-95405

main52230-95404iRU20..TW1..ARL;RU2#,30..ARL..IV3;RU2#,30..RHD..GEN198001-198010

sub52230-95406

sub51799-95401

main52230-95405iBU20,RU20..LHD..V198001-198010

sub52230-95407

sub51799-95401

main52230-95406iBU32,HU30,RU20,30..TW1..ARL198010-198411

main52230-95407iBU20,25,30,RU2#,30..LHD198010-198408

52261BAR, TILT CAB TORSION

main52261-95400iHU30..RHD..TB197708-198411

main52261-95401iRU20,30..LHD..(T1,T3);BU2#,30,31,32,HU30,RU25..LHD..(DMP,TR)197708-198408

main52261-95403iBU36,40,HU40,50,WU40,50198204-198408

FR

main52262-95402iBU36,40,HU40,50,WU40,50198204-198408

RR

52263LEVER, TORSION BAR SPRING ANCHOR

main52205-95400iHU30..TB197708-198411

52264COVER, TORSION BAR SPRING ANCHOR LEVER

main52265-95400iHU30..TB197708-198411

58910STAY ASSY, CAB

main58910-95400iBU2#,30,31,RU25..DMP,TR;BU32,HU30,RU20,30..T1,T3197708-198106

sub58910-95402

main58910-95402iBU32,RU20,30..T1,T3;BU2#,30,31,RU25..DMP,TR198106-198411

main58910-95403iBU36,40,HU40,50,WU40,50198204-198408

58910APIN, W/HOLE (FOR CAB STAY SETTING)

main90240-10008iHU30..TB197708-198411

58911BRACKET, TILT CAB STAY

main58066-95400iHU30..TB197708-198411

9010512002

main90105-12002

9011910065

main90119-10065

9020112002

main90201-12002

9020115005

main90201-15005

9024010009

main90240-10009

9046816012

main90468-16012

9111251460

main91112-51460

9116171230

main91161-71230

9411551200

main94115-51200

9451201400

main94512-01400

9461111001

main94611-11001

22 parts on this diagram · 4 diagrams in section
