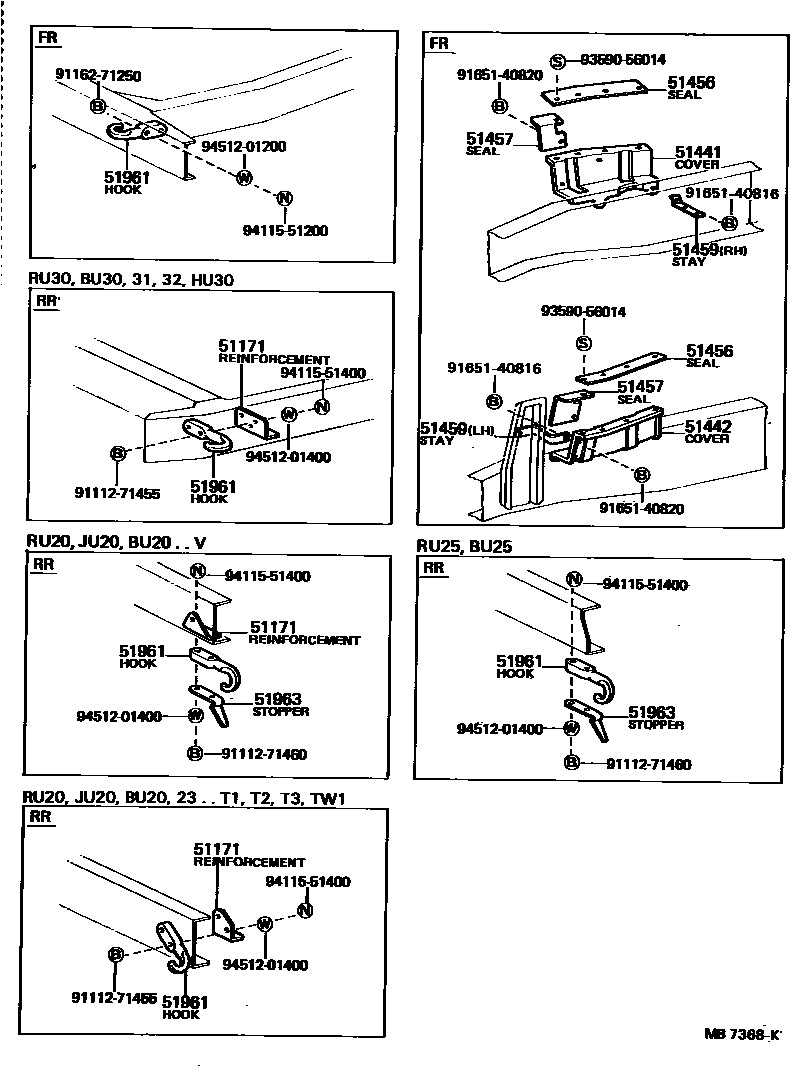

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51171REINFORCEMENT, SIDE RAIL REAR HOOK

main51171-36030iBU30,31,32,HU30,RU30197708-198411

main51171-36040iBU20,JU20,RU20..V197708-198408

main51171-36050iBU20,23,JU20,RU20..TR197708-198411

51441COVER, ENGINE UNDER, NO.1

main51448-36020iBU2#,30,31,32,HU30,RU2#,30197904-198411

main51448-36040iBU36,40,HU40,50,WU40,50198204-198408

51442COVER, ENGINE UNDER, NO.2

main51449-36010iBU2#,30,31,32,HU30,RU2#,30197904-198411

main51449-36030iBU36,40,HU40,50,WU40,50198204-198408

51456SEAL, ENGINE SIDE COVER, UPPER

main51456-36010iBU2#,30,31,32,HU30,RU2#,30197904-198411

main51456-36020iBU36,40,HU40,50,WU40,50198204-198408

51457SEAL, ENGINE SIDE COVER, FRONT

main51457-36010iBU2#,30,31,32,HU30,RU2#,30197904-198411

main51457-36020iBU36,40,HU40,50,WU40,50198204-198408

51459STAY, ENGINE SIDE COVER

main51459-36010iBU2#,30,31,32,HU30,RU2#,30197904-198411

LH

main51459-36020iBU36,40,HU40,50,WU40,50198204-198408

main51469-36020iBU2#,30,31,32,HU30,RU2#,30197904-198411

RH

51961HOOK, NO.1

main51961-36010iBU2#,JU20,RU20197708-198411

RR

main51961-36020iBU25,3#,40,HU30,40,50,RU25,30,WU40,50197708-198411

RR

main51961-36030iBU20,3#,RU2#,30198104-198411

FR

main51961-36030iBU30..GHI;BU32,36,40,HU40,50,WU40,50198104-198411

FR,HIGH GROUND CLEARANCE TYPE

main51961-60010iBU2#,30,HU30,JU20,RU2#,30197708-198411

FR

51963STOPPER, HOOK WIRE

main51963-36010iBU20,25,JU20,RU2#..BUS,DMP,V197708-198408

9111271455

main91112-71455

9111271460

main91112-71460

9116271250

main91162-71250

9165140816

main91651-40816

9165140820

main91651-40820

9359056014

main93590-56014

9411551200

main94115-51200

9411551400

main94115-51400

9451201200

main94512-01200

9451201400

main94512-01400

18 parts on this diagram · 2 diagrams in section
