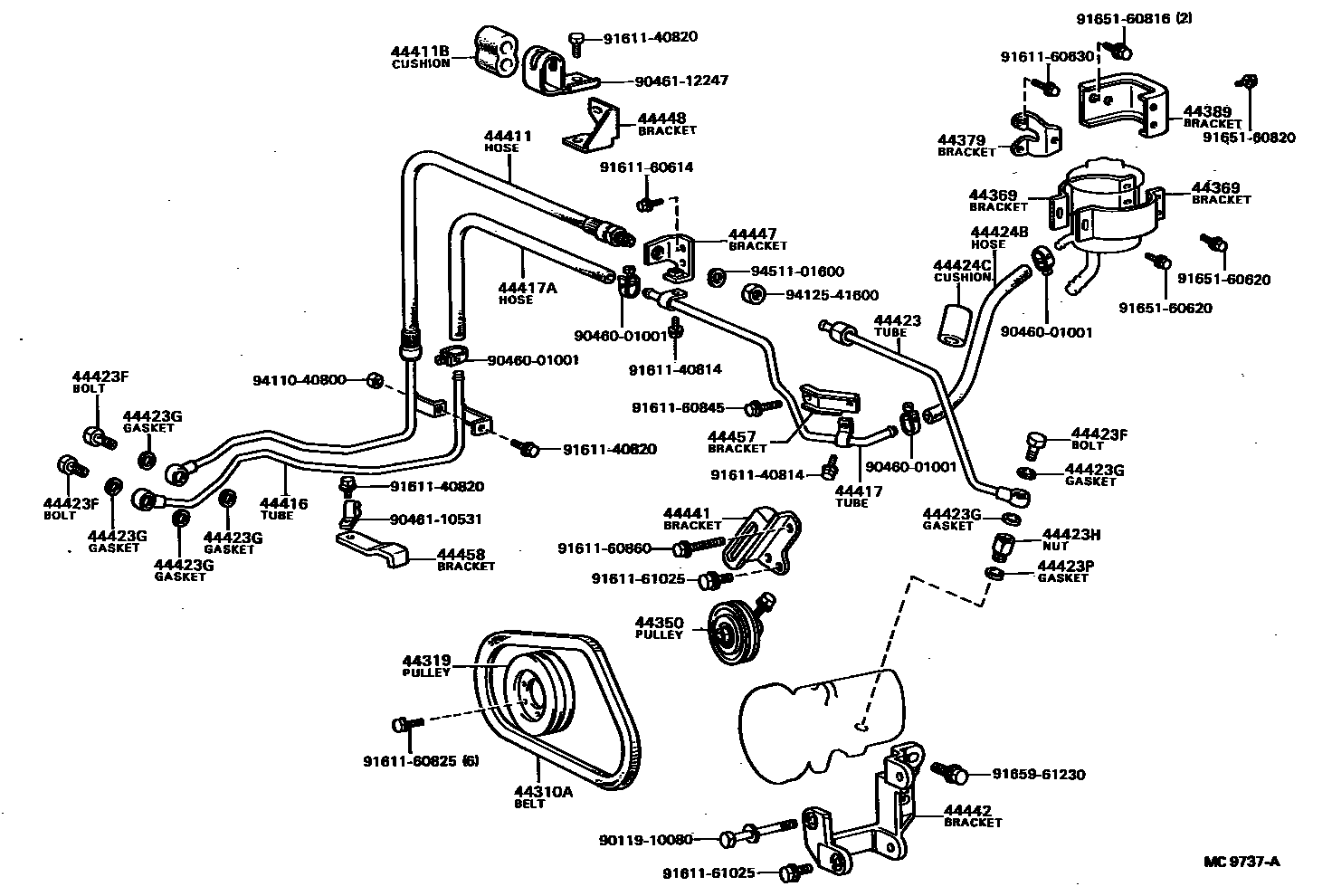

POWER STEERING TUBE
44310ABELT, V(FOR VANE PUMP)
44319PULLEY, VANE PUMP DRIVE
44350PULLEY ASSY, POWER STEERING IDLE
44369BRACKET, OIL RESERVOIR, NO.1
44379BRACKET, OIL RESERVOIR, NO.2
44389BRACKET, OIL RESERVOIR, NO.3
44411HOSE, PRESSURE FEED
44411BCUSHION(FOR PRESSURE FEED HOSE)
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44417TUBE, RETURN, NO.2
44417AHOSE, RETURN TUBE (FOR RETURN TUBE TO RETURN TUBE NO.2)
44423TUBE, OIL PUMP TO GEAR BOX
44423FBOLT, UNION
44423GGASKET, UNION BOLT
44423HNUT, UNION
44423PGASKET, UNION NUT
44424BHOSE, PRESSURE OIL(FOR TUBE TO OIL RESERVOIR)
44424CCUSHION(FOR TUBE TO OIL RESERVOIR)
44441BRACKET, PUMP, FRONT
44442BRACKET, PUMP, REAR
44447BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44448BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1
44457BRACKET, TUBE SUPPORT, NO.1
44458BRACKET, TUBE SUPPORT, NO.2
9011910080
main90119-10080
9046001001
main90460-01001
9046110531
main90461-10531
9046112247
main90461-12247
9161140814
main91611-40814
9161140820
main91611-40820
9161160614
main91611-60614
9161160630
main91611-60630
9161160825
main91611-60825
9161160845
main91611-60845
9161160860
main91611-60860
9161161025
main91611-61025
9165160620
main91651-60620
9165160816
main91651-60816
9165160820
main91651-60820
9165961230
main91659-61230
9411040800
main94110-40800
9412541600
main94125-41600
9451101600
main94511-01600
43 parts on this diagram · 2 diagrams in section
