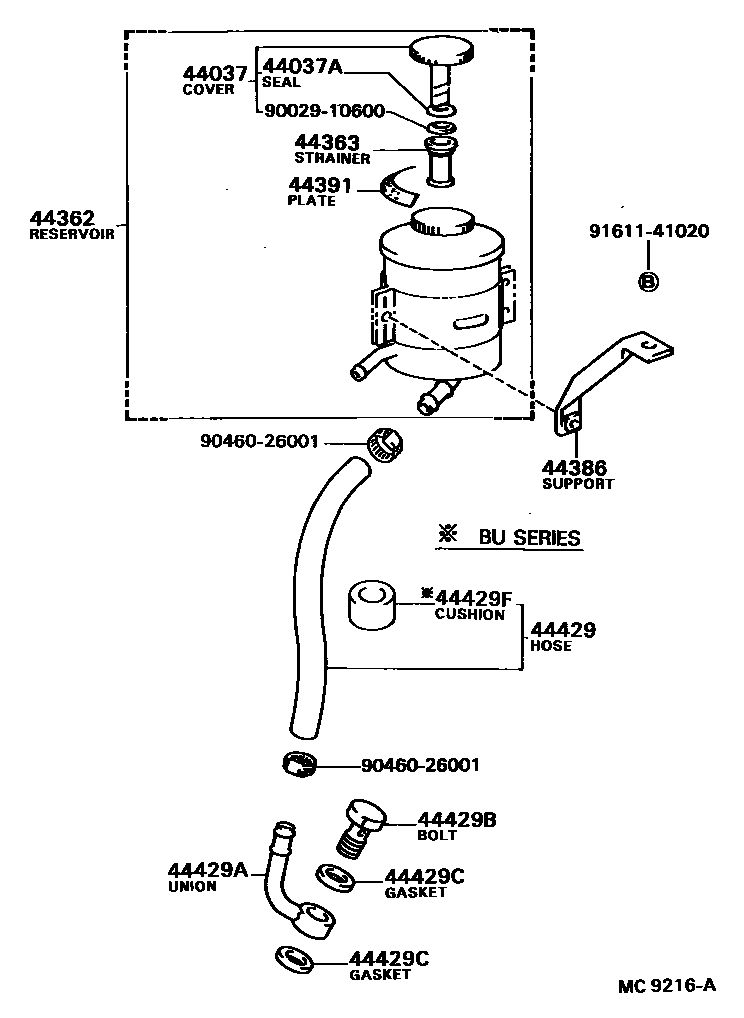

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

44037COVER SUB-ASSY, OIL RESERVOIR

main44037-36041iBU36,HU40,50..ARL198204-198408

sub44037-36080

44037ASEAL, DUST(FOR OIL RESERVOIR COVER)

main90029-20701iBU36,HU40,50..ARL198204-198408

44362RESERVOIR, OIL(FOR VANE PUMP)

main44360-36031iBU36..ARL198304-198408

main44360-36050iHU40,50..ARL198204-198408

sub44360-36070

44363STRAINER, OIL(FOR VANE PUMP)

main44363-36040iBU36,HU40,50..ARL198204-198408

44386BRACKET(FOR VANE PUMP OIL RESERVOIR)

main44386-36020iBU36..ARL198304-198408

main44386-36050iHU40,50..ARL198204-198408

44391PLATE, POWER STEERING OIL RESERVOIR CAUTION

main44391-30010iHU40,50..ARL198204-198408

main44391-36010iBU36..ARL198304-198408

sub44391-36020

44429HOSE, RESERVOIR TO OIL PUMP

main44348-36012iBU36..ARL198304-198408

main44348-36060iHU40,50..ARL198204-198408

sub44348-36170

44429AUNION(FOR RESERVOIR TO OIL PUMP)

main90405-16004iHU40,50..ARL198204-198408

main90405-16006iBU36..ARL198304-198408

44429BBOLT, UNION(FOR RESERVOIR TO OIL PUMP UNION)

main90401-22003iBU36,HU40,50..ARL198204-198408

44429CGASKET(FOR RESERVOIR TO OIL PUMP UNION)

main90430-22001iBU36,HU40,50..ARL198204-198408

44429FCUSHION(FOR RESERVOIR TO OIL PUMP HOSE)

main90540-22001iBU36..ARL198304-198408

9002910600

main90029-10600

9046026001

main90460-26001

9161141020

main91611-41020

14 parts on this diagram · 2 diagrams in section
