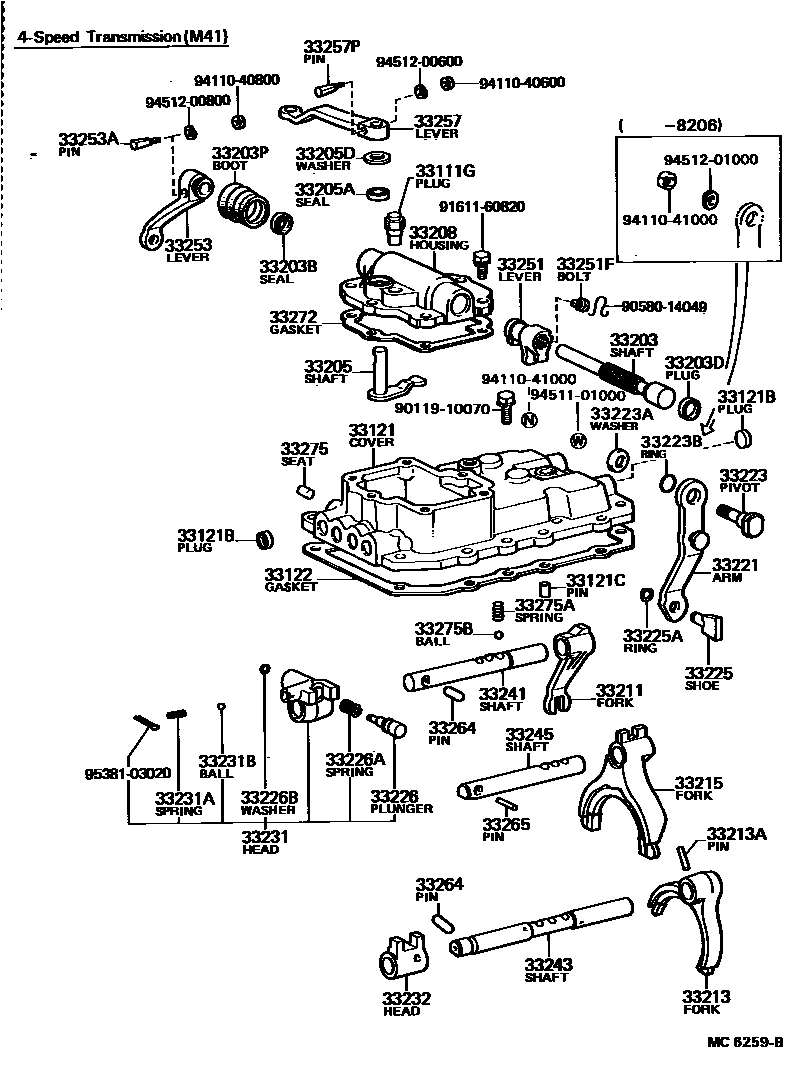

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1 0003 1 0004 1

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03033iBU20,RU20..WT..(ARL,GEN)..IV3197708-198204

DUMP SPEC

main90930-03033iBU25,HU30,RU25197708-198008

main90930-03065iBU20,30,JU20,RU20,30197708-198204

main90930-03075iBU2#,3#,40,HU40,50,RU2#,30198204-198212

main90930-03085iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198212-198401

main90930-03090iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198401-198411

33121COVER, MANUAL TRANSMISSION CASE

main33121-36040iBU25,HU30,RU25197708-198008

main33121-36040iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33121-36070iRU20,30..EUR197904-198408

main33121-36080iBU20,30,RU25;RU20,30..ARL,GEN197708-198411

33121BPLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER)

main90331-10001iRU20,30..4F,4H197712-198408

OD=10

sub96411-41000

main90331-16050iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

OD=16

sub96411-11600

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

L=14,OD=10

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-36011iBU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33122-36011iBU25,HU30,RU25197708-198008

main33122-36020iBU20,30,RU2#,30197708-198411

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-36012iBU25,HU30,RU25197708-198104

main33261-36012iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33261-36040iBU20,30,JU20,RU20,30197708-198411

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90312-17001iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33203DPLUG, TIGHT(FOR SHIFT LEVER SHAFT)

main90331-20001iBU20,30,JU20,RU20,30197712-197906

sub90331-20044

main90331-20044iBU20,30,RU2#,30197906-198411

main96411-12000iBU20,30,JU20,RU20,30197708-197712

sub96411-42000

main96411-12500iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

sub96411-42500

main96411-12500iBU25,HU30,RU25197708-198008

sub96411-42500

33203PBOOT, DUST(FOR SHIFT LEVER SHAFT)

main33531-36020iBU20,30,JU20,RU20,30197708-198411

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-36031iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33205-36031iBU25,HU30,RU25197708-198008

main33205-36050iBU20,30,JU20,RU20,30197708-198411

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13151iBU2#,30,HU30,JU20,RU2#,30197708-197912

main94612-11300iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50197912-198411

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33271-36041iBU25197812-198204

TILT CAB,DUMP SPEC

main33271-36041iBU20..ARL..IV3197803-198204

TILT CAB

main33271-36041iRU20..5H..WT..IV3197708-197812

DUMP SPEC

main33271-36041iHU30..TB197708-198204

main33271-36051iHU30..TS197708-198204

main33271-36051iBU20..5H..WT..GEN..IV3197708-198204

DUMP SPEC

main33271-36060iRU20,30..(4F,4H)..WT197912-198008

TILT CAB

main33271-36060iBU20,30,RU2#,30198008-198411

W/NEUTRAL START SWITCH

main33271-36070iBU20,30,JU20,RU20,30197708-198408

sub33271-36060

sub90341-16013

main33271-36090iBU23,25,36,40,HU40,50,WU40,50198204-198408

TILT CAB

main33271-36090iBU23,25,36,40,HU40,50,WU40,50198204-198408

TILT CAB,DUMP SPEC

main33271-36090iBU32..TB198204-198302

main33271-36100iBU32..TS198204-198408

DUMP SPEC

sub33271-36090

sub90341-16013

33211FORK, REVERSE SHIFT

main33211-36011iBU25,HU30,RU25197708-198008

main33211-36011iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33211-36020iBU20,30,JU20,RU20,30197708-198411

33213FORK, 1ST & 2ND SHIFT

main33212-36011iBU20,30,JU20,RU20,30197708-198411

main33212-36020iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33212-36020iBU25,HU30,RU25197708-198008

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05016iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

L=25.4-25.5

main90254-05045iBU20,RU20..WT..(ARL,GEN)..IV3197708-198204

L=44.5-45.5,DUMP SPEC

main90254-05045iBU25,HU30,RU25197708-198204

L=44.5-45.5,5TH SHIFT FORK

33215FORK, 3RD & 4TH SHIFT

main33213-36020iBU20,30,JU20,RU20,30197708-198411

main33213-36030iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33213-36030iBU25,HU30,RU25197708-198008

33221ARM, REVERSE SHIFT

main33201-36030iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33201-36030iBU25,HU30,RU25197708-198008

main33201-36040iBU20,30,RU2#,30197708-198411

33223PIVOT, SHIFT ARM

main33223-36010iBU20,30,RU2#,30197708-198206

sub33223-36020

main33223-36020iBU25,31,32,40,HU40,50198204-198206

DUMP SPEC

main33223-36020iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198206-198411

33223AWASHER(FOR SHIFT ARM PIVOT)

main90201-10045iBU25,31,32,40,HU40,50198204-198206

DUMP SPEC

sub90201-10092

main90201-10045iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198206-198407

sub90201-10092

main90201-10092iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198407-198411

33223BRING, O(FOR SHIFT ARM PIVOT)

main96711-19010iBU20..WT..(ARL,GEN)..IV3198204-198206

DUMP SPEC

main96711-19010iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198206-198411

33225SHOE, SHIFT ARM

main33225-36030iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)

main90520-08098iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33226PLUNGER, REVERSE SHIFT RETURN

main33226-36011iBU25,HU30,RU25197708-198008

main33226-36011iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33226-36020iBU20,30,JU20,RU20,30197708-198411

33226ASPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER)

main90501-16029iBU20,30,RU2#,30197708-198411

main90501-16051iBU20,RU20..WT..(ARL,GEN)..IV3197909-198408

DUMP SPEC

main90501-16750iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-197909

DUMP SPEC

main90501-16750iBU25,HU30,RU25197708-197909

33226BWASHER, TYPE C(FOR REVERSE SHIFT RETURN PLUNGER)

main90213-06001iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33231HEAD, REVERSE SHIFT

main33202-36020iRU20,30..4F,4H197708-198408

main33202-36030iBU20,30,JU20,RU20,30..5F,5H197708-198411

main33202-36040iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33202-36040iBU25,HU30,RU25197708-198008

33231ASPRING, REVERSE SHIFT RESTRICT

main90501-09031iBU20..WT..(ARL,GEN)..IV3198204-198408

DUMP SPEC

main90501-09031iBU25,31,32198109-198204

main90501-12019iBU20,30,JU20,RU20,30197708-198411

main90501-14396iBU25,HU30,RU25197708-197909

main90501-14396iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-197909

DUMP SPEC

33231BBALL, REVERSE SHIFT RESTRICT

main90360-06004iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33232HEAD, 1ST & 2ND SHIFT

main33232-36020iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33232-36020iBU25,HU30,RU25197708-198008

main33232-36040iBU20,30,JU20,RU20,30197708-198411

33241SHAFT, REVERSE SHIFT FORK

main33241-36021iRU20,30..4F,4H197708-198411

main33241-36030iBU23,25,31,32,36,40,HU30,40,50,WU40,50197708-198408

DUMP SPEC

main33241-36030iBU25,HU30,RU25197708-198008

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-36030iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

sub33242-36031

main33242-36030iBU25,HU30,RU25197708-198008

sub33242-36031

main33242-36040iBU20,30,JU20,RU20,30197708-198411

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-36020iBU20,30;RU20,30..ARL,GEN197708-198411

main33243-36031iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33243-36031iBU25,HU30,RU25197708-198008

main33243-36040iRU20,30..EUR197904-198408

33251LEVER, SHIFT & SELECT

main33251-36013iBU23,25,31,32,36,40,HU30,40,50,WU40,50197708-198408

DUMP SPEC

main33251-36013iBU25,HU30,RU25197708-198008

main33251-36030iBU20,30,RU2#,30198008-198411

W/NEUTRAL START SWITCH

main33251-36050iBU20,30,RU2#,30197708-198411

sub33251-36030

33251FPIN OR BOLT (FOR SHIFT & SELECT LEVER)

main33218-35010iBU20,30,JU20,RU20,30197708-198411

33253LEVER, SHIFT OUTER, NO.1

main33253-36041iBU25,HU30,RU25197708-198008

main33253-36041iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33253-36050iBU20,30,JU20,RU20,30197708-198411

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33282-57010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33257LEVER, SELECT OUTER

main33257-36040iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33257-36040iBU25,HU30,RU25197708-198008

main33257-36050iBU20,30,JU20,RU20,30197708-198411

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

OD=6,P=1.0

main33282-36010iBU20,30,JU20,RU20,30197708-197912

RED PAINT

main33282-36020iBU20,30,JU20,RU20,30197708-197912

YELLOW PAINT

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90361-10008iBU20,30,RU2#,30197708-198411

main90361-10037iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

L=17.9

main90361-10037iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

L=17.9,DUMP SPEC

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05034iBU2#,3#,40,HU30,40,50,JU20,RU2#,30197708-198207

main90361-05001iBU2#,3#,40,HU40,50,RU2#,30,WU40,50198207-198411

L=13

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-36011iBU25,HU30,RU25197708-198008

main33272-36011iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33272-36020iBU20,30,RU2#,30197708-198411

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90250-10215iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

L=9,OD=9

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14237iBU20,30,RU2#,30197708-198411

L=16.1

main90501-14772iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main90501-14772iBU25,HU30,RU25197708-198008

33275BBALL, SHAFT DETENT

main90360-10003iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

9011910070

main90119-10070

9058014049

main90580-14049

9161160820

main91611-60820

9411040600

main94110-40600

9411040800

main94110-40800

9411041000

main94110-41000

9451101000

main94511-01000

9451200600

main94512-00600

9451200800

main94512-00800

9451201000

main94512-01000

9538103020

main95381-03020
