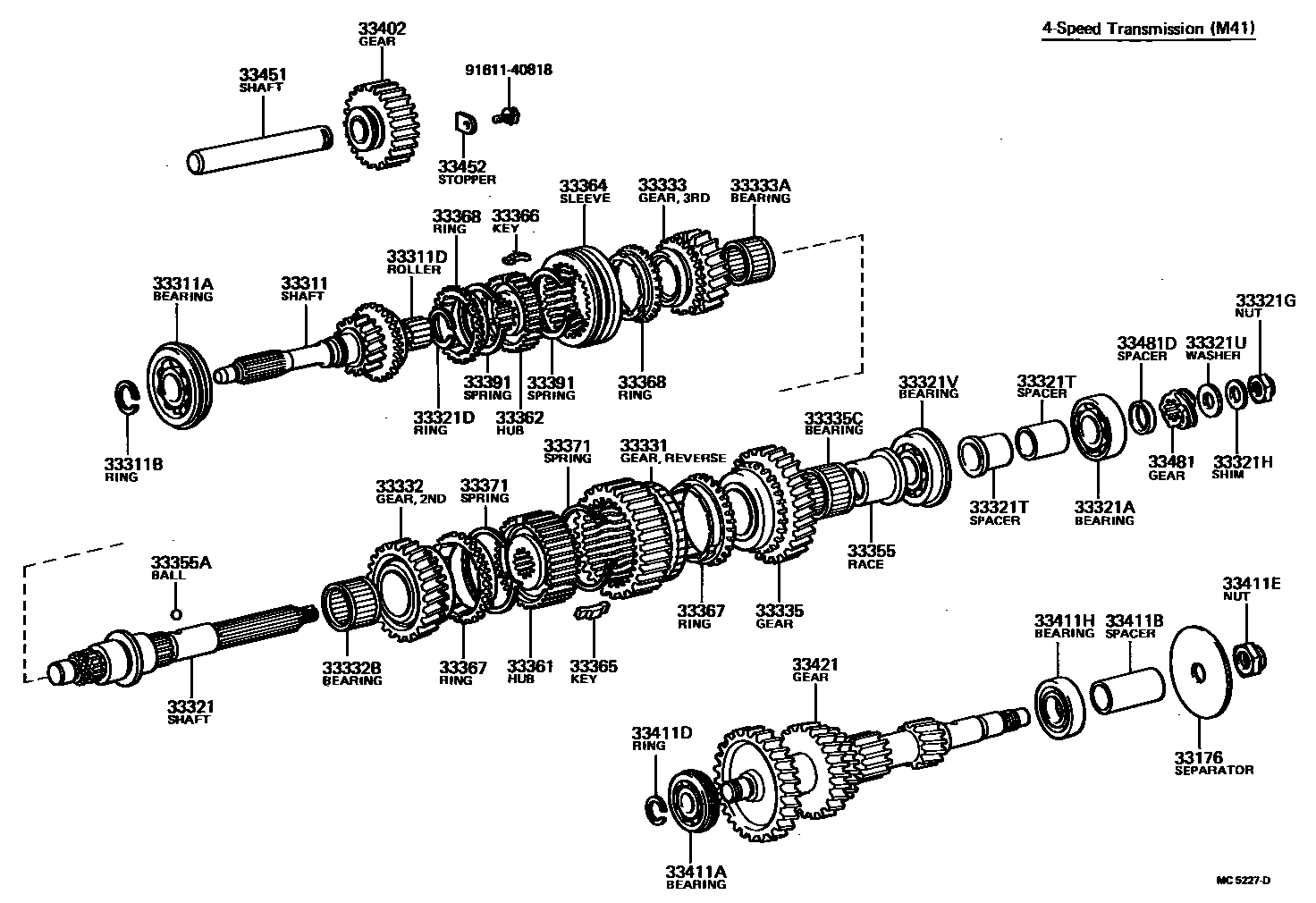

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1 0004 1

33176SEPARATOR, MANUAL TRANSMISSION OIL, NO.1

main33176-36010iRU20,30..4F,4H197708-198408

33311SHAFT, INPUT

main33311-36032iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33311-36032iBU25,RU25197803-198008

main33311-36041iHU30,40,50197708-198408

main33311-36060iBU20,30,JU20,RU20,30197708-198008

sub33311-36061

main33311-36061iBU20,30,RU2#,30198008-198110

sub33311-36062

main33311-36062iBU20,30,RU2#,30198110-198411

main33311-36090iWU40,50198304-198408

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-35002iBU20,30,JU20,RU20,30197708-198008

main90363-35002iRU20..4H198008-198408

RADIAL BALL BEARING

main90363-40004iBU20,RU20..WT..(ARL,GEN)..IV3197708-198005

DUMP SPEC

sub90363-40018

main90363-40004iBU25,HU30,RU25197708-198005

sub90363-40018

main90363-40018iBU25,31,32,HU30198005-198204

DUMP SPEC

main90365-35001iBU20,30,RU2#,30..5F,5H198110-198411

CYLINDRICAL ROLLER BEARING

main90365-40002iBU20..TS..WT..(ARL,GEN)..IV3198204-198408

DUMP SPEC

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-33107iBU20,30,RU2#,30197708-198411

T=2.30-2.35,MARK 11,T=2.30-2.35

main90520-33108iBU20,30,JU20,RU20,30197708-198411

T=2.40,MARK 13,T=2.40-2.45

main90520-33109iBU20,30,RU2#,30197708-198411

T=2.50,MARK 15,T=2.50-2.55

main90520-33132iBU20,30,JU20,RU20,30197708-198411

T=2.35-2.40,MARK 12,T=2.35-2.40

main90520-33133iBU20,30,JU20,RU20,30197708-198411

T=2.45,MARK 14,T=2.45-2.50

main90520-33134iBU20,30,JU20,RU20,30197708-198411

T=2.55,MARK 16,T=2.55-2.60

main90520-36015iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

T=3.31-3.42,T=3.31-3.42,DUMP SPEC

main90520-36015iBU23,25,31,32,36,40,HU30,40,50,WU40,50197708-198408

T=3.31-3.42,T=3.31-3.42

main90520-36016iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

T=3.20-3.31,T=3.20-3.31,DUMP SPEC

main90520-36016iBU25,HU30,RU25197708-198408

T=3.20-3.31,T=3.20-3.31

33311DBEARING, INPUT SHAFT

main90361-06049iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33321SHAFT, OUTPUT

main33321-36040iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198006

DUMP SPEC

main33321-36040iBU25,HU30,RU25197708-198006

main33321-36041iBU20,RU20..WT..(ARL,GEN)..IV3198006-198204

DUMP SPEC

main33321-36050iBU20,30,JU20,RU20,30197708-198006

main33321-36051iBU20,30,RU2#,30198006-198207

main33321-36052iBU20,30,RU2#,30198207-198411

main33321-36060iBU23,25,31,32,36,40,HU40,50,WU40,50198204-198408

DUMP SPEC

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90363-32011iBU20,30,RU2#,30198006-198411

main97103-06207iBU20..TS..WT..(ARL,GEN)..IV3198204-198408

DUMP SPEC

main97103-06232iBU2#,30,HU30,JU20,RU2#,30197708-197912

sub97104-06232

main97104-06232iBU25,31,32,HU30198006-198204

DUMP SPEC

main97104-06232iBU2#,30,HU30,RU2#,30197912-198006

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-36250iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=2.40-2.45,T=2.40-2.45

main90520-36251iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=2.45-2.50,T=2.45-2.50

main90520-36252iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=2.50-2.55,T=2.50-2.55

main90520-36253iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=2.55-2.60,T=2.55-2.60

main90520-36254iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=2.60-2.65,T=2.60-2.65

main90520-36255iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

T=2.65-2.70,T=2.65-2.70

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90179-20001iBU20,30,RU2#,30198008-198411

main90179-20061iBU2#,30,HU30,JU20,RU2#,30197708-198008

main90179-22005iBU23,25,31,32,36,40,HU40,50,WU40,50198204-198408

DUMP SPEC

33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)

main90564-21143iBU20,30,JU20,RU20,30197708-197804

33321TSPACER (FOR OUTPUT SHAFT)

main90560-32002iRU20,30..4F,4H197708-198006

FR

main90560-32003iBU20,30,RU2#,30..5F,5H198006-198411

main90560-32003iRU20,30..4F,4H198006-198408

FR

main90560-32442iBU25,31,32,HU30197708-198204

DUMP SPEC

main90560-32442iBU25,HU30,RU25197708-198008

main90560-35006iBU23,25,31,32,36,40,HU40,50,WU40,50198204-198408

DUMP SPEC

main90561-32001iRU20,30..4F,4H197708-198408

RR

33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)

main90201-20010iBU2#,3#,HU30,RU2#,30198008-198411

main90201-20479iBU2#,30,HU30,JU20,RU2#,30197708-198008

sub90201-20010

main90201-22005iBU23,25,31,32,36,40,HU40,50,WU40,50198204-198408

DUMP SPEC

main90363-35018iBU20,30198408-198411

33321VBEARING (FOR OUTPUT SHAFT CENTER)

main90363-35011iBU20,30,RU20,30198006-198408

main90363-35018iBU20,30198408-198411

main90363-40004iBU20,RU20..WT..(ARL,GEN)..IV3197708-198005

DUMP SPEC

sub90363-40018

main90363-40004iBU25,HU30,RU25197708-198005

sub90363-40018

main90363-40018iBU25,HU30,RU25198005-198408

DUMP SPEC

main97153-06307iBU20,30,JU20,RU20,30197708-198006

sub90363-35021

33331GEAR, REVERSE

main33331-36024iBU20,30,RU2#,30197708-198411

33332GEAR, 2ND

main33332-36012iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33332-36012iBU25,HU30,RU25197708-198008

main33332-36020iBU20,30,JU20,RU20,30197708-198411

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-44065iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main90364-44065iBU25,HU30,RU25197708-198008

main90364-46003iBU20,30,RU2#,30198208-198411

main90364-46053iBU20,30,RU2#,30197708-198208

sub90364-46003

33333GEAR, 3RD

main33333-36013iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main33333-36013iBU25,HU30,RU25197708-198008

main33333-36021iBU20,30,RU2#,30197708-198411

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-43001iBU20,30,RU2#,30198211-198411

NSK

sub90364-43004

main90364-43003iBU20,30,RU2#,30198208-198211

NSK

sub90364-43001

main90364-43004iBU20,30,RU2#,30198208-198411

KOYO

main90364-43042iBU20,30,RU2#,30197708-198208

sub90364-43004

33335GEAR, 1ST

main33335-36042iBU20,RU20..WT..(ARL,GEN)..IV3197708-198008

DUMP SPEC

main33335-36042iBU25,HU30,RU25197708-198008

main33335-36050iBU20,30197708-198411

main33335-36060iRU2#,30197708-198408

main33335-60020iBU20..TS..WT..(ARL,GEN)..IV3198008-198408

DUMP SPEC

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-44065iBU20..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

main90364-44065iBU25,HU30,RU25197708-198008

main90364-46003iBU20,30,RU2#,30198208-198411

main90364-46053iBU20,30,JU20,RU20,30197708-198208

sub90364-46003

33355RACE, 1ST GEAR BEARING INNER

main33355-36010iBU20,30,JU20,RU20,30197708-198411

33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK

main90360-06004iBU20,25,30,31,32,HU30,JU20,RU2#,30197708-198411

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-36010iBU20,30,JU20,RU20,30197708-198411

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-36021iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-36051iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

sub33364-60010

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-36010iBU20,30,RU2#,30197708-198411

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-36020iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33367RING, SYNCHRONIZER, NO.1

main33367-36030iBU20,30,RU2#,30197708-198411

2ND

main33367-40012iBU20,30,RU2#,30197708-198411

1ST

33368RING, SYNCHRONIZER, NO.2

main33368-20012iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-36020iBU20,30,RU2#,30197708-198411

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-20010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-36021iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198204

DUMP SPEC

main33402-36021iBU25,HU30,RU25197708-198008

main33402-36030iBU20,30,RU2#,30197708-198411

main33402-36050iBU23,25,31,32,36,40,HU40,50,WU40,50198204-198408

DUMP SPEC

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90363-30001iBU20,30,JU20,RU20,30197708-198408

main90365-30004iBU20,30,RU2#,30..5F,5H197712-198411

main90365-32002iBU25,HU30,RU25197708-198008

main90365-32002iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

DUMP SPEC

33411BSPACER(FOR COUNTER GEAR BEARING)

main90560-30001iRU20,30..4F,4H197708-198408

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-28246iBU20,30,RU2#,30197708-198411

T=1.90-1.95,MARK E,T=1.9

main90520-28248iBU20,30,RU2#,30197708-198411

T=2.00-2.05,MARK F,T=2.0

main90520-28249iBU20,30,JU20,RU20,30197708-198411

T=2.10-2.15,MARK G,T=2.1

main90520-30214iBU23,25,31,32,36,40,HU30,40,50,WU40,50197708-198408

T=2.05,MARK 0,T=2.05-2.10

main90520-30214iBU20,RU20..5H..WT..(ARL,GEN)..IV3197708-198408

T=2.05,MARK 0,T=2.05-2.10,DUMP SPEC

main90520-30216iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

T=2.15,MARK 2,T=2.15-2.25,DUMP SPEC

main90520-30216iBU20..TS..WT..(ARL,GEN)..IV3197708-198408

T=2.15,MARK 2,T=2.15-2.25

main90520-30218iBU25,HU30,RU25197708-198408

T=2.25,MARK 4,T=2.25-2.30

main90520-30218iBU20,RU20..WT..(ARL,GEN)..IV3197708-198408

T=2.25,MARK 4,T=2.25-2.30,DUMP SPEC

33411ENUT(FOR COUNTER GEAR SHAFT)

main90179-26001iBU20,30,JU20,RU20,30197708-197906

sub90179-26002

main90179-26002iBU20,30,RU2#,30197906-198411

main90179-26002iBU23,25,31,32,36,40,HU40,50,WU40,50198204-198408

DUMP SPEC

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90364-22003iBU20,30,JU20,RU20,30..5F,5H197708-198411

main90365-30014iRU20,30..4F,4H197708-198408

main90365-32010iBU20..WT..(ARL,GEN)..IV3197708-198204

DUMP SPEC

main90365-32010iBU25,HU30,RU25197708-198008

main90365-40001iBU23,25,31,32,36,40,HU40,50,WU40,50198204-198408

DUMP SPEC

33421GEAR, COUNTER

main33411-36040iBU20,RU20..WT..(ARL,GEN)..IV3197708-198008

DUMP SPEC

main33411-36040iBU25,HU30,RU25197708-198008

main33411-36050iJU20,RU20,30197708-197912

sub33411-36051

main33411-36051iRU2#,30197912-198408

main33411-36060iBU20,30197708-197912

sub33411-36061

main33411-36061iBU20,30197912-198411

main33411-36070iBU25,31,32,HU30198008-198204

DUMP SPEC

main33421-36050iBU20..TS..WT..(ARL,GEN)..IV3198204-198408

DUMP SPEC

33451SHAFT, REVERSE IDLER GEAR

main33451-36022iBU25,31,32,HU30197708-198204

DUMP SPEC

main33451-36022iBU25,HU30,RU25197708-198008

main33451-36030iBU20,30,RU2#,30197708-198411

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-36020iBU20,30,RU2#,30197708-198310

main33452-36030iBU20,30,RU2#,30198310-198411

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-36050iRU20..ST197708-198006

N=4

main33481-36050iRU30..EUR197904-197912

N=4,DRIVEN GEAR N=18

main33481-36050iJU20;BU2#,30,HU30..WT;RU20..WT..(EUR,GEN)197708-197912

N=4,DRIVEN GEAR N=17

main33481-36060iBU20,JU20..ST197708-198006

N=5

main33481-36070iRU2#..WT;RU30..ARL,GEN197708-197912

N=4

main33481-36080iBU20,30,RU20,30..WT198006-198411

N=4

main33481-36080iBU25198008-198204

N=4,DUMP SPEC

main33481-36090iBU20..WT..EUR198006-198408

N=5

main33481-36090iBU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP198006-198411

N=4

main33481-36110iBU20..TS..WT..(ARL,GEN)..IV3198204-198408

N=4

main33481-36110iBU20..TS..WT..(ARL,GEN)..IV3198204-198408

N=4,DUMP SPEC

main33481-36120iBU23,31,32,36,HU40,50198204-198408

N=5

33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)

main33487-36020iBU25,HU30,RU25198006-198204

DUMP SPEC

main33487-36020iBU2#,30,HU30,JU20,RU2#,30197708-198006

main33487-36040iBU20,30,RU2#,30198006-198411

main33487-36050iBU20..TS..WT..(ARL,GEN)..IV3198204-198408

DUMP SPEC

9161140818

main91611-40818

43 parts on this diagram · 4 diagrams in section
