SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29016iJU20;BU20..RHD..ST197708-197912

N=19,DRIVE GEAR N=5

main33403-29016iHU30;BU20..ST197912-198006

N=19

main33403-29025iRU20..ST197708-197912

N=18,DRIVE GEAR N=4

main33403-29025iRU20..4F..IV3;RU20..(5F,5H)..WT;RU20..VSG..(5F,5H);RU20..(T1,T3,TW1,VSP)..(4H,5F,5H)..ST197912-198006

N=18

main33403-29035iRU20..EUR..IV3;RU2#,30..WT..(ARL,GEN)197708-197912

N=19,DRIVE GEAR N=4

main33403-29045iHU30;BU20..ST198006-198008

N=19

main33403-39016iBU20..ST197708-198006

N=18,DRIVE GEAR N=5

main33403-39045iBU20,30..WT197912-198006

N=17,MARK 17:4,N=17,DRIVE GEAR,N=4

main33403-39045iJU20197708-197912

N=17,MARK 17:4,N=17,DRIVE GEAR N=4

main33403-39045iBU20,30..WT197912-198006

N=17,MARK 17:4,N=17

main33403-39055iRU20..ST197708-198006

N=16,DRIVE GEAR N=4

main33403-39055iRU20..LHD..WT..GEN197912-198006

N=16

main33482-29045iBU20..BUS;BU20..T3..ST;BU20,30..T1,T2,VSG,VSP198008-198411

N=19,MARK 19:5,N=19

main33482-29055iBU20..EUR198204-198408

N=17,MARK 17:5,N=17

main33482-39085iHU30;BU20..ST198006-198411

N=18,MARK 18:5,N=18,DRIVE GEAR N=5

main33482-39095iRU20..ST198006-198008

N=16,MARK 16:4,N=16,DRIVE GEAR N=4

main33482-39095iBU2#..WT198006-198411

N=16,MARK 16:4,N=16

main33482-39105iBU20,30..WT198006-198411

N=17,MARK 17:4,N=17

main33482-39105iBU20,30..WT198006-198008

N=17,MARK 17:4,N=17,DRIVE GEAR,N=4

main33482-39115iRU2#,30..ARL,GEN198008-198408

N=18,MARK 18:4,N=18,DRIVE GEAR N=4

main33482-39115iRU25,30198006-198008

N=18,MARK 18:4,N=18

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iBU2#,30,HU30,JU20,RU2#,30197708-197811

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09017iBU2#,30,HU30,JU20,RU2#,30197708-197811

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-30040iBU2#,30,HU30,JU20,RU2#,30197811-198006

main33404-35010iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198006-198411

main33404-39016iBU2#,30,HU30,JU20,RU2#,30197708-197811

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197708-198411

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iBU2#,30,HU30,JU20,RU2#,30197708-197811

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iBU2#,30,HU30,JU20,RU2#,30197708-197811

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197811-198411

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBU2#,3#,40,HU30,40,50,RU2#,30,WU40,50198006-198411

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-35010iBU2#,30,HU30,JU20,RU2#,30197708-197811

main33485-36010iBU2#,3#,40,HU30,40,50,JU20,RU2#,30,WU40,50197811-198411

9161140610

main91611-40610

9318016012

main93180-16012

9451200600

main94512-00600

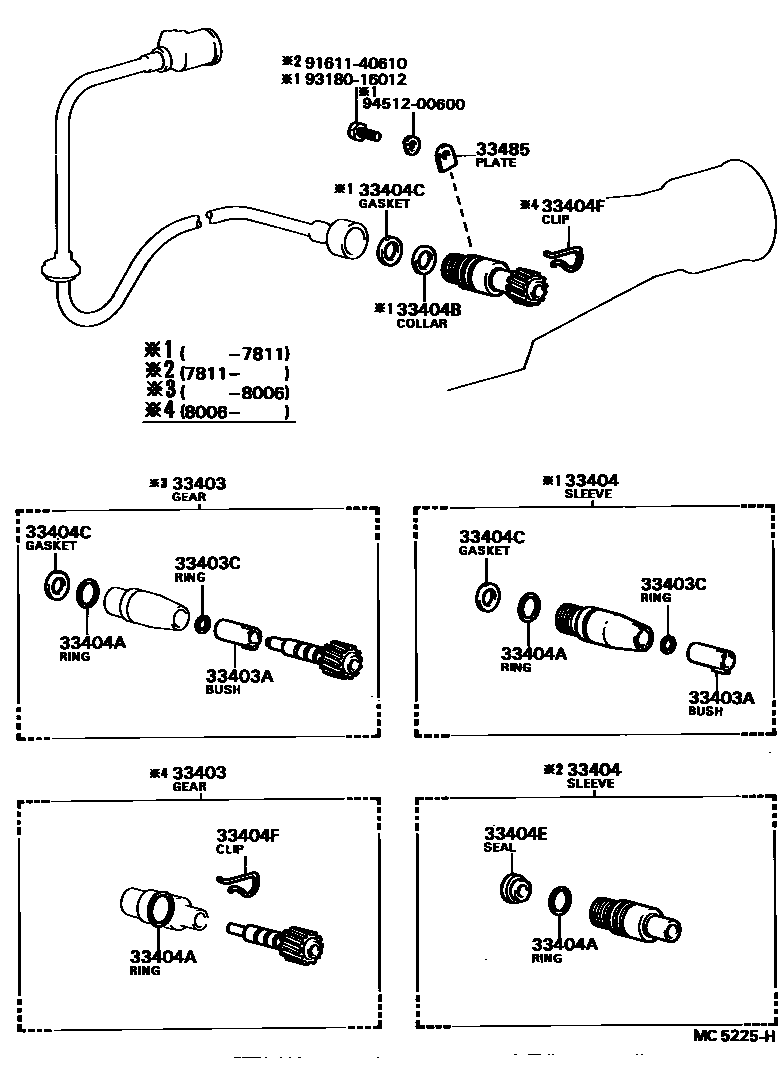

13 parts on this diagram · 1 diagram in section
