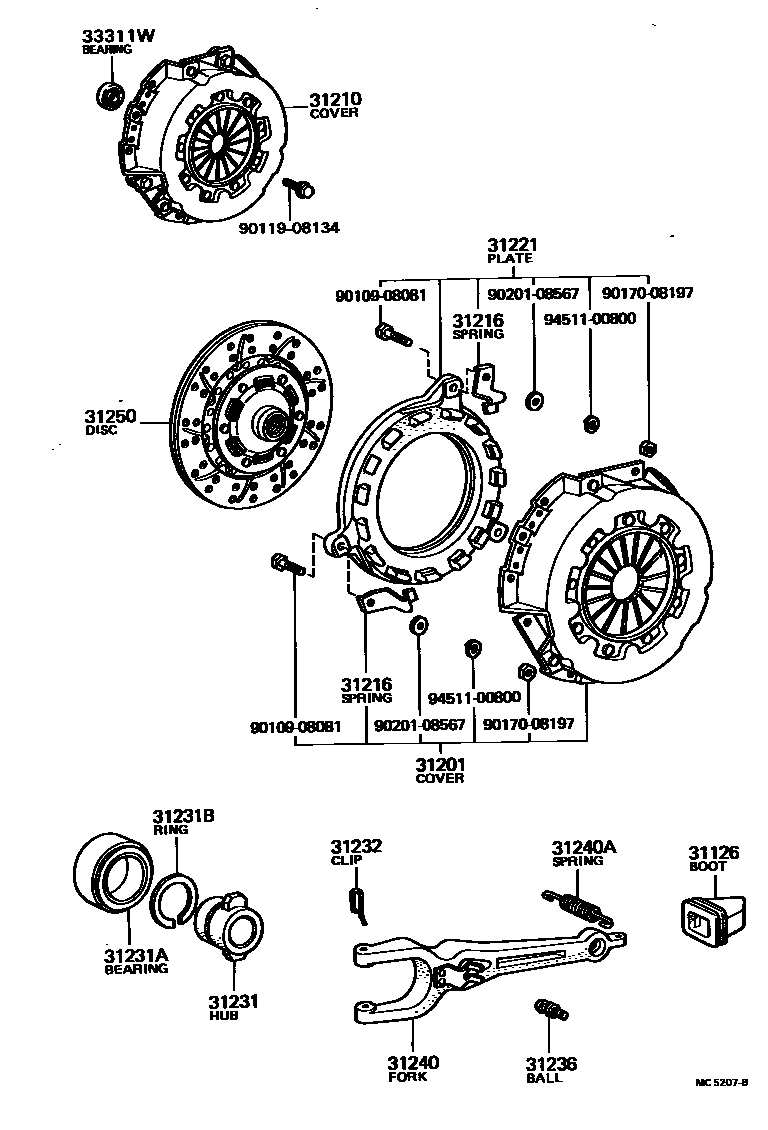

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20050iBU2#,3#,40,RU2#,30197708-198411

main31126-36010iJU20197708-197904

main31126-55020iHU30197708-198104

main31126-60021iHU40,50,WU40,50198204-198408

31201COVER SUB-ASSY, CLUTCH

main31201-29075iJU20197708-197904

sub31201-29076

main31201-29135iBU30..RHD..GHI..CBU198110-198408

INDONESIA SPEC

sub31210-25060

main31201-39075iRU2#,30197708-197907

sub31201-39076

main31201-39076iRU2#,30197907-198003

sub31201-39077

main31201-39077iRU2#,30198003-198305

sub31201-39078

main31201-39078iRU2#,30198305-198310

sub31210-14121

main31201-39085iBU2#,30197708-197804

sub31210-36072

main31201-39095iBU2#,30197804-197907

sub31201-39096

main31201-39096iBU2#,30197907-198003

sub31201-39097

main31201-39097iBU2#,30198003-198107

sub31210-36072

main31201-39115iBU2#,3#,40198008-198408

sub31210-36100

main31201-61010iHU30197708-198104

main31201-69027iHU40,50,WU40,50198204-198408

sub31210-60070

31210COVER ASSY, CLUTCH

main31210-14121iRU2#,30198311-198408

sub31210-14122

main31210-25060iBU30..RHD..GHI..CBU198110-198408

INDONESIA SPEC

sub31210-25061

main31210-36026iJU20197708-197903

sub31210-36027

main31210-36027iJU20197903-197904

sub31210-36028

main31210-36041iHU30197708-198104

main31210-36060iBU2#,30197708-197804

sub31210-36070

main31210-36070iBU2#,30197804-197907

sub31210-36071

main31210-36071iBU2#,30197907-198003

sub31210-36072

main31210-36072iBU2#,30198003-198107

sub31210-36073

main31210-36080iRU2#,30197708-197907

sub31210-36081

main31210-36081iRU2#,30197907-198003

sub31210-36082

main31210-36082iRU2#,30198003-198203

sub31210-36083

main31210-36083iRU2#,30198203-198305

sub31210-36084

main31210-36084iRU2#,30198305-198311

sub31210-14121

main31210-36090iBU2#,3#,40198008-198408

sub31210-36100

main31210-36100iBU20,30198408-198411

sub31210-36101

main31210-60042iHU40,50,WU40,50198204-198408

sub31210-60070

31216SPRING, CLUTCH RETRACTING

main31216-30010iJU20,RU2#,30197708-198310

main31216-36010iBU2#,3#,40197708-198408

main31216-60010iHU40,50,WU40,50198204-198408

31221PLATE, CLUTCH PRESSURE

main31221-36041iHU30197708-198104

main31221-39055iJU20197708-197903

sub31221-39056

main31221-39056iJU20197903-197904

sub31221-36025

main31221-39065iRU2#,30197708-198310

main31221-39075iBU2#,30197708-197804

sub31210-36100

main31221-39085iBU20,30..EUR197804-198107

sub31221-39145

main31221-39125iBU2#,3#..ARL,GEN,GHI198008-198408

sub31221-36090

main31221-69025iHU40,50,WU40,50198204-198408

sub31221-60020

31231HUB, CLUTCH RELEASE BEARING

main31231-30060iRU2#,30197708-197810

sub31231-30061

main31231-30061iRU2#,30197810-198008

main31231-30080iRU2#,30198008-198408

main31231-36050iJU20197708-197904

sub31231-36051

main31231-36060iBU2#,30197708-197903

sub31231-36061

main31231-36061iBU2#,30197903-198008

main31231-36062iBU2#,3#,40198008-198411

main31231-60050iHU40,50,WU40,50198204-198408

main31231-65010iHU30197708-198104

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40001iRU2#,30197708-198010

sub90363-40008

main90363-40003iJU20197708-197904

sub90363-40010

main90363-40008iRU2#,30198002-198008

main90363-40019iRU2#,30198010-198211

sub90363-40022

main90363-40022iRU2#,30198211-198408

main90363-45001iBU2#,3#197708-198110

sub90363-45002

main90363-45002iBU2#,3#,40198110-198411

main90363-52001iHU40,50,WU40,50198204-198408

main90363-52018iHU30197708-198104

31231BRING, SNAP(FOR CLUTCH RELEASE HUB)

main96152-00450iBU2#,30197708-198104

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-30010iBU2#,3#,40,JU20197708-198411

main31232-30020iRU2#,30197708-198408

main31232-60020iHU40,50,WU40,50198204-198408

31236BALL, RELEASE FORK

main31236-20040iBU2#,3#198008-198111

main31236-30030iRU2#,30197708-198408

main31236-30040iBU2#,3#,40198111-198411

main31236-36010iJU20197708-197904

main31236-55010iHU30197708-198104

main31236-60030iHU40,50,WU40,50198204-198408

31240FORK ASSY, CLUTCH RELEASE

main31204-20020iRU2#,30197708-198008

sub31204-26010

main31204-25010iBU2#,3#,40198111-198411

main31204-26010iRU2#,30198107-198408

main31204-36030iBU2#,30197708-198008

main31204-36031iBU2#,3#198008-198111

main31204-36040iJU20197708-197904

main31204-36050iRU2#,30198008-198107

sub31204-26010

main31204-55020iHU30197708-198104

main31204-60040iHU40,50198204-198303

sub31204-60041

main31204-60041iHU40,50,WU40,50198303-198408

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-16004iBU2#,3#,40,JU20,RU2#,30197708-198411

main90506-16475iHU30,40,50,WU40,50197708-198408

31250DISC ASSY, CLUTCH

main31250-36064iJU20197708-197710

sub31250-36065

main31250-36065iJU20197710-197904

sub31250-36066

main31250-36110iBU2#,30197708-197810

sub31250-36111

main31250-36111iBU2#,30197810-198002

sub31250-36112

main31250-36112iBU2#,30198002-198008

sub31250-36114

main31250-36113iBU2#,3#,40198008-198210

sub31250-60090

main31250-36120iHU30197708-198104

sub31250-36121

main31250-36130iRU2#,30197708-197805

sub31250-36131

main31250-36131iRU2#,30197805-198111

sub31250-17051

main31250-36150iHU40,50198204-198305

sub31250-36210

sub31250-60100

main31250-36160iBU30..RHD..GHI..CBU198110-198408

INDONESIA SPEC

sub31250-36161

main31250-36161iBU2#,3#,40198210-198408

sub31250-36230

main31250-36170iBU20,30198111-198411

sub31250-36171

main31250-36171iRU2#,30198311-198408

sub31250-36181

main31250-36200iWU40,50198304-198408

sub31250-36250

main31250-36210iHU40,50198305-198408

sub31250-36350

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBU2#,30,31,32,40198006-198411

6201 2NK

sub90363-12024

main90363-15004iHU30,40,50,WU40,50197904-198408

6202 2NK

main97120-06202iHU30197708-197904

6202 ZZ

main97143-06201iBU2#,30197708-198008

6201 VV C3

sub90363-12002

9010908081

main90109-08081

9011908134

main90119-08134

9017008197

main90170-08197

9020108567

main90201-08567

9451100800

main94511-00800

19 parts on this diagram · 5 diagrams in section
