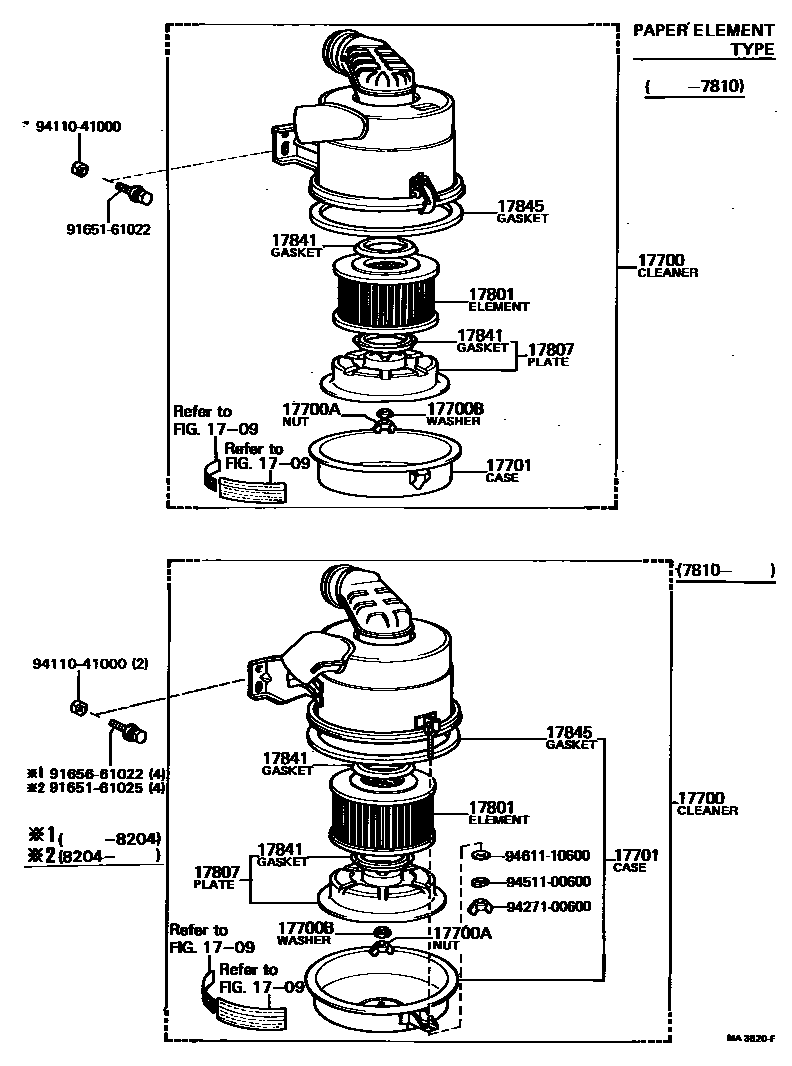

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0013 1 0014 1 0029 1

1709

17700CLEANER ASSY, AIR

main17700-44310i5R..RU20,30..RHD197708-197810

PAPER ELEMENT

main17700-44311i5R..RU20,30..RHD197810-197909

PAPER ELEMENT

sub17700-44312

main17700-44312i5R..RU20,30..RHD197909-198204

PAPER ELEMENT

sub17700-44314

main17700-44313i5R..RU20,30..RHD198204-198306

PAPER ELEMENT

sub17700-44314

main17700-44314i5R..RU20,30..RHD198306-198408

PAPER ELEMENT

sub17700-56164

main17700-44320i5R..RU20,30..LHD197708-197810

PAPER ELEMENT

main17700-44321i5R..RU20,30..LHD197810-197909

PAPER ELEMENT

sub17700-44322

main17700-44322i5R..RU20,30..LHD197909-198204

PAPER ELEMENT

sub17700-44323

main17700-44323i5R..RU20,30..LHD..GEN198204-198306

PAPER ELEMENT

sub17700-44324

main17700-44324i5R..RU20,30..LHD..GEN198306-198408

PAPER ELEMENT

sub17700-56173

main17700-44330i5R..RU25197803-197810

SCHNORKEL,PAPER ELEMENT

main17700-44331i5R..RU25197810-197909

SCHNORKEL,PAPER ELEMENT

sub17700-44332

main17700-44332i5R..RU25197909-198204

SCHNORKEL,PAPER ELEMENT

sub17700-44334

main17700-44333i5R..RU25198204-198306

SCHNORKEL,PAPER ELEMENT

sub17700-44334

main17700-44334i5R..RU25198306-198408

SCHNORKEL,PAPER ELEMENT

sub17700-56183

main17700-44340i5R..RU20,30..RHD..GEN197708-197810

OIL BATH

main17700-44341i5R..RU20,30..RHD..GEN197810-198002

OIL BATH

sub17700-56191

main17700-44350i5R..RU20,30..LHD197708-197810

OIL BATH

main17700-44351i5R..RU20,30..LHD..GEN197810-198002

OIL BATH

sub17700-56201

main17700-44430i5R..RU20,30..T3..GEN197810-197909

SCHNORKEL,PAPER ELEMENT

sub17700-44431

main17700-44431i5R..RU20,30..T3..GEN197909-198204

SCHNORKEL,PAPER ELEMENT

sub17700-44432

main17700-44432i5R..RU20,30..T3..GEN198204-198306

SCHNORKEL,PAPER ELEMENT

sub17700-44433

main17700-44433i5R..RU20,30..T3..GEN198306-198408

SCHNORKEL,PAPER ELEMENT

sub17700-56273

main17700-44440i5R..RU20,30..T3..GEN197810-198002

SCHNORKEL,OIL BATH

sub17700-56281

main17700-44530i5R..RU20,30..EUR198204-198408

sub17700-44531

main17700-47040iH..HU30..RHD197708-197810

PAPER ELEMENT

main17700-47041iH..HU30..RHD197810-197910

PAPER ELEMENT

sub17700-47042

main17700-47042iH..HU30..RHD197910-198104

PAPER ELEMENT

main17700-47050i2J..JU20197708-197810

PAPER ELEMENT

main17700-47051iH..HU30..LHD197810-198104

PAPER ELEMENT

main17700-47060iH..HU30..RHD..GEN197708-197810

OIL BATH

main17700-47061iH..HU30..RHD..GEN197810-198104

OIL BATH

sub17700-47062

main17700-47070iH..HU30..LHD197708-197810

OIL BATH

main17700-47071iH..HU30..LHD197810-198011

OIL BATH

sub17700-47072

main17700-47072iH..HU30..GEN198011-198104

OIL BATH

main17700-56160iB..BU20,30..RHD197708-197810

PAPER ELEMENT

sub17700-56161

sub17882-56041

main17700-56161iB..BU20,30..RHD197810-197910

PAPER ELEMENT

sub17700-56162

main17700-56162iB,3B..BU20,30,32..RHD197910-198204

PAPER ELEMENT

sub17700-56163

main17700-56163i3B..BU32..TS198204-198307

PAPER ELEMENT

sub17700-56164

main17700-56164i3B..BU32..ARL198307-198411

PAPER ELEMENT

main17700-56170iB..BU20,30..LHD197708-197810

PAPER ELEMENT

sub17700-56171

sub17883-56041

main17700-56171i2B..BU31..CBU;B..BU20,30..LHD197810-198204

PAPER ELEMENT

sub17700-56172

main17700-56172iB..BU20,30..LHD198204-198309

PAPER ELEMENT

sub17700-56173

main17700-56173iB..BU20,30..LHD198309-198408

PAPER ELEMENT

main17700-56180iB..BU25197803-197810

SCHNORKEL,PAPER ELEMENT

sub17700-56181

sub17882-56061

main17700-56181iB..BU25197810-198204

SCHNORKEL,PAPER ELEMENT

sub17700-56182

main17700-56182iB..BU25198204-198307

SCHNORKEL,PAPER ELEMENT

sub17700-56183

main17700-56183iB..BU25198307-198408

SCHNORKEL,PAPER ELEMENT

main17700-56190iB..BU20,30..RHD197708-197810

OIL BATH

sub17700-56191

sub17882-56041

main17700-56191i5R..RU20,30..RHD..GEN197810-198010

OIL BATH

sub17700-56192

main17700-56192iB..BU20,30..RHD..(GEN,GHI)198009-198411

OIL BATH

main17700-56200iB..BU20,30..LHD197708-197810

OIL BATH

sub17700-56201

sub17883-56041

main17700-56201iB..BU20,30..LHD197810-198010

OIL BATH

sub17700-56202

main17700-56202i5R..RU20,30..LHD..GEN198009-198408

OIL BATH

main17700-56210iB..BU25197803-197810

SCHNORKEL,OIL BATH

sub17700-56211

sub17882-56061

main17700-56211iB..BU25197810-198009

SCHNORKEL,OIL BATH

sub17700-56212

main17700-56212iB..BU25198009-198408

SCHNORKEL,OIL BATH

main17700-56270iB..BU20,30..T3..(ARL,GEN)197810-197912

SCHNORKEL,PAPER ELEMENT

sub17700-56271

main17700-56271iB,3B..BU20,30,32..T3..(ARL,GEN)197912-198204

PAPER ELEMENT

sub17700-56272

sub94110-41000

main17700-56272iB,2B,3B..BU20,30,31,32..T3..(ARL,GEN,GHI)..(CBU,IV3)198204-198307

SCHNORKEL PAPER ELEMENT

sub17700-56273

main17700-56273iB,2B,3B..BU20,23,30,31,32..T3..(ARL,GEN,GHI)198307-198411

SCHNORKEL PAPER ELEMENT

main17700-56280iB..BU20,30..T3..(ARL,GEN)197810-197912

SCHNORKEL,OIL BATH

sub17700-56281

main17700-56281i5R..RU20,30..T3..GEN197912-198010

SCHNORKEL,OIL BATH

sub17700-56282

main17700-56282iB,3B..BU20,30,32..T3..GEN198009-198204

SCHNORKEL,OIL BATH

sub17700-56283

sub94110-41000

main17700-56283i5R..RU20,30..T3..GEN198204-198411

SCHNORKEL,OIL BATH

main17700-56292i3B..BU36..RHD..CBU198302-198307

PAPER ELEMENT

sub17700-56293

main17700-56293i3B..BU36..RHD..CBU198307-198408

PAPER ELEMENT

main17700-58090i1W..WU40198204-198307

SCHNORKEL,PAPER ELEMENT

sub17700-58091

main17700-58091i3B..BU36,40198307-198408

SCHNORKEL,PAPER ELEMENT

main17700-58100i3B..BU36..LHD198304-198408

PAPER ELEMENT

main17700-68120i2H..HU40,50198204-198307

sub17700-68121

main17700-68121i2H..HU40,50198307-198408

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i2H..HU40,50198204-198408

SCHNORKEL TYPE

main94271-00800iH..HU30197708-198411

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-08004i2J..JU20197708-198411

sub90210-08015

17701CASE SUB-ASSY, AIR CLEANER

main17701-38070i5R..RU2#,30197708-197804

PAPER ELEMENT

sub17701-48071

main17701-44260i5R..RU2#,30197804-197810

PAPER ELEMENT

sub17701-56140

main17701-44261i5R..RU2#,30197810-197909

PAPER ELEMENT

sub17701-44262

main17701-44262iH..HU30197909-198204

PAPER ELEMENT

main17701-44263i5R..RU2#,30198204-198411

PAPER ELEMENT

main17701-48070i2J..JU20197708-197804

PAPER ELEMENT

sub17701-48071

main17701-56140iH..HU30197804-197810

PAPER ELEMENT

main17701-56141iH..HU30197810-197909

PAPER ELEMENT

sub17701-44262

main17701-68100i1W..WU40198204-198307

PAPER ELEMENT

sub17701-68101

main17701-68101i2H..HU40,50198307-198408

PAPER ELEMENT

main17702-44020i5R..RU20,30..GEN197708-198002

OIL BATH

sub17702-44021

main17702-44021iB..BU2#,30198002-198010

OIL BATH

sub17702-44022

main17702-44022iB,3B..BU2#,30,32..GEN,GHI198009-198411

OIL BATH

main17702-56031iB..BU2#,30197708-198003

OIL BATH

sub17702-44022

main17702-56032iH..HU30198003-198011

OIL BATH

sub17702-56033

main17702-56033iH..HU30198011-198104

OIL BATH

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-44070i5R..RU2#,30197708-198408

PAPER ELEMENT

sub17801-48011

main17801-48011iB,2B,3B..BU2#,3#197708-198204

PAPER ELEMENT

main17801-56010iH..HU30..GEN197708-198411

OIL BATH

main17801-56020iB,2B,3B..BU2#,3#198204-198411

PAPER ELEMENT

main17801-68020i3B..BU36,40198204-198408

SCHNORKEL,PAPER ELEMENT

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56010i5R..RU2#,30197708-198008

PAPER ELEMENT

sub17807-56011

main17807-56011i5R..RU20,30198008-198408

PAPER ELEMENT

main17807-68010i2H..HU40,50198204-198408

SCHNORKEL TYPE,PAPER ELEMENT

17841GASKET, FILTER ELEMENT

main17841-44030iB,2B,3B..BU2#,3#198008-198411

PAPER ELEMENT

main17841-56010iB..BU2#,30197708-198008

PAPER ELEMENT

sub17841-44030

main17841-56020iB,3B..BU2#,30,32..GEN,GHI197708-198411

OIL BATH

main17841-68010i3B..BU36,40198204-198408

SCHNORKEL,PAPER ELEMENT

17845GASKET, AIR CLEANER CAP

main17845-56020i2J..JU20197708-198411

main17845-68020i3B..BU36,40198204-198408

SCHNORKEL TYPE

sub17845-17010

9165161022

main91651-61022

9165161025

main91651-61025

9165661022

main91656-61022

9411041000

main94110-41000

9427100600

main94271-00600

9451100600

main94511-00600

9461110600

main94611-10600

16 parts on this diagram · 13 diagrams in section
