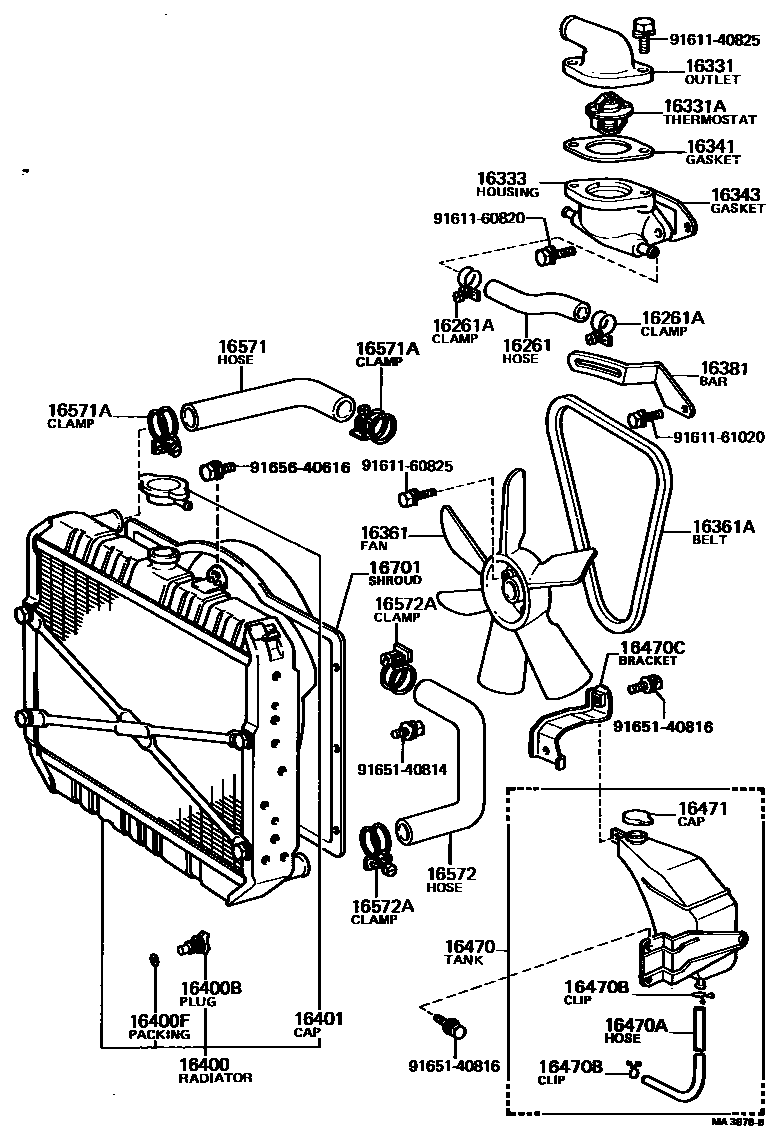

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

16261HOSE, WATER BY-PASS

main16261-44010i5R..RU2#,30197708-198408

main16261-48010i2J..JU20197708-197904

main16261-56011iB,2B,3B..BU2#,3#197708-198204

sub16261-56012

main16261-56012iB,2B,3B..BU2#,3#,40198204-198411

main90910-06014iH..HU30197708-198104

main99553-40090i2H..HU40,50198204-198309

sub99555-40090

main99555-40090i2H..HU40,50198309-198408

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90044-60053iB,2B,3B..BU2#,3#,40197708-198411

main96111-10330i2H..HU40,50198204-198408

main96112-10240i5R..RU2#,30197708-198408

main96112-10250i5R..RU2#,30198011-198102

main96112-10270iH..HU30197708-198104

16331OUTLET, WATER

main16331-44020i5R..RU2#,30197708-198408

main16331-44100i5R..RU20..EUR197904-198408

main16331-46010i2J..JU20197708-197904

main16331-56010iH..HU30197708-198104

main16331-56020iB,2B,3B..BU2#,3#,40198008-198411

main16331-68010i2H..HU40,50198204-198408

sub16331-68011

main16331-78010i1W..WU40,50198304-198408

16331ATHERMOSTAT

main90916-03026i2H..HU40,50198204-198408

*WAX 82-95,*WAX 82-95

main90916-03026iH..HU30197708-198104

*WAX 82-95,*WAX 82-95,FUJI-THOMSON

main90916-03034i5R..RU2#,30..ARL,GEN197708-198210

*WAX 82-95,FUJI-THOMSON

main90916-03036i5R..RU20,30..EUR198204-198210

*WAX 88-100,FUJI-THOMSON

sub90916-03040

main90916-03037i5R..RU2#,30197708-198210

*WAX 82-95,KUZEH

sub90916-03083

main90916-03039iB..BU2#,30197708-198010

*WAX 82-95,*WAX 82-95,NIHON THERMOSTAT

sub90916-03058

main90916-03040i5R..RU20,30..EUR198204-198210

*WAX 88-100,KUZEH

sub90916-03078

main90916-03050iH..HU30197904-198008

*WAX 88-100,FUJI-THOMSON

main90916-03054i5R..RU2#,30..ARL,GEN198210-198408

*WAX 82-95,*WAX 82-95,KUZEH

sub90916-03083

main90916-03055i5R..RU20,30..EUR198210-198408

*WAX 88-100,*WAX 88-100,KUZEH

sub90916-03078

main90916-03058iB,2B,3B..BU2#,3#198010-198204

*WAX 82-95,*WAX 82-95

sub90916-03066

main90916-03066iB,2B,3B..BU2#,3#,40198204-198411

*WAX 82-95,*WAX 82-95

sub90916-03077

main90916-03067i1W..WU40,50198304-198408

*WAX 82-95,*WAX 82-95

sub90916-03076

16333HOUSING, WATER OUTLET

main16303-78010i1W..WU40,50198304-198408

subS1630-11120

main16333-44012i5R..RU2#,30197708-198408

main16333-47011iH..HU30197708-198003

sub16333-47012

main16333-47012iH..HU30198003-198104

main16333-47020iH..HU30197904-198104

W/O THERMOSTAT

main16333-48011i2J..JU20197708-197904

main16333-56011iB..BU2#,30197708-197811

sub16333-56012

main16333-56012iB..BU2#,30197811-198008

sub16333-56020

main16333-56040iB,2B,3B..BU2#,3#198008-198204

main16333-56050iB,2B,3B..BU2#,3#,40198204-198411

main16333-68010i2H..HU40,50198204-198408

16341GASKET, WATER OUTLET

main16341-38010i5R..RU2#,30197809-198005

sub16341-38012

main16341-38011i5R..RU2#,30198205-198408

sub16341-38012

main16341-41010i5R..RU2#,30198005-198205

sub16341-38021

main16341-46010i2J..JU20197708-197904

sub16341-46011

main16341-49010i5R..RU2#,30197708-197809

sub16341-38010

main16341-51010iH..HU30197708-198104

sub16341-51011

main16341-56010iH..HU30197802-197811

sub16341-51010

main16341-56020iB,2B,3B..BU2#,3#,40198008-198411

sub16341-56021

main16341-68010i2H..HU40,50198204-198408

sub16341-68020

16343GASKET, WATER OUTLET HOUSING

main16343-44010i5R..RU2#,30197708-198408

sub16343-44011

main16343-46010i2J..JU20197708-197904

sub16343-46011

main16343-47010iH..HU30197708-198104

main16343-56012iB..BU2#,30197708-198008

sub16343-56020

main16343-56020iB,2B,3B..BU2#,3#,40198008-198411

sub16343-56022

main16343-68010i2H..HU40,50198204-198408

sub16343-68020

16361FAN

main16361-31030i5R..RU2#,30..ARL,GEN197708-198408

5 BLADES,OD=340

sub16361-31031

main16361-41050iB..BU20..EUR197708-198408

W/COUPLING,7 BLADES,OD=380

main16361-44040i5R..RU20,30..EUR198208-198408

6 BLADES,OD=360

main16361-47010iH..HU30197708-198411

6 BLADES,OD=410

main16361-56030iB..BU30..EUR197708-198408

6 BLADES,OD=380

main16361-56040iB..BU25;B..BU20,30..LHD..5F198204-198408

TROPICAL SPEC,OD=410

main16361-56040iB..BU2#,30..GEN197708-198408

6 BLADES,OD=410

main16361-56060i3B..BU36,40198204-198408

6 BLADES,OD=410

main16361-58010i3B..BU32198104-198408

7 BLADES,OD=430

main16361-78020i1W..WU40,50198304-198408

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02030iH..HU30197708-198104

main90916-02073i2J..JU20197708-197904

main90916-02131i1W..WU40,50198304-198408

sub90038-32013

main99322-00910i5R..RU2#,30197809-198408

12V 30A ALTERNATOR

sub99332-00910

main99322-00930i5R..RU2#,30..GEN197809-198408

12V 40A ALTERNATOR

main99323-01175iB..BU2#,30197807-197904

main99343-01065i2H..HU40,50198204-198408

sub99343-11065

main99343-01175iB..BU2#,30197904-198008

main99343-01195iB,2B,3B..BU2#,3#,40198008-198411

main99522-10911i5R..RU2#,30197708-197809

12V 30A ALTERNATOR

sub99322-00910

main99522-10934i5R..RU2#,30..GEN197708-197809

12V 40A ALTERNATOR

sub99322-00930

main99523-11176iB..BU2#,30197708-197807

sub99323-01175

16381BAR, FAN BELT ADJUSTING

main16381-44011i5R..RU2#,30..GEN197708-198408

12V 40A ALTERNATOR

main16381-44022i5R..RU2#,30197708-198408

12V 30A ALTERNATOR

main16381-47012iH..HU30197708-198104

main16381-48011i2J..JU20197708-197904

main16381-56020iB..BU2#,30197708-198008

main16381-56030iB,2B,3B..BU2#,3#,40198008-198411

main16381-68010i2H..HU40,50198204-198408

main16381-78010i1W..WU40,50198304-198408

16400RADIATOR ASSY

main16400-44150i5R..RU20,30197708-197801

main16400-44151i5R..RU2#,30197801-198408

sub16400-44152

main16400-44160i5R..RU20,30197708-197801

HOT SPEC

main16400-44161i5R..RU2#,30..GEN197801-198204

HOT SPEC

sub16400-44162

main16400-47041iH..HU30197708-197801

sub16400-47043

main16400-47042iH..HU30197801-198104

sub16400-47043

main16400-48061i2J..JU20197708-197801

sub16400-48063

main16400-48062i2J..JU20197801-197904

sub16400-48063

main16400-56040iB..BU20,30197708-197801

sub16400-56042

main16400-56041iB..BU30..EUR197801-198411

sub16400-56042

main16400-56060i2B..BU31..CBU198104-198204

sub16400-56090

main16400-56090iB..BU25;B..BU20,30..LHD..5F198206-198408

TROPICAL SPEC

main16400-56090i3B..BU32198104-198408

main16400-56150iB..BU20..EUR198204-198408

main16400-58030i3B..BU36,40198204-198408

sub16400-58080

main16400-58060i2B..BU31198204-198302

sub16400-58061

main16400-58061i2B,3B..BU23,31198302-198408

main16400-58080i3B..BU40..LHD198404-198408

TROPICAL SPEC

main16400-68060i2H..HU40,50198204-198408

main16400-78010i1W..WU40,50198404-198408

main16410-58080i3B..BU40..LHD198302-198404

TROPICAL SPEC

sub16400-58080

main16410-78010i1W..WU40,50198304-198404

sub16400-78010

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i1W..WU40,50197708-198411

main90910-09054iH..HU30197708-198408

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i2H..HU40,50197708-198411

main96710-01007iH..HU30197708-198408

sub96711-19007

16401CAP SUB-ASSY, RADIATOR

main16401-41020i2J..JU20197708-197810

sub16401-41021

main16401-41021i5R..RU2#,30197810-198411

16470TANK ASSY, RADIATOR RESERVE

main16470-48040i2J..JU20197708-198104

main16470-56050i5R..RU2#,30197708-197804

sub16470-56070

main16470-56070i5R..RU2#,30197708-198008

sub16470-56071

main16470-56071i5R..RU2#,30198008-198411

main16470-56090i2H..HU40,50..GEN..IV3198307-198408

W/LSPV

main16470-56090i1W..WU40,50198204-198408

main16470-68010i2H..HU40,50198204-198408

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12005iB..BU2#,30197708-198008

L=600(*H,L=550)

sub90445-12897

main90445-12067i2H..HU40,50198204-198408

L=330

main90445-12521i1W..WU40,50198204-198408

main90445-12521i2H..HU40,50..GEN..IV3198307-198408

W/LSPV

main90445-12897iH..HU30198008-198411

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1W..WU40,50197708-198411

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-48020i2J..JU20197708-198008

main16611-48030iH..HU30..TB197708-198104

main16611-56020i5R..RU2#,30197708-198411

main16611-56030i1W..WU40,50198204-198408

main16611-56030i2H..HU40,50..GEN..IV3198307-198408

W/LSPV

main16611-68010i2H..HU40,50198204-198408

16471CAP SUB-ASSY, RESERVE TANK

main16405-68010i2H..HU40,50198204-198408

main16471-34030i5R..RU2#,30197708-198411

main16471-34030i2H..HU40,50..GEN..IV3198307-198408

W/LSPV

16571HOSE, RADIATOR, INLET

main16571-44050i5R..RU2#,30197708-198408

main16571-47020iH..HU30197708-198104

main16571-48010i2J..JU20197708-197904

main16571-56020iB,2B,3B..BU2#,30,31,32197708-198411

main16571-56030i3B..BU36,40198204-198408

main16571-68040i2H..HU40,50198204-198408

main16571-78010i1W..WU40,50198304-198408

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90460-48056i2J..JU20197708-197811

ID=48

sub96111-10480

main90460-50016i1W..WU40,50197708-198411

ID=50

sub96111-10500

main90467-37001i5R..RU2#,30197903-198009

OUTLET SIDE,ID=37

sub90467-37003

main90467-37001i5R..RU2#,30198009-198408

ID=37

sub90467-37003

main96111-10430i5R..RU2#,30197708-197903

ID=43

main96111-10440i5R..RU2#,30197903-198009

RADIATOR SIDE,ID=44

main96111-10460i2J..JU20197811-197904

ID=46

main96111-10500iH..HU30197708-198104

ID=50

main96111-10500i2H..HU40,50198204-198408

16572HOSE, RADIATOR, OUTLET

main16571-44060i5R..RU2#,30197708-198408

PUMP SIDE

main16572-47010iH..HU30197708-198104

PUMP SIDE

main16572-48020i2J..JU20197708-197904

main16572-56030iB..BU20,25,30197708-198411

main16572-56040i2B,3B..BU23,31,32198104-198408

main16572-56040iB..BU25;B..BU20,30..LHD..5F198206-198408

TROPICAL SPEC

main16572-56070i3B..BU36,40198204-198408

main16572-68040i2H..HU40,50198204-198408

main16572-78010i1W..WU40,50198304-198408

sub16572-78011

main16573-47010iH..HU30197708-198104

RADIATOR SIDE

main90916-01150i5R..RU2#,30197708-198408

RADIATOR SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-48056i2J..JU20197708-197811

ID=48

sub96111-10480

main90460-50016iB,2B,3B..BU2#,3#,40197708-198411

RADIATOR SIDE

sub96111-10500

main90460-55021i2J..JU20197708-197904

ID=55

main96111-10460i2J..JU20197708-198408

ID=46

main96111-10500iH..HU30197708-198104

ID=50

main96111-10500i2H..HU40,50198204-198408

RADIATOR SIDE

main96111-10510i1W..WU40,50198304-198408

RADIATOR SIDE

main96111-10560i1W..WU40,50197708-198411

WATER PUMP SIDE

main96111-10560iH..HU30197708-198104

ID=56

main96111-10560i2H..HU40,50198204-198408

PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16701-44100i5R..RU2#,30197708-198408

main16701-44160i5R..RU20,30..EUR198208-198408

main16701-47010iH..HU30197708-198104

main16701-48050i2J..JU20197708-197904

main16701-56050iB..BU2#,30197708-198008

OD=380 FAN

main16701-56051iB..BU30..EUR198008-198408

OD=380 FAN

main16701-56060iB..BU2#,30..GEN197708-197807

OD=410 FAN

main16701-56110iB..BU2#,30..ARL,GEN197807-198008

OD=410 FAN

main16701-56111iB..BU20,25,30..ARL,GEN,GHI198008-198411

OD=410 FAN

main16701-56170i2B..BU31..CBU198104-198204

main16701-56180i2B,3B..BU23,31198204-198408

main16701-56180iB..BU25;B..BU20,30..LHD..5F198206-198408

TROPICAL SPEC

main16701-56190i1W..WU40,50198304-198408

main16701-56200i3B..BU36,40198204-198408

main16701-56210i3B..BU32198104-198408

main16701-56250iB..BU20..EUR198204-198408

main16711-68020i2H..HU40,50..ARL198204-198408

W/POWER STEERING

main16711-68030i2H..HU40,50198204-198408

9161140825

main91611-40825

9161160820

main91611-60820

9161160825

main91611-60825

9161161020

main91611-61020

9165140814

main91651-40814

9165140816

main91651-40816

9165640616

main91656-40616

31 parts on this diagram · 7 diagrams in section
