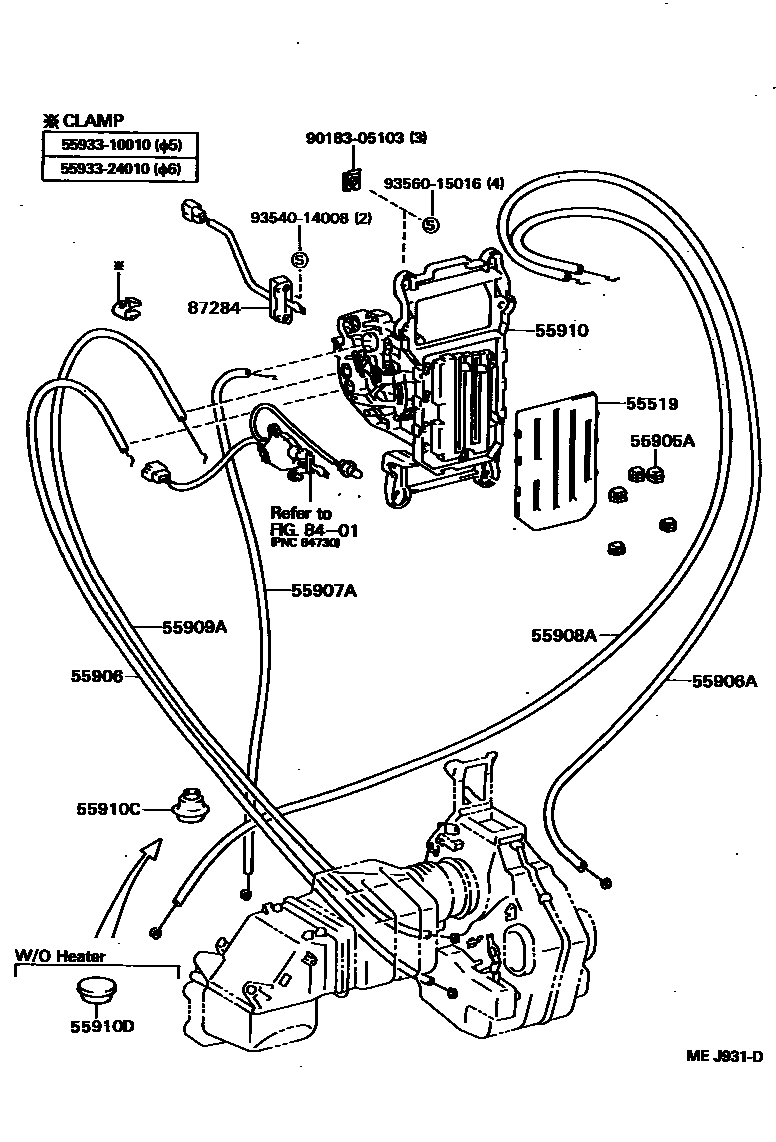

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

55519PLATE, HEATER CONTROL NAME

main55519-95403iBU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,70,8#,9#..DSL..(GEN,GHD)198808-199703

W(BOOST VENTILATOR)

main55519-95404iBU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,70,8#,9#..DSL..(GEN,GHD)198808-199703

W(FOOT VENTILATOR)

main55519-95405iBU91,96..RHD..GEN..IV3199112-199505

HONG KONG SPEC

main55519-95406iBU88..LHD198808-199505

CHINA SPEC

main55519-95406iBU91,96..TD;BU65,67..IV3;BU60,61,65,66,84,88,91,96..ARL,SA198808-199703

55905AKNOB, HEATER CONTROL

main55905-10110iBU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,70,8#,9#..DSL..(GEN,GHD)198808-199703

main55905-95707iBU66..T3..TB..GEN198808-199703

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-36020iBU91,96..RHD..GEN..IV3199112-199505

HONG KONG SPEC

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-36030iBU60,61,65,66,83,84,87..RHD199110-199505

main55906-36040iBU91,96..RHD..GEN..IV3199110-199703

main55906-36050iBU60,83..LHD..WT199110-199505

main55906-36060iBU91..TD;BU96..LHD199110-199505

main55906-95404iBU60,61,65,66,83,84,87..RHD198808-199110

main55906-95405iBU88,9#..RHD198808-199110

main55906-95406iBU84..LHD;BU60..TW1..GEN198808-199110

main55906-95407iBU91..LHD..DSL198808-199110

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-36010iBU60,61,65,66,83,84,87..RHD199110-199505

main55907-36020iBU88,94..RHD;BU91..RHD..CBU;BU91,96..ARL,SA199110-199703

main55907-36030iBU84..LHD;BU60..TW1..GEN199110-199505

main55907-36040iBU91..LHD..DSL199110-199505

main55907-95404iBU60,61,65,66,83,84,87..RHD198808-199110

main55907-95405iBU88,9#..RHD198808-199110

main55907-95406iBU60,83..LHD..WT198808-199110

main55907-95407iBU91..LHD..DSL198808-199110

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55906-36090iBU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,70,83,84,87..GEN,GHD199111-199505

W(FOOT VENTILATOR)

main55906-36100iBU88,9#..DSL..GEN199111-199703

W(FOOT VENTILATOR)

main55908-95402iBU60,83..LHD..WT198808-199505

main55908-95403iBU91..RHD..GEN;BU96..DSL..GEN198808-199703

main55908-95404iBU65..GEN..CBU;BU60,61,66,70,83,84,87..GEN,GHD198808-199111

W(FOOT VENTILATOR)

main55908-95405iBU88,9#..DSL..GEN198808-199111

W(FOOT VENTILATOR)

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-95404iBU60,61,65,66,83,84,87..RHD198808-199505

main55909-95405iBU88,94..RHD;BU91..RHD..CBU;BU91,96..ARL,SA198808-199703

main55909-95406iBU84..LHD;BU60..TW1..GEN198808-199505

main55909-95407iBU91..LHD..DSL198808-199505

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-36070iBU91,96..RHD..GEN..IV3199112-199505

HONG KONG SPEC

main55910-36090iBU91..LHD..DSL199110-199703

main55910-36100iBU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,70,8#,9#..DSL..(GEN,GHD)199110-199703

W(BOOST VENTILATOR)

main55910-36110iBU65..GEN..CBU;BU66..T3..TB..GEN;BU60,61,70,8#,9#..DSL..(GEN,GHD)199110-199703

W(FOOT VENTILATOR)

main55910-95409iBU91,96..TD;BU65,67..IV3;BU60,61,65,66,84,88,91,96..ARL,SA198808-199110

sub55910-36090

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

sub55907-36010

sub55907-36020

sub55907-36030

sub55907-36040

main55910-95410iBU65..GEN..CBU;BU60,61,66,70,8#,9#..DSL..(GEN,GHD)198808-199110

W(BOOST VENTILATOR)

sub55910-36100

sub55906-36030

sub55906-36040

sub55906-36050

sub55906-36060

main55910-95411iBU65..GEN..CBU;BU60,61,66,70,8#,9#..DSL..(GEN,GHD)198808-199110

W(FOOT VENTILATOR)

sub55910-36110

sub55906-36090

sub55906-36100

55910CGROMMET(FOR HEATER CONTROL CABLE)

main90480-15001iBU91..LHD..DSL198808-199703

main90480-24215iBU84..LHD;BU60..TW1..GEN198808-199505

55910DPLUG, HOLE(FOR HEATER CONTROL CABLE HOLE)

main90950-01127iBU65,84..RHD..GEN;BU60,61,66,70,83,87..GEN,GHD198808-199505

main90950-01258iBU88,9#..DSL..GEN198808-199703

sub90950-01478

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88032-95400iBU91..LHD..DSL198808-199703

5593310010GUIDE, LEVER, NO.2

main55933-10010

5593324010GUIDE, LEVER, NO.2

main55933-24010

9018305103

main90183-05103

9354014008

main93540-14008

9356015016

main93560-15016

17 parts on this diagram · 7 diagrams in section
