SEPARATOR & SEPARATOR CURTAIN

62335CCOVER, SEPARATOR BAR

main62335-92600-06iBU70;BU60,88..TW1198808-199109

BROWN,TRIM4#

sub62335-92600

main62335-92600-B0iBU70;BU60,88..TW1199109-199505

GRAY,TRIM1#

sub62335-92600

65915ABRACKET, CURTAIN RAIL

main65915-92600iBU70..V198808-199505

74805SEPARATOR SUB-ASSY

main74805-92622iBU70..V198808-199505

sub74805-92624

sub90333-20001

main74805-92623iBU70..BUS198808-199505

sub74805-92625

sub90333-20001

main74805-92624iBU70..V198808-199505

W(HEADREST),UPR

main74805-92625iBU70..BUS198808-199505

W(HEADREST)

main74805-92627iBU88..TW1198808-199505

main74805-92628iBU70..V198808-199505

W(HEADREST),LWR

sub74805-92627

main74805-95403iBU60..TW1..GEN198808-199505

main74805-95404iBU60..ARL198808-199505

74836BBRACKET, SEPARATOR BAR, NO.2

main74836-92602-06iBU70..V198808-199109

BROWN,TRIM4#

sub74836-92602

main74836-92602-C0iBU70..V199109-199505

BLACK,TRIM1#

sub74836-92602

74845BORNAMENT, FRONT SEATBACK PANEL, C

main74845-92602iBU88..TW1198808-199109

UPR

main74845-92602-B0iBU88..TW1199109-199505

GRAY,TRIM1#

sub74845-92602

main74845-92602-B0iBU70..V199109-199505

GRAY,TRIM1#,UPR

sub74845-92602

main74845-95400-06iBU70;BU60..TW1198808-199109

BROWN,TRIM4#,LWR

main74845-95400-06iBU70;BU60..TW1198808-199109

BROWN,TRIM4#

main74845-95400-B0iBU70;BU60..TW1199109-199505

GRAY,TRIM1#

main74845-95400-B0iBU70;BU60..TW1199109-199505

GRAY,TRIM1#,LWR

74851BAR, SEPARATOR

main74851-92605iBU70..V198808-199505

74870ACURTAIN ASSY, SEPARATOR

main74870-92603iBU70..V198808-199505

74881ERAIL, SEPARATOR CURTAIN

main74881-92600iBU70..V198808-199505

9015960072

main90159-60072

9053004007

main90530-04007

9053006001

main90530-06001

9331216014

main93312-16014

9338526016

main93385-26016

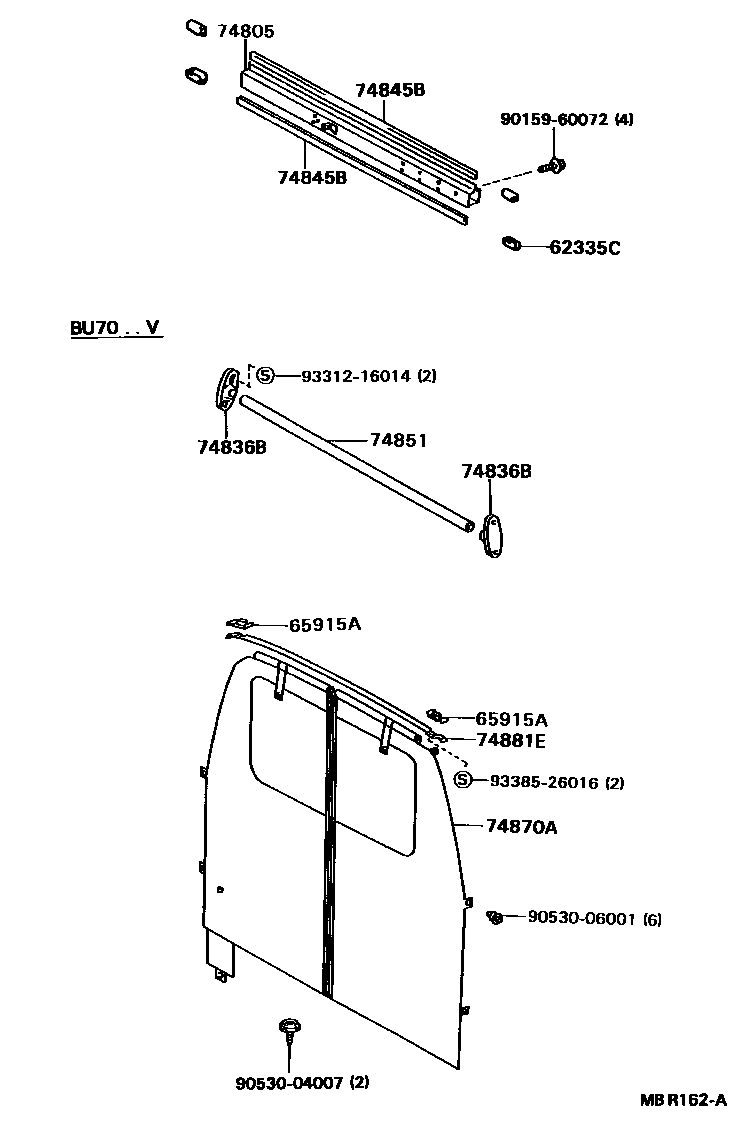

13 parts on this diagram · 1 diagram in section
