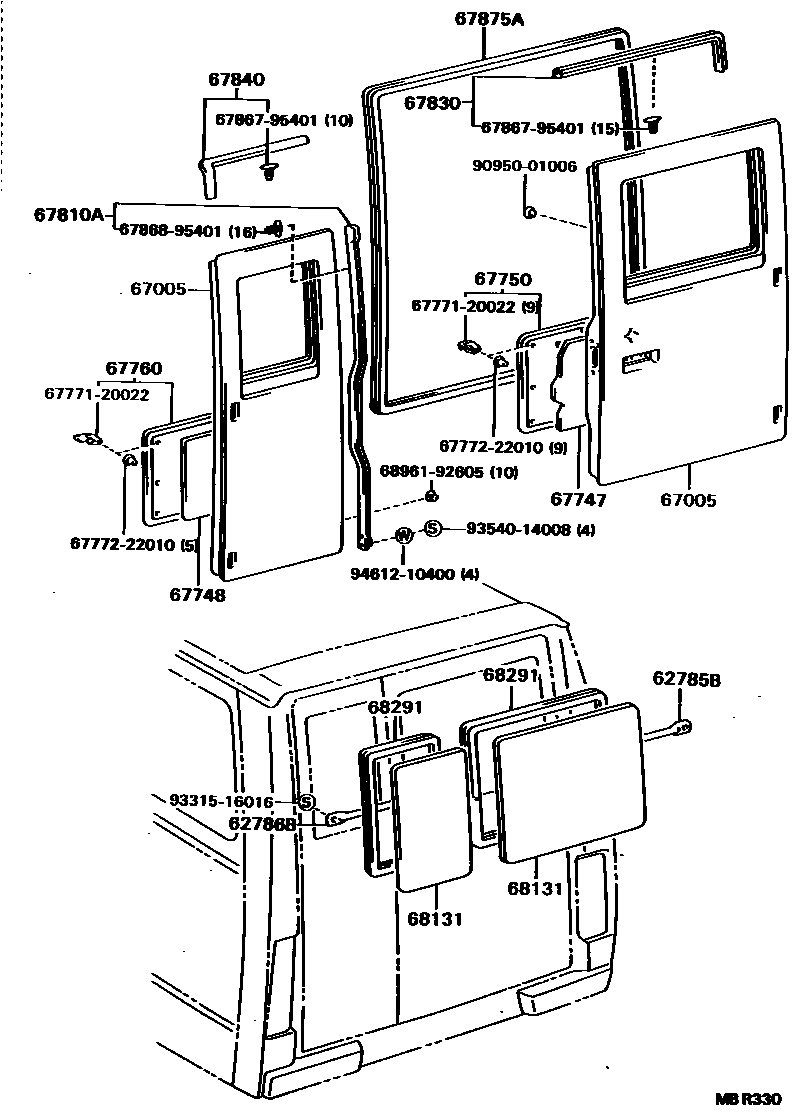

BACK DOOR PANEL & GLASS
62785BTUBE, BACK DOOR WINDOW GUARD, RH
62786BTUBE, BACK DOOR WINDOW GUARD, RH
67005PANEL SUB-ASSY, BACK DOOR
RH
RH
LH
LH
67747COVER, BACK DOOR SERVICE HOLE, RH
SAUDI ARABIA & GULF SPEC
67748COVER, BACK DOOR SERVICE HOLE, LH
SAUDI ARABIA & GULF SPEC
67750BOARD ASSY, BACK DOOR TRIM
BROWN,TRIM4#
GRAY,TRIM1#
67760BOARD ASSY, BACK DOOR TRIM, LH
BROWN,TRIM4#
GRAY,TRIM1#
67810AWEATHERSTRIP SUB-ASSY, BACK DOOR CENTER
67830WEATHERSTRIP SUB-ASSY, BACK DOOR UPPER, RH
67840WEATHERSTRIP SUB-ASSY, BACK DOOR UPPER, LH
67875AWEATHERSTRIP, BACK DOOR
sub67881-92601
68131GLASS, BACK DOOR
68291WEATHERSTRIP, BACK DOOR GLASS
RH
LH
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
6786795401CLIP, DOOR WEATHERSTRIP
main67867-95401
6786895401CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-95401
6896192605BOLT, BACK DOOR STAY
main68961-92605
9095001006
main90950-01006
9331516016
main93315-16016
9354014008
main93540-14008
9461210400
main94612-10400
22 parts on this diagram · 1 diagram in section
