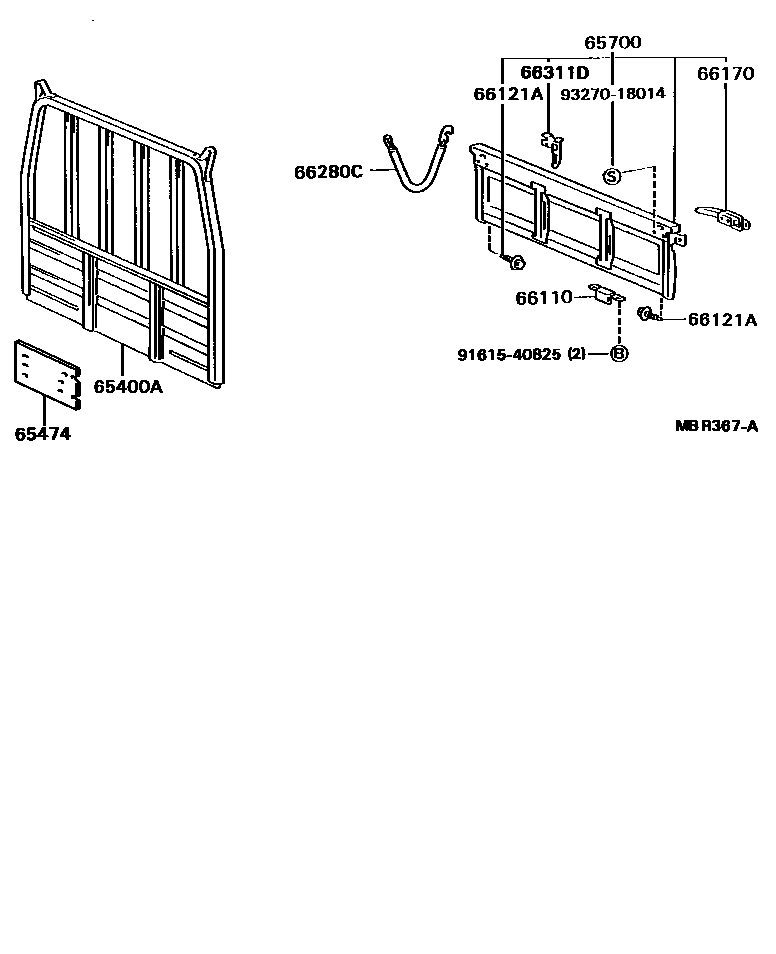

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1 0004 1

65400AGUARD ASSY, REAR BODY

main65400-37010iBU61..ST..CBU199008-199210

sub65400-37011

main65400-37011iBU61..ST..CBU199210-199505

main65400-37040iBU60,61..WT..CBU199104-199210

sub65400-37041

main65400-37041iBU60,61..WT..CBU199210-199305

main65400-37042iBU60,61..WT..CBU199305-199505

main65400-37050iBU60,61..WT..CBU199104-199210

W(*STAC)

sub65400-37051

main65400-37051iBU60,61..WT..CBU199210-199305

W(*STAC)

main65400-37052iBU60,61..WT..CBU199305-199505

W(REAR SCHNORKEL AIR CLEANER)

main65400-37060iBU60..T3..ST..CBU199104-199210

sub65400-37061

main65400-37061iBU60..T3..ST..CBU199210-199305

main65400-37062iBU60..T3..ST..CBU199305-199505

main65400-37070iBU60..T3..ST..CBU199104-199210

W(*STAC)

sub65400-37071

main65400-37071iBU60..T3..ST..CBU199210-199305

W(REAR SCHNORKEL AIR CLEANER)

main65400-37072iBU60..T3..ST..CBU199305-199505

W(REAR SCHNORKEL AIR CLEANER)

main65400-37240iBU83,84..CBU199309-199505

main65400-37250iBU88..CBU199309-199505

sub65400-37300

main65400-37260iBU91,96..CBU199309-199505

sub65400-37310

main65400-37300iBU88..CBU199309-199505

W(*STAC)

sub65400-37200

main65400-37310iBU91..CBU199309-199505

W(REAR SCHNORKEL AIR CLEANER)

sub65400-37210

main65400-37320iBU96..CBU199309-199505

W(REAR SCHNORKEL AIR CLEANER)

sub65400-37310

main65400-92126iBU83,84..CBU198808-199309

sub65400-37240

sub66311-92701

main65400-92133iBU88..RHD..CBU198910-199309

sub65400-37250

sub66311-92701

main65400-92136iBU91..CBU198808-199309

W(REAR SCHNORKEL AIR CLEANER)

sub65400-37310

sub66311-92701

main65400-92137iBU91,96..CBU198808-199309

sub65400-37260

sub66311-92701

main65400-92140iBU96..CBU198808-199309

W(REAR SCHNORKEL AIR CLEANER)

sub65400-37320

sub66311-92701

main65400-95430iBU61..ST..CBU198808-199008

main65400-95431iBU60..T3..ST..CBU198808-199104

sub65400-37060

main65400-95432iBU60..T3..ST..CBU198808-199104

W(*STAC)

sub65400-37070

main65400-95433iBU60,61..WT..CBU198808-199104

sub65400-37040

main65400-95434iBU60,61..WT..CBU198808-199104

W(*STAC)

sub65400-37050

main65410-37050iBU60..TW1199210-199505

main65410-92711iBU60..TW1198808-199210

sub65410-37050

65474INSULATOR, HEADER

main65474-37010iBU61..ST..CBU199008-199505

65700GATE ASSY, REAR BODY TAIL

main65700-25010iBU60,61..(T1,TW1)..CBU199210-199505

main65700-37020iBU60,61..WT..CBU199104-199210

sub65700-37021

sub75995-37020

main65700-37021iBU60,61..WT..CBU199210-199505

main65700-37030iBU60..T3..ST..CBU199104-199505

main65700-92825iBU83,84,88..CBU199206-199505

main65700-92826iBU91,96..CBU199206-199505

main65700-92827iBU83,84,88..CBU198808-199206

sub65700-92825

main65700-92828iBU91,96..CBU198808-199206

sub65700-92826

main65700-95415iBU60,61..(T1,TW1)..CBU198808-199210

sub65700-25010

sub75995-37020

main65700-95416iBU60..T3..ST..CBU198901-199104

sub65700-37030

main65700-95417iBU60,61..WT..CBU198901-199104

sub65700-37020

main65701-93106iBU65..CBU198808-199505

66110HINGE ASSY, TAIL GATE

main66110-92702iBU83,84,88,91,96..CBU198808-199505

main66110-95014iBU60,61..(T1,TW1)..CBU198808-199505

main66110-95407iBU60,61..T3..CBU198808-199505

66121ABOLT, TAIL GATE MALE

main66121-95012iBU60,61..(T1,TW1)..CBU198808-199505

THAILAND SPEC

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iBU60,61..(T1,TW1)..CBU198808-199505

66280CCHAIN ASSY, TAIL GATE

main66280-25020iBU60,61..T3..CBU199311-199505

main66280-37010iBU60,61..(T1,TW1)..CBU198910-199505

main66280-92702iBU83,84,88,91,96..CBU198808-199505

main66280-95011iBU60,61..T3..CBU198808-199311

sub66280-25020

main66280-95403iBU60,61..(T1,TW1)..CBU198808-198910

sub66280-37010

66311DHOOK, ROPE

main66311-37010iBU60,61..T3..CBU199104-199505

main66311-90K00iBU60,61..(T1,TW1)..CBU199210-199505

main66311-92701iBU83,84,88,91,96..CBU198808-199309

main66311-95010iBU60,61..(T1,TW1)..CBU198808-199210

sub66311-90K00

main66311-95400iBU60,61..T3..CBU198808-199104

sub66311-37010

9161540825

main91615-40825

9327018014

main93270-18014

10 parts on this diagram · 4 diagrams in section
