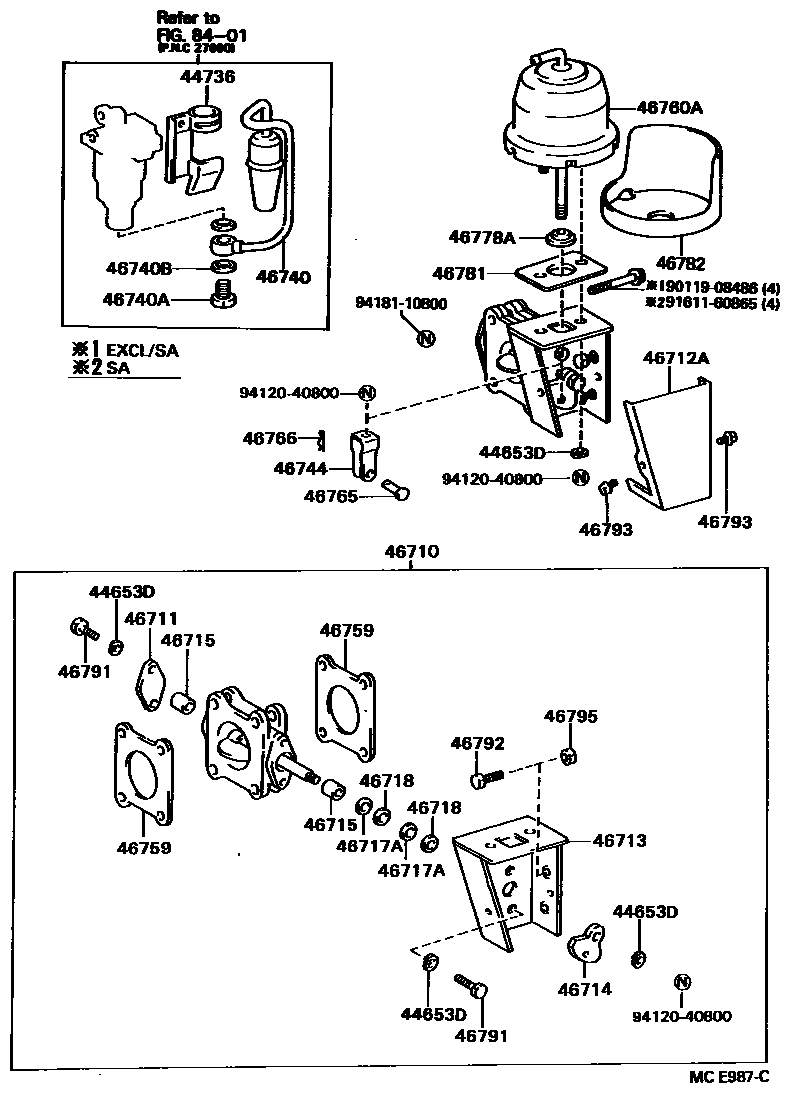

EXHAUST BRAKE ASSEMBLY & VACUUM CYLINDER

44653DWASHER, EXHAUST VALVE COVER

main44653-55010×5iBU88..ARL;BU60,91..WT;BU61..WT..GEN;BU60..ST..IV3;BU65,88..GEN..(CBU,IV1);BU66,67,83,84,94,96..GEN,GHD,SA199305-199404

44736BRACKET, AIR CLEANER

main44736-36011iBU88..RHD..GEN..IV3198903-199108

INDIA SPEC OR W(EXHAUST BRAKE)

main44736-36050iBU67;BU65..GEN..CBU198808-199505

main44736-36070iBU88..ARL;BU88..CBU,IV1;BU61,66..T3..GEN;BU60,83,84,9#..WT199109-199305

sub44736-37030

46710VALVE ASSY, EXHAUST BRAKE

main46710-36170iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

sub46710-36171

sub46712-36270

46711COVER, EXHAUST VALVE

46712ACOVER, EXHAUST BRAKE BRACKET

main46712-36060iBU60..ST..IV3199105-199305

46713BRACKET, EXHAUST VALVE

main46713-36060iBU60..ST..IV3199105-199305

46714LEVER, EXHAUST VALVE

main46714-36010iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46715BUSH, EXHAUST VALVE, NO.1

main46715-36010iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

L=16.0

46717ARING, EXHAUST VALVE SEAL, NO.1

main46717-36010×2iBU88..RHD..GEN..IV3198808-199703

INDIA SPEC OR W(EXHAUST BRAKE)

46718RING, EXHAUST VALVE SEAL, NO.2

main46718-36010×2iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46740CLEANER ASSY, EXHAUST RETARDER

main46740-36011iBU88..RHD;BU88..LHD..CBU;BU61,66..T3..GEN;BU60,83,84,9#..WT198808-198903

main46740-36060iBU67;BU65..GEN..CBU198808-199505

main46740-36070iBU91,96..SA199008-199108

main46740-36080iBU88..RHD..GEN..IV3199112-199703

INDIA SPEC OR W(EXHAUST BRAKE)

46740ABOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iBU88..RHD;BU65..GEN..CBU;BU88..LHD..CBU;BU61,66..T3..GEN;BU60,83,84,9#..WT198808-198903

46740BGASKET(FOR EXHAUST BRAKE CLEANER ASSY)

main90430-12247×2iBU88..RHD;BU65..GEN..CBU;BU88..LHD..CBU;BU61,66..T3..GEN;BU60,83,84,9#..WT198808-198903

46744CLEVIS, EXHAUST BRAKE ROD CLEVIS

main46744-25010iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46759GASKET, EXHAUST RETARDER

main46759-36040×2iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46760ACHAMBER ASSY, EXHAUST BRAKE

main46760-36092iBU88..ARL;BU61,66..T3..GEN;BU60,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-198910

INDIA SPEC OR W(EXHAUST BRAKE)

main46760-36093iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198910-199305

46765PIN, VACUUM CYLINDER CLEVIS

main46765-36010iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46766PIN, VACUUM CYLINDER CLEVIS SNAP

main46766-36010iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46778ABEARING, EXHAUST BRAKE CHAMBER ROD

main46778-36060iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46781INSULATOR, EXHAUST BRAKE CHAMBER, NO.1

main46781-36060iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

sub46781-28010

46782INSULATOR, EXHAUST BRAKE CHAMBER, NO.2

main46782-36130iBU6#,83,84,88,9#198808-199703

46791BOLT, EXHAUST VALVE COVER

main46791-36010×2iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46792BOLT, EXHAUST VALVE STOPPER

main46792-36010×2iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46793BOLT, EXHAUST VALVE LINK COVER

main46793-36010×2iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

46795NUT, EXHAUST VALVE BRACKET

main46795-36010×2iBU88..ARL;BU61,66..T3..GEN;BU60,67,83,84,9#..WT;BU65,88..GEN..(CBU,IV1)198808-199305

8401

9011908486

main90119-08486

9161160865

main91611-60865

9412040800

main94120-40800

9418110800

main94181-10800

30 parts on this diagram · 1 diagram in section
