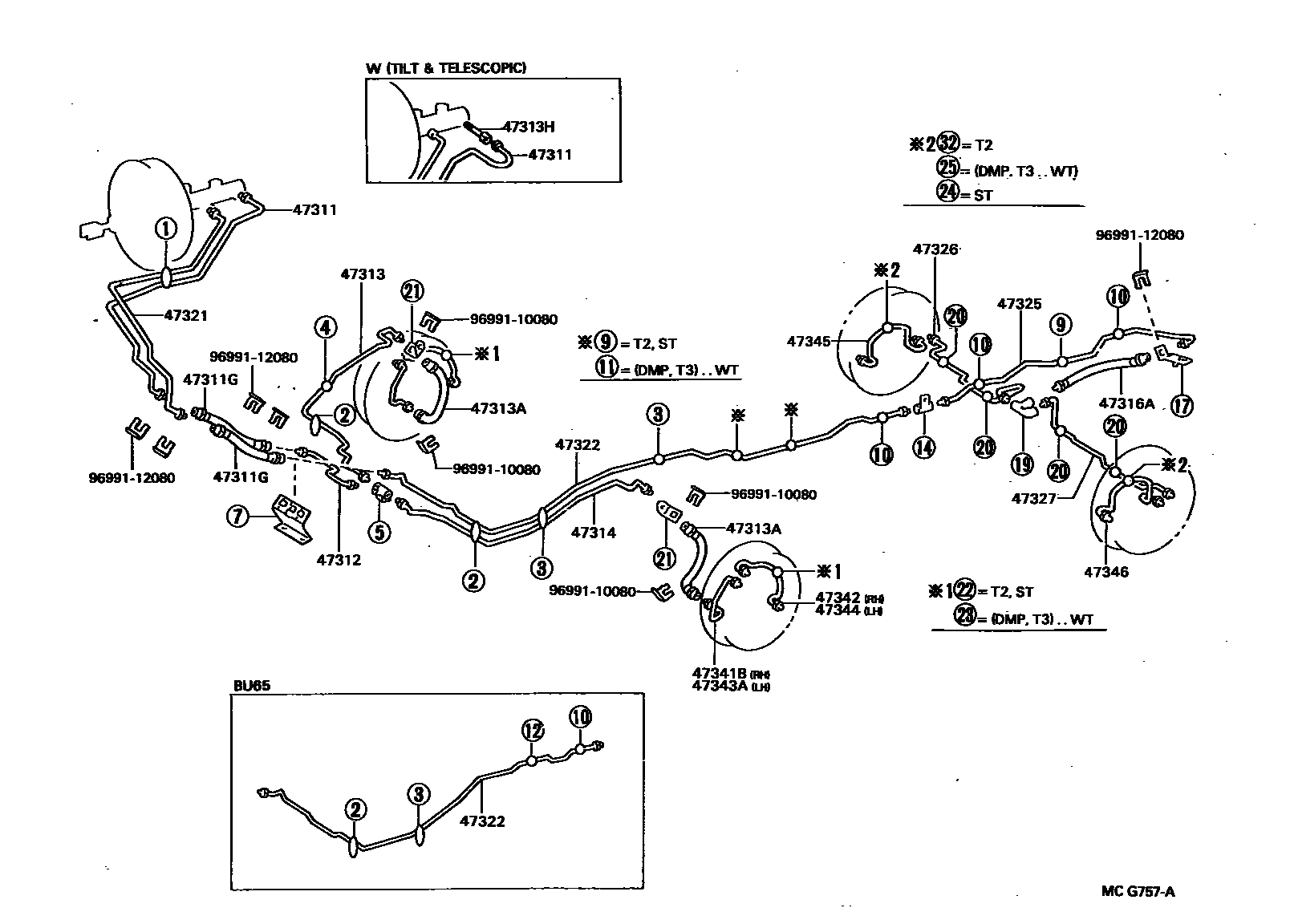

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36300iBU88,9#..RHD..(GEN,SA)198808-199703

main47311-36310iBU88,91,96..LHD..DSL198808-199505

main47311-36320iBU60,61,65,83,84..RHD..(GEN,GHD,SA)198808-199505

main47311-36330iBU66..ST;BU60,61,65,70,83,84..LHD198808-199505

main47311-36380iBU87198808-199505

main47311-36390iBU66,67..WT..GEN198808-199505

main47311-36390iBU66..ST199404-199505

TAIWAN SPEC

main47311-36400iBU60,61,65,83,84..RHD..(GEN,GHD)198808-199505

W(TILT & TELESCOPIC)

main47311-36410iBU66..ARL198808-199204

main47311-36410iBU87198808-199505

W(TILT & TELESCOPIC)

main47311-36420iBU66..ST;BU60,61,70,83,84..LHD198808-199505

W(TILT & TELESCOPIC)

main47311-36430iBU66..T3..TB..WT..GEN198808-199505

W(TILT & TELESCOPIC STEERING)

main47311-36430iBU66..ST199404-199505

TAIWAN SPEC & W(TILT & TELESC0PIC STEERING)

main47311-36450iBU91..RHD..CBU;BU88..RHD..GEN..(CBU,IV3)199112-199703

W(TILT & TELESCOPIC)

main47311-36450iBU88,91,96..RHD..GEN..(CBU,IV3)198808-199112

W(TILT & TELESCOPIC STEERING)

main47311-36450iBU88,91..ARL198808-199505

main47311-36450iBU91,96..RHD..GEN..IV3199112-199505

HONGKONG COUSTOM PACKAGE OR W(TILT & TELESCOPIC STEERING)

main47311-36460iBU88,91,96..LHD..DSL198808-199505

W(TILT & TELESCOPIC)

main47311-36460iBU91,96..TD199004-199305

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02519iBU88..CBU,IV3198808-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main96932-33705iBU6#,70,83,84,87198808-199505

main96932-34305iBU88,9#198808-199703

sub96932-34307

47312TUBE, FRONT BRAKE, NO.2

main47312-36230iBU88,9#..RHD198808-199003

sub47312-36231

main47312-36231iBU88,9#..RHD199003-199703

main47312-36240iBU88,91,96..LHD198808-199505

main47312-36250iBU6#,70,83,84,87198808-199505

47313TUBE, FRONT BRAKE, NO.3

main47313-36160iBU60,61,66,70,83,84,87198808-199505

main47313-36170iBU65,67198808-199006

sub47313-36210

main47313-36200iBU88,9#198808-199703

main47313-36210iBU65,67199006-199505

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02469iBU60,61,66,70..ST198808-199505

sub90947-02531

main90947-02470iBU6#,83,84,87..WT198808-199505

main90947-02566iBU88,94198808-199703

main90947-02567iBU88..CBU,IV3198808-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

sub90947-02744

main90947-02744iBU88..CBU,IV3199210-199703

W(FR DISC BRAKE RR AUTO ADJUSTER)

main96940-33305iBU65..ARL;BU66..T3..TB..WT;BU60,61,83,84..WT..(ARL,GEN)198808-199505

W(FR DISC BRAKE RR AUTO ADJUSTER)

main96950-34205iBU91,96198808-199505

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90404-12007iBU91..ARL;BU91..RHD..CBU;BU65,88..RHD..(CBU,IV3);BU60,61,66,67,70,83,84,87..ARL,GEN,GHD198808-199703

main90404-12007iBU91,96..RHD..GEN..IV3199112-199505

HONGKONG COUSTOM PACKAGE OR W(TILT & TELESCOPIC STEERING)

main90404-12007iBU66..ST199404-199505

W(TILT & TELESCOPIC)

main90404-12008iBU88,91,96..LHD198808-199505

47314TUBE, FRONT BRAKE, NO.4

main47314-36230iBU60,61,66,70,83,84,87198808-199505

main47314-36240iBU65,67198808-199006

sub47314-36290

main47314-36280iBU88,9#198808-199703

main47314-36290iBU65,67199006-199505

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02518iBU88..CBU,IV3198808-199210

W(FR DISC BRAKE RR AUTO ADJUSTER)

main96912-33605iBU65,67198808-199505

sub96912-33607

main96912-33705iBU66..T2199305-199505

sub96912-33707

main96912-34005iBU66..T3;BU60,61,70,83,84,87198808-199505

main96912-34105iBU88,9#198808-199703

sub96912-34107

47321TUBE, REAR BRAKE, NO.1

main47321-36200iBU88,9#..RHD198808-199703

main47321-36210iBU88,91,96..LHD198808-199505

main47321-36220iBU60,61,65,66,83,84..RHD..5F198808-199505

main47321-36230iBU66..ST;BU60,61,65,70,83,84..LHD198808-199505

main47321-36280iBU87;BU66..4FC198808-199505

main47321-36290iBU66,67..WT..GEN198808-199505

main47321-36290iBU66..ST199404-199505

TAIWAN SPEC

47322TUBE, REAR BRAKE, NO.2

main47322-36201iBU65..CBU198808-199505

main47322-36212iBU60,61,66,70,83,84..LHD198808-199505

main47322-36241iBU60,61,66,83,84,87..RHD198808-199505

main47322-36250iBU65,67..IV3198808-199006

sub47322-36310

main47322-36270iBU88,91,96..LHD198808-199505

main47322-36280iBU88,9#..RHD198808-199703

main47322-36310iBU65,67..IV3199006-199505

47325TUBE, REAR BRAKE, NO.5

main47325-36120iBU94,96..GEN198808-199703

main47325-36130iBU88,91..ARL,GEN198808-199703

main47325-36142iBU65,67..IV3198808-199505

main47325-36150iBU88..ARL198808-199505

W(LSPV)

main47325-36160iBU91..ARL198808-199505

W(LSPV)

main47325-36171iBU61,66,84..ARL,SA198808-199505

W(LSPV)

main47325-36180iBU60,61,66..T3..WT..GEN198808-199505

main47325-36250iBU65..GEN..CBU198808-199505

main47325-36280iBU60,61,66,70..ST198808-199505

main47325-36300iBU65..ARL198808-199505

main47325-36310iBU83,84,87..GEN,GHD198808-199505

main47325-36450iBU66..T2199305-199505

47326TUBE, REAR BRAKE, NO.6

main47326-36090iBU65,67198808-199505

main47326-36100iBU66..T2199305-199505

main47326-36140iBU66..TS;BU66..4FC;BU60,61,83,84..WT..(ARL,GEN,SA)198808-199505

main47326-36150iBU60,61,83,84..WT..GEN198808-199505

HEAVY DUTY SPEC

main47326-36150iBU83,87..GHD;BU66,88,94..(T3,TW1)..TB..5F..WT198808-199703

main47329-36140iBU60,61,66,70..ST198808-199505

main47329-36180iBU91,96198808-198905

main47329-36181iBU91,96198905-199505

47327TUBE, REAR BRAKE, NO.7

main47327-36130iBU60,61,66,70..ST198808-199505

main47327-36140iBU66..TS;BU66..4FC;BU60,61,83,84..WT..(ARL,GEN,SA)198808-199505

main47327-36160iBU66..T2199305-199505

main47327-36170iBU65,67198808-199505

main47327-36180iBU83,87..GHD;BU66,88,94..(T3,TW1)..TB..5F..WT198808-199703

main47327-36180iBU60,61,83,84..WT..GEN198808-199505

HEAVY DUTY SPEC

main47331-36210iBU91,96198808-198905

main47331-36211iBU91,96198905-199505

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36060iBU91,96198808-199505

main47341-36070iBU66..T2;BU60,61,66,70..ST198808-199505

main47341-36090iBU66..T3..WT;BU60,61,65,67,8#,94..WT198808-199703

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020iBU66..T2;BU60,61,66,70..ST198808-199505

main47342-36030iBU66..T3..WT;BU60,61,65,67,8#,94..WT198808-199703

main47342-36050iBU91,96198808-199505

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36060iBU91,96198808-199505

main47343-36070iBU66..T2;BU60,61,66,70..ST198808-199505

main47343-36090iBU66..T3..WT;BU60,61,65,67,8#,94..WT198808-199703

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iBU66..T2;BU60,61,66,70..ST198808-199505

main47342-36030iBU66..T3..WT;BU60,61,65,67,8#,94..WT198808-199703

main47342-36050iBU91,96198808-199505

47345TUBE, WHEEL CYLINDER, REAR RH

main47342-36050iBU91,96198808-199505

main47342-36060iBU66..T2199305-199505

main47345-36011iBU60,61,66,70..ST198808-199505

main47345-36040iBU66..T3..WT;BU60,61,65,67,8#,94..WT198808-199703

47346TUBE, WHEEL CYLINDER, REAR LH

main47342-36050iBU91,96198808-199505

main47344-36060iBU66..T2199305-199505

main47345-36011iBU60,61,66,70..ST198808-199505

main47345-36040iBU66..T3..WT;BU60,61,65,67,8#,94..WT198808-199703

9699110080

main96991-10080

9699112080

main96991-12080

21 parts on this diagram · 9 diagrams in section
