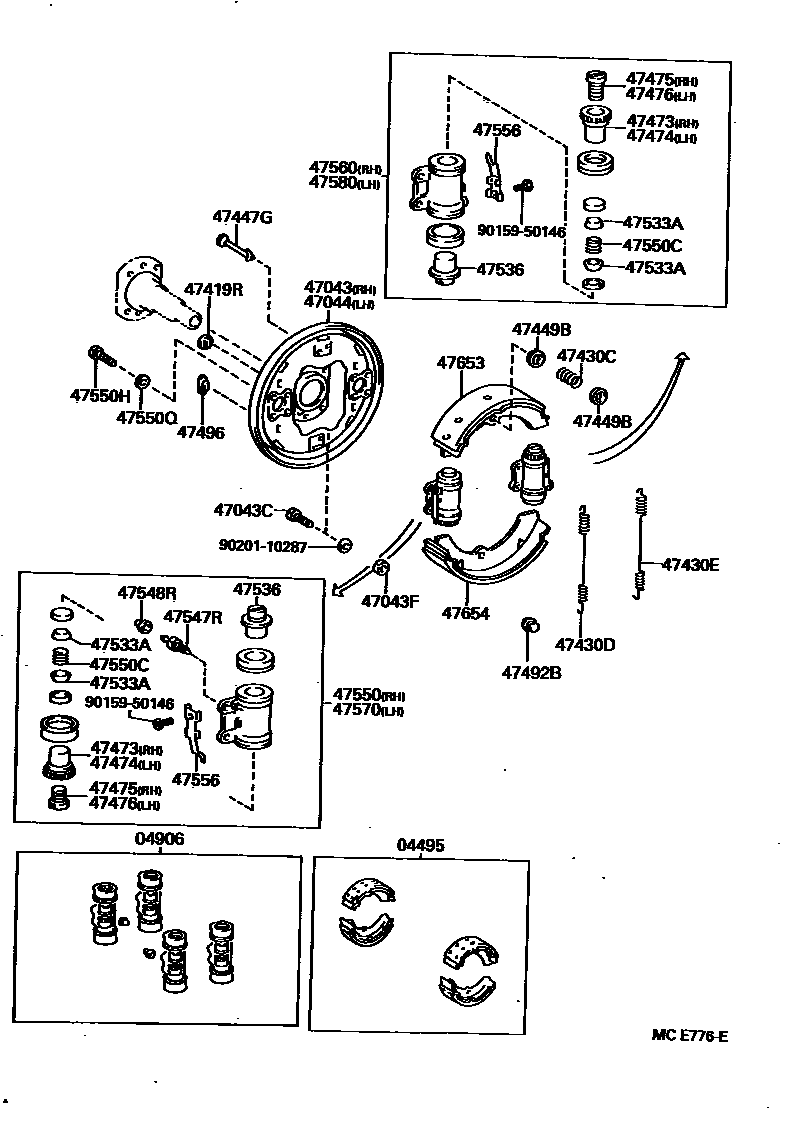

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1CYLINDER CUP:PLATE TYPE 0002 1CYLINDER CUP:RING TYPE 0003 1W(AUTO ADJUSTER),CYLINDER CUP0004 1W(AUTO ADJUSTER),CYLINDER CUP0005 1CYLINDER CUP:PLATE TYPE

04495SHOE KIT, REAR BRAKE

main04494-36070iBU91,96198808-199111

main04494-36080iBU60,61,66,70..ST198808-199109

main04494-36150iBU66..T2199305-199505

MARK AK LA514

main04494-36160iBU60,61,66,70..ST199109-199505

MARK AK LA514

sub04494-36280

main04494-36170iBU91,96199111-199505

main04495-36070iBU6#,8#,94..WT198808-199109

main04495-36080iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main04495-36110iBU66..T3..WT;BU60,61,65,67,8#,94..WT199109-199703

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36060iBU91,96198808-199505

main04906-36070iBU8#,94198808-199303

W(LSPV)

main04906-36080iBU66..T2;BU60,61,66,70..ST198808-199505

main04906-36090iBU66..T3..5F..WT;BU60,61,65,67..WT198808-199505

main04906-36120iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)198808-199303

W(AUTO ADJUSTER)

main04906-36140iBU66..ARL198808-199204

main04906-36170iBU60..LHD..WT199303-199505

W(LSPV)

main04906-36180iBU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199303-199703

W(AUTO ADJUSTER)

sub04906-36181

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36080iBU91,96198808-199505

main47043-36090iBU60,61,66,70..ST198808-199505

sub47043-36091

main47043-36100iBU66..T2199305-199505

sub47043-25110

main47043-36110iBU6#,8#,94..WT198808-199210

main47043-36140iBU66..T3..WT;BU60,61,65,67,8#,94..WT199210-199703

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10019×8iBU66..T2199305-199505

*10-1.25PX31-21.5

sub90114-10063

main90114-14004×12iBU91,96198808-199505

*14-1.5PX39-26

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178×8iBU66..T2199305-199505

sub94130-01002

main90170-14002×12iBU91,96198808-199505

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36040iBU91,96198808-199505

main47044-36090iBU60,61,66,70..ST198808-199505

sub47044-36091

main47044-36100iBU66..T2199305-199505

sub47044-25080

main47044-36110iBU6#,8#,94..WT198808-199210

main47044-36140iBU66..T3..WT;BU60,61,65,67,8#,94..WT199210-199703

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iBU6#,70,8#,94..5F198808-199703

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iBU6#,70,8#,9#198808-199703

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iBU60,61,66,70..ST198808-199505

main90507-29002×2iBU66..T2199305-199505

main90507-29006×2iBU66..T3..WT;BU60,61,65,67,8#,9#..WT198808-199703

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iBU60,61,66,70..ST198808-199505

main90507-29002×2iBU66..T2199305-199505

main90507-29006×2iBU66..T3..WT;BU60,61,65,67,8#,9#..WT198808-199703

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010×4iBU66..T2199305-199505

main47447-36020×4iBU60,61,66,70..ST198808-199505

main47447-60010×4iBU66..T3..WT;BU60,61,65,67,8#,9#..WT198808-199703

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iBU6#,70,8#,9#198808-199703

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-36023×2iBU91,96198808-199505

main47551-36130×2iBU8#,94198808-199303

W(LSPV)

main47551-36150×2iBU66..T2;BU60,61,66,70..ST198808-199505

main47551-36160×2iBU66..T3..5F..WT;BU60,61,65,67..WT198808-199505

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47552-36023×2iBU91,96198808-199505

main47552-36130×2iBU8#,94198808-199303

W(LSPV)

main47552-36150×2iBU66..T2;BU60,61,66,70..ST198808-199505

main47552-36160×2iBU66..T3..5F..WT;BU60,61,65,67..WT198808-199505

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36030×2iBU91,96198808-199505

main47553-36050×2iBU66..T2;BU60,61,66,70..ST198808-199505

main47553-36060×2iBU66..T3..5F..WT;BU60,61,65,67,8#,94..WT198808-199703

main47553-36070×2iBU66..ARL198808-199204

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36030×2iBU91,96198808-199505

main47554-36050×2iBU66..T2;BU60,61,66,70..ST198808-199505

main47554-36060×2iBU66..T3..5F..WT;BU60,61,65,67,8#,94..WT198808-199703

main47554-36070×2iBU65..ARL;BU66..T3..TB..5F..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3)198808-199703

W(FR DISC BRAKE RR AUTO ADJUSTER)

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×4iBU66..T3..WT;BU60,61,65,67,8#,94..WT199210-199703

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×8iBU66..ARL198808-199204

sub47491-36020

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-25010×8iBU91,96198808-199505

main47533-30011×8iBU65..ARL;BU61,66..WT;BU60..RHD..GEN198808-199303

W(FR DISC BRAKE,RR AUTO ADJUSTER)

main47533-40013×8iBU6#,70198808-199505

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47531-36032×4iBU91,96198808-199505

main47536-36020×4iBU66..T2;BU60,61,66,70..ST198808-199505

main47536-36030×4iBU66..T3..WT;BU60,61,65,67..WT198808-199505

main47536-36040×4iBU65..ARL;BU61,66..WT;BU60..RHD..GEN198808-199303

W(FR DISC BRAKE,RR AUTO ADJUSTER)

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iBU6#,70,8#,9#198808-199703

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iBU6#,70,8#,9#198808-199703

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36070iBU91,96198808-199505

main47550-36100iBU66..T2;BU60,61,66,70..ST198808-199505

main47550-36110iBU66..T3..5F..WT;BU60,61,65,67..WT198808-199505

main47550-36120iBU8#,94198808-199303

W(LSPV)

main47550-36140iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199109-199303

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47550-36150iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47550-36160iBU66..ARL198808-199204

main47550-36230iBU60..LHD..WT199303-199505

W(LSPV)

main47550-36240iBU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199303-199703

W(FR DISC BRAKE RR AUTO ADJUSTER)

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122×4iBU65..ARL;BU61,66..WT;BU60..RHD..GEN198808-199303

W(FR DISC BRAKE,RR AUTO ADJUSTER)

main90501-09735×4iBU6#,70198808-199505

main90501-10759×4iBU91,96198808-199505

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iBU66..T2;BU60,61,66,70..ST198808-199505

main90101-10127×16iBU66..T3..WT;BU60,61,65,67,8#,9#..WT198808-199703

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iBU66..T2;BU60,61,66,70..ST198808-199505

main90201-10287×16iBU66..T3..WT;BU60,61,65,67,8#,9#..WT198808-199703

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-36020×4iBU91,96198808-199505

main47555-36051×4iBU6#,70,8#,94..5F198808-199703

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36070iBU91,96198808-199505

main47560-36100iBU66..T2;BU60,61,66,70..ST198808-199505

main47560-36110iBU66..T3..5F..WT;BU60,61,65,67..WT198808-199505

main47560-36120iBU8#,94198808-199303

W(LSPV)

main47560-36140iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199109-199303

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47560-36150iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47560-36160iBU66..ARL198808-199204

main47560-36230iBU60..LHD..WT199303-199505

W(LSPV)

main47560-36240iBU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199303-199703

W(FR DISC BRAKE RR AUTO ADJUSTER)

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36070iBU91,96198808-199505

main47570-36100iBU66..T2;BU60,61,66,70..ST198808-199505

main47570-36110iBU66..T3..5F..WT;BU60,61,65,67..WT198808-199505

main47570-36120iBU8#,94198808-199303

W(LSPV)

main47570-36140iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199109-199303

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47570-36150iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47570-36160iBU66..ARL198808-199204

main47570-36230iBU8#,94199303-199703

main47570-36240iBU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199303-199703

W(FR DISC BRAKE RR AUTO ADJUSTER)

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36070iBU91,96198808-199505

main47580-36100iBU66..T2;BU60,61,66,70..ST198808-199505

main47580-36110iBU66..T3..5F..WT;BU60,61,65,67..WT198808-199505

main47580-36120iBU8#,94198808-199303

W(LSPV)

main47580-36140iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199109-199303

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47580-36150iBU65..ARL;BU60,61,66,83,84,88..WT..(ARL,GEN)..(CBU,IV3)198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47580-36160iBU66..ARL198808-199204

main47580-36230iBU60..LHD..WT199303-199505

W(LSPV)

main47580-36240iBU65..ARL;BU66..T3..TB..WT;BU60,61,83,84,88..WT..(ARL,GEN)..(CBU,IV3)199303-199703

W(FR DISC BRAKE RR AUTO ADJUSTER)

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36090×2iBU91,96198808-199111

main47651-36100×2iBU60,61,66,70..ST198808-199505

main47651-36120×2iBU6#,8#,94..5F..WT198808-199109

main47655-36040×2iBU66..ARL198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-36090×2iBU91,96198808-199111

main47651-36100×2iBU60,61,66,70..ST198808-199505

main47651-36120×2iBU6#,8#,94..5F..WT198808-199109

main47655-36040×2iBU66..ARL198808-199109

W(FR DISC BRAKE RR AUTO ADJUSTER)

9015950146

main90159-50146

9020110287

main90201-10287

34 parts on this diagram · 5 diagrams in section
