POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-36170iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

sub44348-36171

main44348-36170iBU60..T3;BU91..CBU;BU65,91..ARL;BU91..LHD..IV3;BU61,66,67,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

sub44348-36171

main44348-36170iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

TAIWAN SPEC OR W(POWER STEERING)

sub44348-36171

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36010iBU65..ARL;BU61,66,67,84,88,91,96..(ARL,GEN)..(CBU,IV3)198808-199703

main44369-36010iBU96..LHD..IV3;BU91..RHD..GEN..IV3199309-199505

THAIWAN SPEC

main44369-36010iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main44369-36010iBU66,96..LHD..T3..TB..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

main44369-36020iBU88..TW1;BU60,83..T3198808-199505

44379BRACKET, OIL RESERVOIR, NO.2

main44379-36080iBU88..TW1198808-198910

main44379-36090iBU96..LHD..IV3;BU91..RHD..GEN..IV3199309-199505

THAIWAN SPEC

main44379-36090iBU65..ARL;BU61,66,84,88,91,96..(T1,T3)..(ARL,GEN)..(CBU,IV3)198808-199703

main44379-36090iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main44379-36090iBU66,96..LHD..T3..TB..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

main44379-36150iBU60,83..T3198808-199505

sub44379-37020

44386ASUPPORT, OIL RESERVOIR

main44386-36100iBU60,83..T3198808-199505

44389BRACKET, OIL RESERVOIR, NO.3

main44389-36060iBU60,83..T3198808-199505

44411HOSE, PRESSURE FEED

main44411-36141iBU88,91,96..LHD198808-199310

sub44411-36142

main44411-36141iBU96..LHD..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

sub44411-36142

main44411-36142iBU96..CBU;BU88,91..LHD199310-199505

sub44411-36143

main44411-36180iBU66..T3..TB199305-199309

TAIWAN SPEC OR W(POWER STEERING)

sub44411-36181

main44411-36180iBU60..LHD..T3;BU61,66,67,83,84..LHD198808-199310

sub44411-36181

main44411-36180iBU66..T3..TB..GEN199309-199310

THAIWAN SPEC

sub44411-36181

main44411-36181iBU66..T2;BU61,67,83,84..LHD;BU60,66..LHD..T3..TS199310-199505

THAIWAN SPEC

sub44411-36182

main44411-36270iBU88,91,96..RHD..(ARL,GEN)..(CBU,IV3)198808-199112

sub44411-36430

sub44413-36090

main44411-36300iBU65,66..ARL;BU60,61,83,84..RHD..(T1,T3)..(ARL,GEN,GHD)..(CBU,IV3)198808-199112

sub44411-36450

sub44413-36120

main44411-36430iBU91..ARL;BU91..RHD..CBU;BU88,96..RHD..(ARL,GEN)..(CBU,IV3)199112-199310

sub44411-36431

main44411-36430iBU91..RHD..GEN..IV3199305-199309

HONGKONG SPEC OR W(POWER STEERING)

sub44411-36431

main44411-36431iBU91..RHD..GEN..IV3199310-199703

sub44411-36432

main44411-36450iBU65,66..ARL;BU60,61,83,84..RHD..(T1,T3)..(ARL,GEN,GHD)..(CBU,IV3)199112-199310

sub44411-36451

main44411-36451iBU65..ARL;BU60,61,66,83,84..RHD..(T1,T3)..(ARL,GEN,GHD)199310-199505

sub44411-36452

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-14003iBU96..LHD..IV3;BU91..RHD..GEN..IV3199309-199505

THAIWAN SPEC

main90401-14003iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90401-14003iBU66,96..LHD..T3..TB..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-14235iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90430-14235iBU66,96..LHD..T3..TB..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

main90430-14235iBU96..LHD..IV3;BU91..RHD..GEN..IV3199309-199505

THAIWAN SPEC

44413TUBE, PRESSURE FEED, NO.1

main44413-36050iBU96..CBU;BU88,91..LHD198808-199505

main44413-36050iBU96..LHD..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

main44413-36090iBU88,91,96..RHD..(ARL,GEN)..(CBU,IV3)199112-199703

main44413-36090iBU91..RHD..GEN..IV3199305-199309

HONGKONG SPEC OR W(POWER STEERING)

main44413-36120iBU65,66..ARL;BU60,61,83,84..RHD..(T1,T3)..(ARL,GEN,GHD)..(CBU,IV3)199112-199505

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-36130iBU65,66..ARL;BU60,61,83,84..RHD..(T1,T3)..(ARL,GEN,GHD)..(CBU,IV3)198808-199505

main44416-36180iBU91..ARL;BU91..RHD..CBU;BU88,96..RHD..(ARL,GEN)..(CBU,IV3)198808-199703

main44416-36180iBU91..RHD..GEN..IV3199305-199309

HONGKONG SPEC OR W(POWER STEERING)

main44416-36190iBU96..CBU;BU88,91..LHD198808-199505

main44416-36190iBU96..LHD..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main90445-18136iBU96..LHD..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

main90445-18136iBU88,91,96..(ARL,GEN)..(CBU,IV3)198808-199703

main90447-18038iBU66..T2;BU65,66..ARL;BU60,66..T3..TS;BU61,67,83,84..(ARL,GEN,GHD)..(CBU,IV3)198808-199505

main90447-18038iBU66..T3..TB..GEN199309-199505

THAIWAN SPEC

main90447-18038iBU66..T3..TB199305-199309

TAIWAN SPEC OR W(POWER STEERING)

44417TUBE, RETURN, NO.2

main44417-36120iBU60..T3;BU65..ARL;BU61,66,83,84,88,91,96..5F..(ARL,GEN,GHD)..(CBU,IV3)198808-198911

sub44417-36121

main44417-36121iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..5F..(ARL,GEN,GHD)..(CBU,IV3)198911-199703

main44417-36121iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

TAIWAN SPEC OR W(POWER STEERING)

main44417-36121iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main44417-36130iBU66..ARL198808-198911

sub44417-36131

main44417-36131iBU66..ARL198911-199204

44417DHOSE(FOR RETURN TUBE TO RESERVOIR)

main90445-18132iBU66..TS;BU66..T2;BU65..ARL;BU61,67,84..(ARL,GEN)..(CBU,IV3)199305-199309

TAIWAN SPEC OR W(POWER STEERING)

main90445-18132iBU65..ARL;BU61,66,67,84..ARL,GEN198808-199505

main90445-18139iBU60,83..T3198808-199505

main90447-18037iBU91..ARL;BU91,96..CBU;BU88..CBU,IV3;BU91..LHD..IV3;BU96..RHD..GEN198808-199703

main90447-18037iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90447-18037iBU96..LHD..IV3199305-199309

TAIWAN SPEC OR W(POWER STEERING)

44423TUBE, OIL PUMP TO GEAR BOX

main44423-36180iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main44423-36180iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main44423-36180iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

TAIWAN SPEC OR W(POWER STEERING)

44423FBOLT, UNION

main90401-16004iBU60..T3;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU61,66,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)198808-199310

sub90401-16027

main90401-16004iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

sub90401-16027

main90401-16004iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

TAIWAN SPEC OR W(POWER STEERING)

sub90401-16027

main90401-16027iBU96..LHD..IV3;BU91..RHD..GEN..IV3199310-199703

main90404-16024iBU91,96..TD199004-199305

44423GGASKET, UNION BOLT

main90430-16168iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90430-16168iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90430-16168iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

TAIWAN SPEC OR W(POWER STEERING)

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-36160iBU60..T3;BU65..ARL;BU61,66,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-198911

sub44447-36161

main44447-36161iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

TAIWAN SPEC OR W(POWER STEERING)

main44447-36161iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198911-199703

main44447-36161iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

44457CBRACKET, POWER STEERING TUBE SUPPORT, NO.1

main44457-36040iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

9011908086

main90119-08086

9046110633

main90461-10633

9046716008

main90467-16008

9046721005

main90467-21005

9161160616

main91611-60616

9161160630

main91611-60630

9161160820

main91611-60820

9161161040

main91611-61040

9165140820

main91651-40820

9165160620

main91651-60620

9165160816

main91651-60816

9165160820

main91651-60820

9165161022

main91651-61022

9699114080

main96991-14080

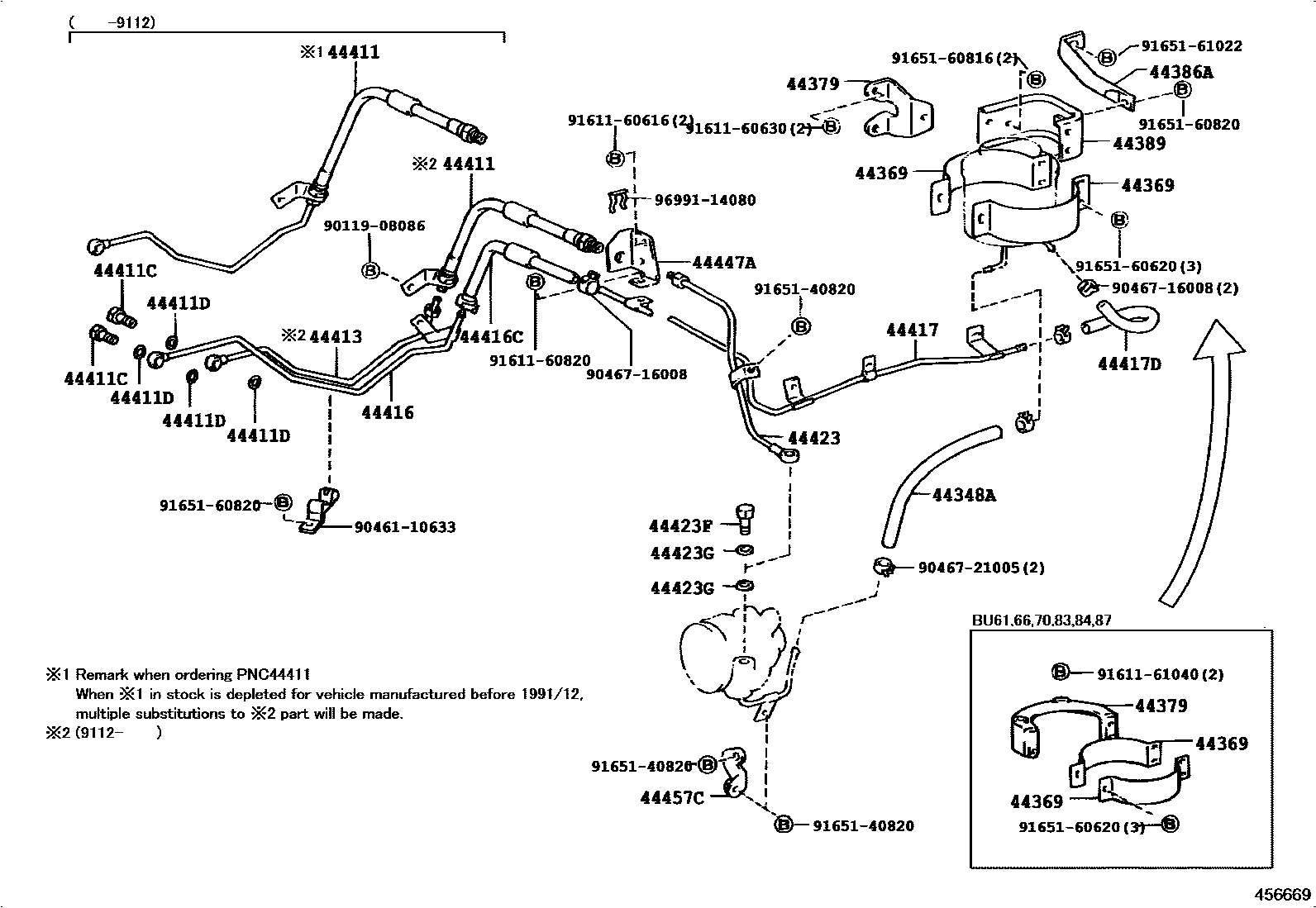

32 parts on this diagram · 4 diagrams in section
