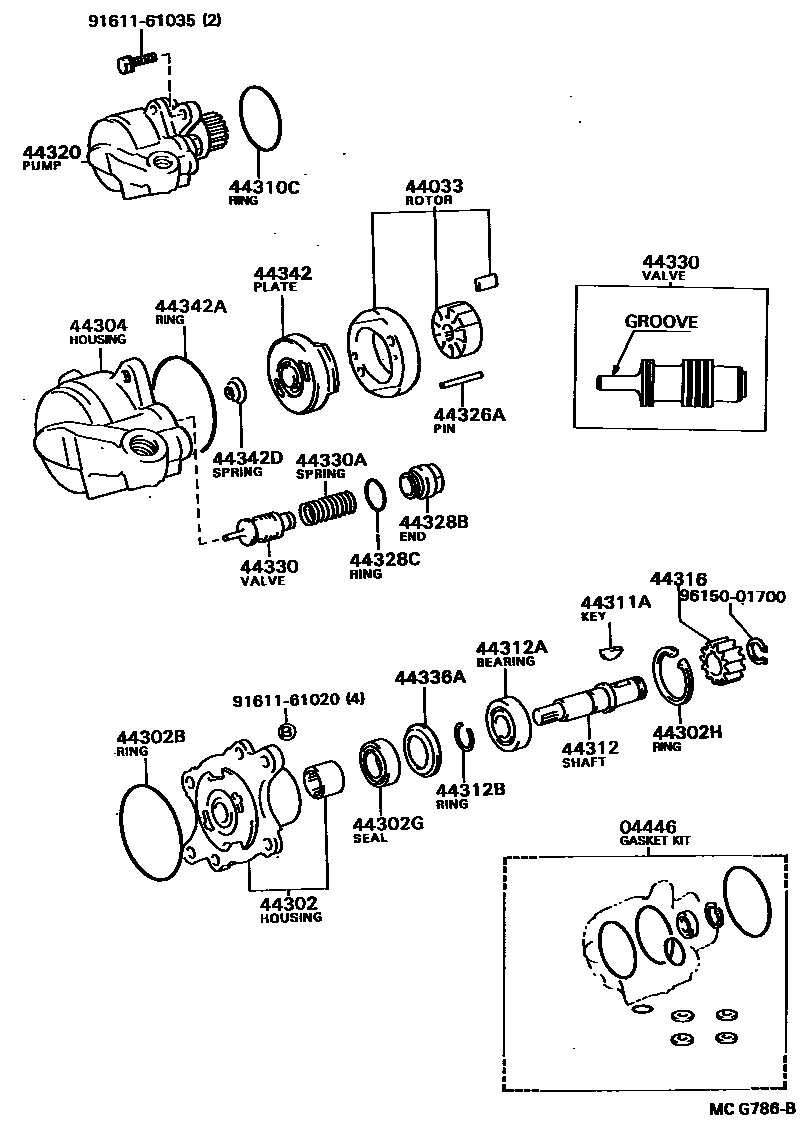

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-36050iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199106

sub04446-36080

main04446-36080iBU91..RHD..GEN..IV3199112-199202

HONGKONG SPEC OR W(POWER STEERING)

sub04446-36081

main04446-36080iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)199106-199112

sub04446-36081

main04446-36081iBU66,96..LHD..T3..TB..IV3199305-199505

TAIWAN SPEC OR W(POWER STEERING)

main04446-36081iBU60..T3;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU61,66,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199202-199703

main04446-36081iBU91..RHD..GEN..IV3199202-199309

HONGKONG SPEC OR W(POWER STEERING)

44033ROTOR SUB-ASSY, W/CAM & VANE

main44033-36030iBU60..T3;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU61,66,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199502

TAIWAN SPEC OR W(POWER STEERING)

sub44033-36060

main44033-36030iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199305

sub44033-36060

main44033-36030iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

sub44033-36060

main44033-36060iBU91..RHD..GEN..IV3199502-199505

TAIWAN SPEC OR W(POWER STEERING)

main44033-36060iBU60..T3;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU61,66,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199502-199703

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-36160iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199502

TAIWAN SPEC OR W(POWER STEERING)

sub44302-36210

main44302-36160iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199305

sub44302-36210

main44302-36160iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

sub44302-36210

main44302-36210iBU91..RHD..GEN..IV3199502-199505

TAIWAN SPEC OR W(POWER STEERING)

main44302-36210iBU60..T3;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU61,66,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199502-199703

44302BRING, O, NO.1(FOR VANE PUMP HOUSING)

main90029-20003iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90029-20003iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90029-20003iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90029-21004iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199104

main90029-21018iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)199104-199703

main90029-21018iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90029-21018iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)

main96151-04000iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main96151-04000iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main96151-04000iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44304HOUSING SUB-ASSY, VANE PUMP, REAR

main44304-36160iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

main44304-36160iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main44304-36160iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

44310CRING, O(FOR VANE PUMP)

main90301-60002iBU60..T3;BU91..CBU;BU65,91..ARL;BU91..LHD..IV3;BU61,66,67,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90301-60002iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90301-60002iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44311AKEY, VANE PUMP PULLEY

main90029-18001iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90029-18001iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90029-18001iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44312SHAFT, VANE PUMP

main44312-36110iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main44312-36110iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main44312-36110iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44312ABEARING(FOR VANE PUMP SHAFT)

main90029-36003iBU60..T3;BU91..CBU;BU65,91..ARL;BU91..LHD..IV3;BU61,66,67,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90029-36003iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90029-36003iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90029-52402iBU60..T3;BU91..CBU;BU65,91..ARL;BU91..LHD..IV3;BU61,66,67,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90029-52402iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90029-52402iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44316GEAR, VANE PUMP

main44316-36020iBU91..RHD..GEN..IV3199305-199505

TAIWAN SPEC OR W(POWER STEERING)

main44316-36020iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main44316-36020iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

44320PUMP ASSY, VANE

main44310-36180iBU88..CBU,IV3198808-199703

main44310-36190iBU96..GEN;BU91..ARL;BU91..CBU;BU91..LHD..IV3198808-199505

main44310-36190iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main44310-36190iBU91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN199305-199505

TAIWAN SPEC OR W(POWER STEERING)

main44310-36200iBU60..T3;BU65..ARL;BU61,66,67,83,84..ARL,GEN,GHD198808-199505

main44310-36200iBU66..T2;BU65..ARL;BU60,66..T3..TS;BU61,67,83,84..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

TAIWAN SPEC OR W(POWER STEERING)

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main44347-89101iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

L=29.1

main44347-89101iBU91..RHD..GEN..IV3199112-199309

L=29.1,HONGKONG SPEC OR W(POWER STEERING)

main44347-89101iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

L=29.1,TAIWAN SPEC OR W(POWER STEERING)

44328BEND, VANE PUMP HOUSING

main44328-89101iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

subS4432-61180

main44328-89101iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

subS4432-61180

main44328-89101iBU60..T3;BU91..CBU;BU65,91..ARL;BU91..LHD..IV3;BU61,66,67,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

subS4432-61180

44328CRING, O(FOR PUMP HOUSING END)

main96711-19020iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

main96711-19020iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main96711-19020iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

44330VALVE ASSY, FLOW CONTROL

main44330-36021iBU60..T3;BU65..ARL;BU61,66,67,83,84..ARL,GEN,GHD198808-199505

TWO GROOVE

main44330-36021iBU66..T2;BU65..ARL;BU60,66..T3..TS;BU61,67,83,84..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

TWO GROOVE,TAIWAN SPEC OR W(POWER STEERING)

main44330-36030iBU66..T3..TB199305-199309

ONE GROOVE,TAIWAN SPEC OR W(POWER STEERING)

main44330-36030iBU66..T2;BU65..ARL;BU60,66..T3..TS;BU61,67,83,84..(ARL,GEN,GHD)..(CBU,IV3)198808-199505

ONE GROOVE

main44330-36040iBU66..T2;BU65..ARL;BU60,66..T3..TS;BU61,67,83,84..(ARL,GEN,GHD)..(CBU,IV3)199305-199309

NO GROOVE,TAIWAN SPEC OR W(POWER STEERING)

main44330-36040iBU60..T3;BU65..ARL;BU61,66,67,83,84..(ARL,GEN,GHD)..(CBU,IV3)198808-199505

NO GROOVE

main44330-36050iBU88..CBU,IV3198808-199703

TWO GROOVE

main44330-36060iBU88..CBU,IV3198808-199703

ONE GROOVE

main44330-36070iBU88..CBU,IV3198808-199703

NO GROOVE

main44330-36110iBU91..RHD..GEN..IV3198808-199505

TWO GROOVE

main44330-36110iBU91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN199305-199505

TWO GROOVE,TAIWAN SPEC OR W(POWER STEERING)

main44330-36110iBU91..RHD..GEN..IV3199112-199309

TWO GROOVE,HONGKONG SPEC OR W(POWER STEERING)

main44330-36120iBU91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN199305-199505

ONE GROOVE,TAIWAN SPEC OR W(POWER STEERING)

main44330-36120iBU96..LHD..IV3198808-199505

ONE GROOVE

main44330-36120iBU91..RHD..GEN..IV3199112-199309

ONE GROOVE,HONGKONG SPEC OR W(POWER STEERING)

main44330-36130iBU91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN199305-199505

NO GROOVE,TAIWAN SPEC OR W(POWER STEERING)

main44330-36130iBU91,96..ARL,GEN198808-199505

NO GROOVE

main44330-36130iBU91..RHD..GEN..IV3199112-199309

NO GROOVE,HONGKONG SPEC OR W(POWER STEERING)

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90029-60002iBU96..LHD..IV3199305-199505

TAIWAN SPEC OR W(POWER STEERING)

main90029-60002iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90029-60002iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

44336ARETAINER, VANE PUMP OIL SEAL

main44336-89101iBU60..T3;BU91..CBU;BU65,91..ARL;BU91..LHD..IV3;BU61,66,67,83,84,88,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199305

main44336-89101iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main44336-89101iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199502

TAIWAN SPEC OR W(POWER STEERING)

44342PLATE, VANE PUMP SIDE, REAR

main44342-89102iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main44342-89102iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main44342-89102iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main96711-24060iBU96..LHD..IV3199305-199505

TAIWAN SPEC OR W(POWER STEERING)

main96711-24060iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main96711-24060iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

44342DSPRING, COMPRESSION(FOR PRESSURE PLATE)

main90029-60003iBU60..T3;BU65..ARL;BU61,66,67,83,84,88,91,96..(ARL,GEN,GHD)..(CBU,IV3)198808-199703

main90029-60003iBU91..RHD..GEN..IV3199112-199309

HONGKONG SPEC OR W(POWER STEERING)

main90029-60003iBU66..T2;BU65,91..ARL;BU91,96..CBU;BU91..LHD..IV3;BU96..RHD..GEN;BU60,66..T3..TS;BU61,67,83,84,88..(ARL,GEN,GHD)..(CBU,IV3)199305-199505

TAIWAN SPEC OR W(POWER STEERING)

9161161020

main91611-61020

9161161035

main91611-61035

9615001700

main96150-01700

26 parts on this diagram · 2 diagrams in section
