FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024iBU66..T2;BU60,61,66,70..ST198808-199505

RH

main90942-02025iBU66..T2;BU60,61,66,70..ST198808-199505

LH

main90942-02045iBU88..RHD..GEN..IV3198808-199703

RH

main90942-02046iBU91,96;BU88,94..IV1198808-199703

LH

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10035iBU66..T2;BU60,61,66,70..ST198808-199505

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-36110iBU66..T2;BU60,61,66,70..ST198808-199505

main43510-36131iBU66..T3..WT;BU60,61,65,67,8#..WT..(CBU,IV3)198808-199703

main43510-36140iBU91,96..DSL198808-199008

main43510-36151iBU88..LHD..IV3199110-199505

VENEZUELA SPEC

main43510-36151iBU88..LHD..IV3199301-199310

VENEZUELA SPEC & W(FRONT DRUM BRAKE)

main43510-36151iBU88..RHD..GEN..IV3198808-198809

INDIA SPEC OR HONGKONG SPEC

main43510-36151iBU88,94..IV1198808-199703

main43510-36151iBU88..RHD..GEN..IV3198809-199703

INDIA, BANGRADESH OR HONG KONG SPEC

main43510-36170iBU91,96..TD199004-199505

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90033-19001iBU91,96198808-199505

main90311-68001iBU6#,70,8#,94198808-199703

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-42045iBU6#,70,8#,94198808-199703

main90368-50001iBU91,96198808-199505

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-28001iBU6#,70,8#,94198808-199703

main90368-35001iBU91,96198808-199505

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-27001iBU6#,70,8#,94198808-199703

main90214-33001iBU91,96198808-199505

43510ENUT (FOR STEERING KNUCKLE)

main90170-26001iBU6#,70,8#,94198808-199703

main90171-33001iBU91,96198808-199505

43510FRING, SHAFT SNAP (FOR FRONT AXLE HUB)

main90520-99065iBU66..T2;BU60,61,66,70..ST198808-199505

T=1.60

43512DISC, FRONT

main43512-36070iBU88..LHD..IV3198808-199703

43512BDRUM, BRAKE

main43512-36060iBU66..T2;BU60,61,66,70..ST198808-199505

main43512-36101iBU66..T3..WT;BU60,61,65,67,8#,94..WT198808-199703

main43512-36110iBU91,96..DSL198808-199008

main43512-36120iBU91,96..TD199004-199505

43514CAP, FRONT HUB GREASE

main43514-36030iBU6#,70,8#,94198808-199703

main43514-37020iBU91,96198808-199505

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43520-36110iBU66..T2;BU60,61,66,70..ST198808-199505

main43520-36131iBU66..T3..WT;BU60,61,65,67,8#..WT..(CBU,IV3)198808-199703

main43520-36140iBU91,96..DSL198808-199008

main43520-36151iBU88,94..IV1198808-199703

main43520-36151iBU88..RHD..GEN..IV3198808-198809

INDIA SPEC OR HONGKONG SPEC

main43520-36151iBU88..LHD..IV3199110-199505

VENEZUELA SPEC

main43520-36151iBU88..LHD..IV3199301-199310

VENEZUELA SPEC & W(FRONT DRUM BRAKE)

main43520-36151iBU88..RHD..GEN..IV3198809-199703

INDIA, BANGRADESH OR HONG KONG SPEC

main43520-36170iBU91,96199004-199505

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-36010iBU6#,70,8#,94198808-199703

9025205001

main90252-05001

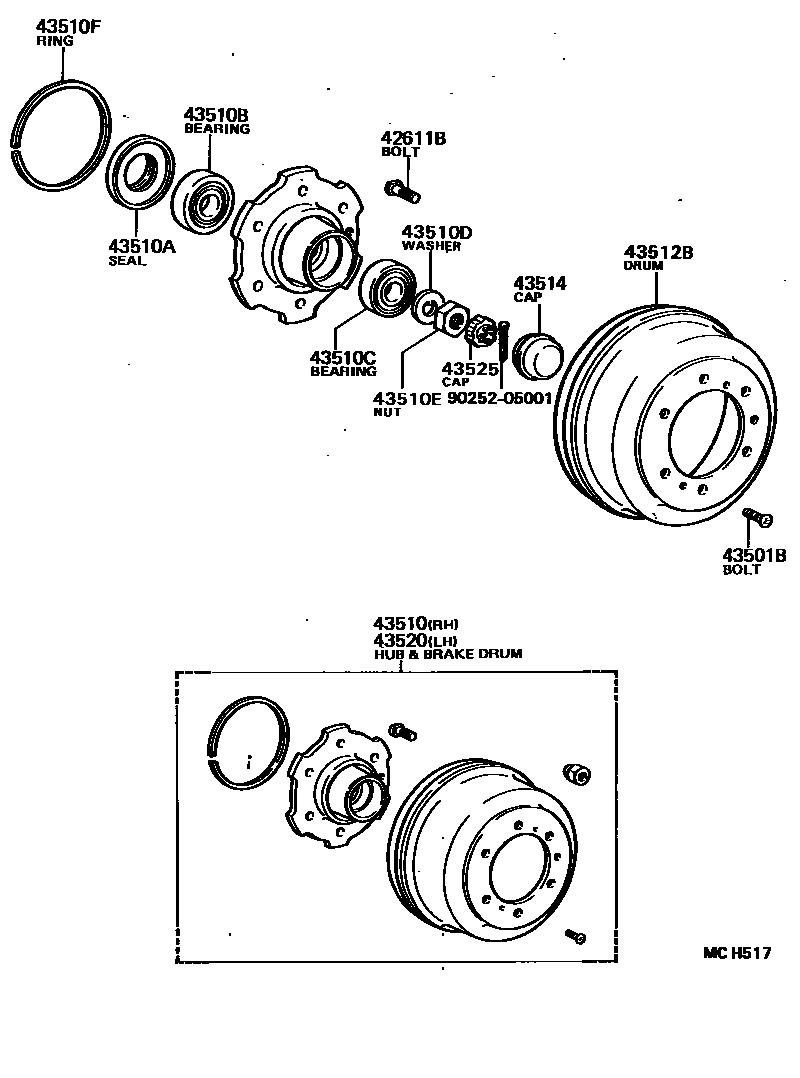

15 parts on this diagram · 4 diagrams in section
