OIL COOLER & TUBE (ATM)

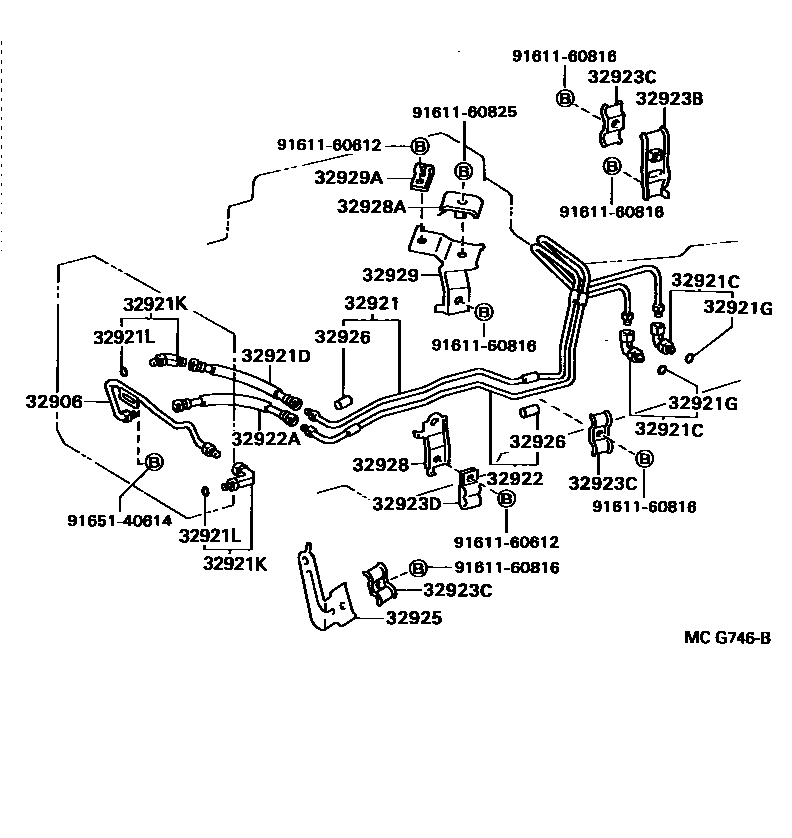

Parts diagram

32906TUBE SUB-ASSY, OIL COOLER

main32906-36015i198808-198910

main32906-36081i198910-199112

32921TUBE, OIL COOLER INLET, NO.1

main32921-36060i198808-198910

main32921-36080i198910-199112

main32921-36100i199112-199204

32921CUNION(FOR OIL COOLER TUBE)

main90407-16006×2i198808-199204

32921DHOSE(FOR OIL COOLER INLET)

main32941-36050i198910-199112

main32941-60070i199112-199204

main32942-60040i198808-198910

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2i198808-199204

32921KUNION, NO.2(FOR OIL COOLER TUBE)

main90407-14005i198910-199112

RADIATOR SIDE RH

main90407-14016i198808-199112

RADIATOR SIDE LH

main90407-14018i198808-198910

RADIATOR SIDE RH

32921LRING, O(FOR OIL COOLER TUBE UNION NO.2)

main90301-11006×2i198808-199112

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-36060i198808-198910

main32922-36080i198910-199112

main32922-36110i199112-199204

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-28170i199112-199204

main32942-36020i198808-198910

main32942-60010i198910-199112

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-36010i198808-199204

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12038×3i198808-199204

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

main90461-08616i198808-199204

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-36011i198808-198910

main32925-36050i198910-199204

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-36050×8i198808-199204

L=45,ID=10

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-36040i198808-199204

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90949-01189i198808-199204

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-36010i198808-199204

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-08429i198808-199204

9161160612

main91611-60612

9161160816

main91611-60816

9161160825

main91611-60825

9165140614

main91651-40614

22 parts on this diagram · 2 diagrams in section
