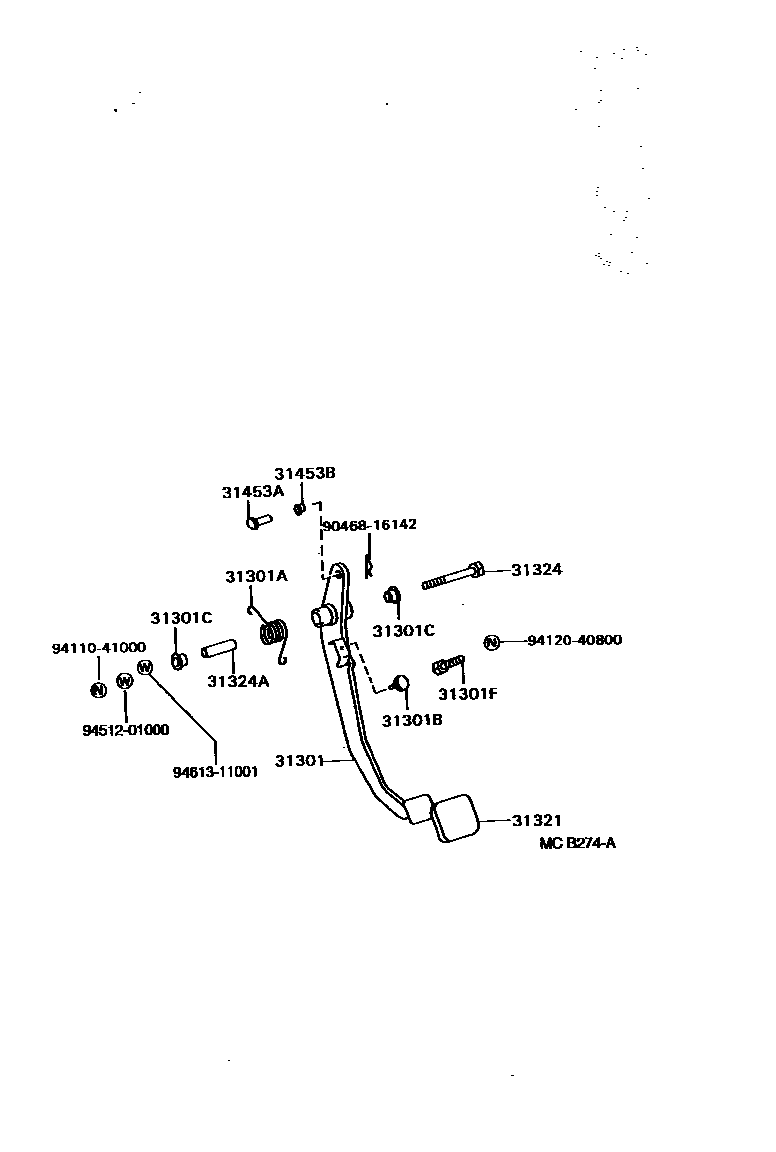

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1TURN OVER TTPE 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-36110iBU88,91,96..DSL..GEN..(CBU,IV3)198808-199703

W(CLUTCH BOOSTER)

main31301-36110iBU91,96..TD199004-199305

main31301-36120iBU88,9#..DSL198808-199703

main31301-36150iBU66..GEN;BU60,61,65,67,70,83,84,87198808-199505

main31301-36160iBU67199004-199210

W(CLUTCH BOOSTER)

main31301-36160iBU66..ARL199309-199505

main31310-37010iBU66..GEN199404-199505

TAIWAN SPEC

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35004iBU6#,70,8#,9#..5F198808-199404

main90508-35004iBU66..GEN199404-199505

TAIWAN SPEC,NO.1

main90508-35004iBU60,61,65,66,70,8#,9#199404-199703

NO.1

main90949-03010iBU66..GEN199404-199505

NO.2

main90949-03010iBU67199404-199505

TAIWAN SPEC,NO.2

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iBU6#,70,8#,9#..5F198808-199008

main90541-06036iBU6#,70,8#,9#..5F199008-199703

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007iBU6#,70,8#,9#..5F198808-199703

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iBU91,96..SA;BU66..T3..TB..5F;BU88..GEN..(CBU,IV3);BU60,61,65,67,70,83,84,87..ARL,GEN,GHD198808-199703

31321PAD, CLUTCH PEDAL

main31321-36010iBU6#,70,8#,9#..5F198808-199703

31324SHAFT, CLUTCH PEDAL

main91121-51070iBU6#,70,8#,9#..5F198808-199703

main91121-51075iBU66..GEN199404-199505

TAIWAN SPEC

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iBU6#,70,8#,9#..5F198808-199703

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iBU6#,70,8#,9#..5F198808-199703

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iBU6#,70,8#,9#..5F198808-199703

9046816142

main90468-16142

9411041000

main94110-41000

9412040800

main94120-40800

9451201000

main94512-01000

9461311001

main94613-11001

15 parts on this diagram · 4 diagrams in section
