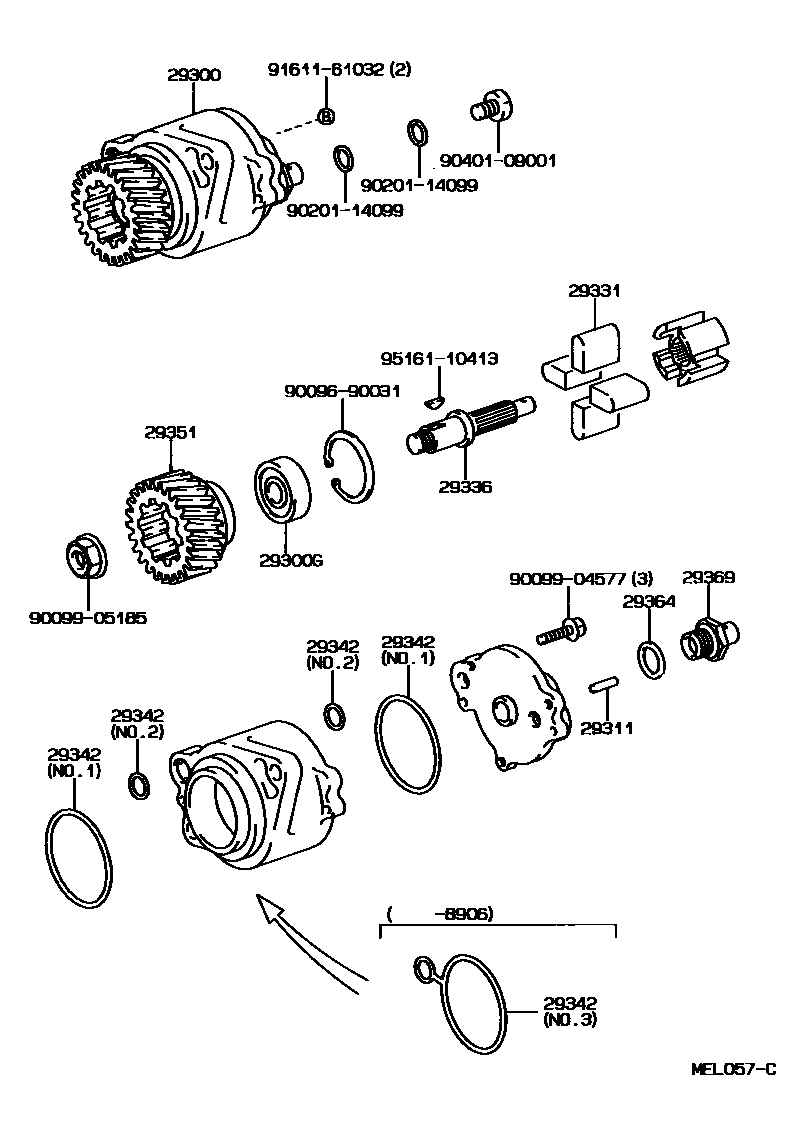

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-58050i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199703

sub29300-58060

29300GBEARING, BALL

main90099-10185i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199703

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199703

29331BLADE, VACUUM PUMP, A

main29331-58050×4i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199405

main29331-67020×5i14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94199405-199703

29336SHAFT, VACUUM PUMP

main29336-58050i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199703

29342PACKING, VACUUM PUMP

main29342-58010i14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-198906

NO.1

main29342-58020i14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-198906

NO.2

main29342-58050i14B..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-198906

NO.3

main29342-64010×2i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198906-199703

NO.2

29351GEAR, VACUUM PUMP

main29351-58050i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199703

29364WASHER, VACUUM PUMP

main29364-66010i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199703

29369VALVE SUB-ASSY, CHECK

main29369-64030i14B#..BU91,96..ARL,GEN;B,11B,14B..BU6#,70,8#,94198808-199703

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

9020114099

main90201-14099

9040109001

main90401-09001

9161161032

main91611-61032

9516110413

main95161-10413

16 parts on this diagram · 1 diagram in section
