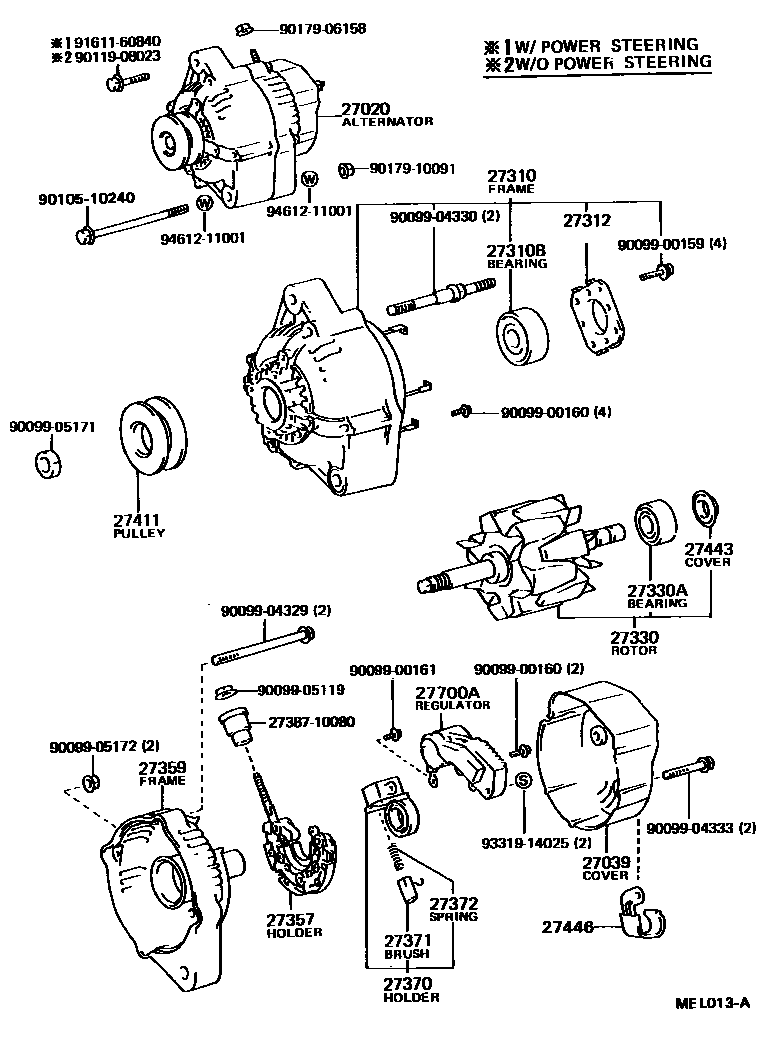

ALTERNATOR

0001 112V 45A,50A 0002 124V 30A

27020ALTERNATOR ASSY

main27060-58010i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199202

12V 45A

main27060-58020i11B..BU84..LHD198808-199309

24V 30A,CHINA SPEC

main27060-58180i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#199202-199309

12V 50A

main27060-58210i11B..BU65..CBU;B,11B,14B..BU60,61,66,67,70,8#,9#199309-199703

12V 50A

main27060-58220i11B..BU84..LHD199309-199505

24V 30A,CHINA SPEC

27039COVER, ALTERNATOR REAR END

main27039-72010i11B..BU84..LHD198808-199309

ALGERIA SPEC

sub27039-15170

main27039-72150i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199703

main27039-73020i11B..BU84..LHD199309-199505

ALGERIA SPEC

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-58040i11B..BU84..LHD198808-199505

ALGERIA SPEC

main27310-72150i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199105

main27310-72151i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#199105-199202

main27310-72171i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#199202-199703

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10170i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199105

main90099-10178iB..BU60..TW1..GEN;B,14B..BU60,83,88,91..LHD..WT198808-199505

ALGERIA SPEC

main90099-10198i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#199105-199703

sub90099-10229

27312PLATE, RETAINER

main27312-70200i11B..BU84..LHD198808-199505

ALGERIA SPEC

main27312-72120i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199703

27330ROTOR ASSY, ALTERNATOR

main27330-58040i11B..BU84..LHD198808-199505

ALGERIA SPEC

main27330-72150i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199703

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i11B..BU84..LHD198808-199505

ALGERIA SPEC

main90099-10154i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199703

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i11B..BU84..LHD198808-199505

ALGERIA SPEC

main27357-72150i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199703

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16180i11B..BU84..LHD198808-199505

ALGERIA SPEC

sub27359-16181

sub27384-16380

main27359-72150i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199703

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i11B..BU84..LHD199309-199505

ALGERIA SPEC

main27370-63021iB,11B,14B#..BU6#,70,8#,9#198808-199105

main27370-70300i14B..BU91,96..RHD..GEN..IV3199112-199309

HONG KONG SPEC

27371BRUSH, ALTERNATOR

main27371-63020×2iB,11B,14B#..BU6#,70,8#,9#198808-199105

main27371-70300×2iB,11B,14B#..BU6#,70,8#,9#199105-199703

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2iB,11B,14B#..BU6#,70,8#,9#198808-199703

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-58040i11B..BU65..IV3198808-199505

ALGERIA SPEC

main27411-58060i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199703

27443COVER, ALTERNATOR BEARING

main27443-63020iB,11B,14B#..BU6#,70,8#,9#198808-199703

27446CLIP, ALTERNATOR CORD

main27446-58050i11B..BU84..LHD198808-199505

ALGERIA SPEC

main27446-58060i11B..BU65..CBU;B,11B,14B..BU60,61,66,70,8#,9#198808-198810

main27446-58140i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198810-199703

27700AREGULATOR ASSY, GENERATOR

main27700-10071i11B..BU65..CBU;B,11B,14B#..BU60,61,66,67,70,8#,9#198808-199309

sub27700-58030

main27700-58020i11B..BU84..LHD198808-199309

ALGERIA SPEC

main27700-58040i14B..BU91,96..RHD..GEN..IV3199309-199505

ALGERIA SPEC

sub27700-58060

main27700-58050i14B..BU88,94199505-199608

main27700-58070i14B..BU88,94199608-199703

2738710080INSULATOR, TERMINAL

main27387-10080

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510240

main90105-10240

9011908023

main90119-08023

9017906158

main90179-06158

9017910091

main90179-10091

9161160840

main91611-60840

9331914025

main93319-14025

9461211001

main94612-11001

33 parts on this diagram · 2 diagrams in section
