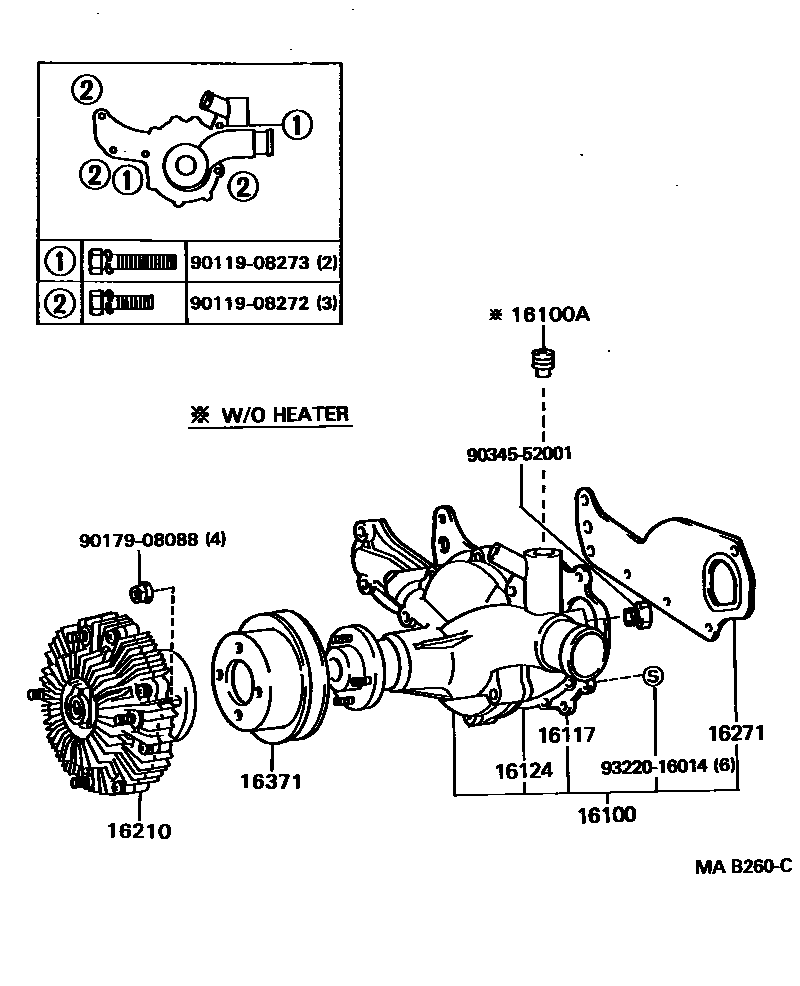

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-59165i11B..BU61..ST..CBU;11B,14B..BU61,91..RHD..GEN..IV3198808-199505

THAILAND SPEC

sub16100-59166

sub16100-59245

main16100-59165i14B..BU66,88,96..LHD..T3..TB..IV3198808-199505

TAIWAN SPEC

sub16100-59166

sub16100-59245

main16100-59165i14BT..BU91,96;11B..BU61..IV1;11B,14B..BU61,65,66,87,88,91..ARL,GHD198808-199505

sub16100-59166

sub16100-59245

main16100-59175i11B..BU61..GEN..(CBU,IV3);11B,14B..BU65,88,91..GEN,SA;B,11B,14B..BU60,66,70,83,84,94,96..5F198808-199505

sub16100-59265

main16100-59176i14B..BU88,94199505-199703

16100APLUG, WATER PUMP

main90345-54005i11B..BU65..GEN..CBU;14B..BU66..T3..TB..GEN;B,11B,14B..BU60,61,67,70,8#,9#..GEN,GHD198808-199703

16117PLATE, WATER PUMP

main16117-58010iB,11B,14B#..BU60,61,65,66,70,8#,9#198808-199703

16124GASKET, WATER PUMP COVER

main16124-58010iB,11B,14B#..BU60,61,65,66,70,8#,9#198808-199703

16210COUPLING ASSY, FLUID

main16210-58030i14B..BU91..RHD..GEN..IV3198808-199505

16271GASKET, WATER PUMP

main16271-56030iB,11B,14B#..BU6#,70,8#,9#198808-199304

sub16271-56031

main16271-56031iB,11B,14B#..BU6#,70,8#,9#199304-199703

sub16271-58010

16371PULLEY, FAN

main16371-56060i11B..BU61..ST..CBU;11B,14B..BU61,91..RHD..GEN..IV3198808-199505

THAILAND SPEC

main16371-56060i14B..BU66,88..LHD..IV3198808-199505

TAIWAN SPEC

main16371-56070i14B..BU88198808-199703

main16371-58060i14BT..BU91,96199004-199505

9011908272

main90119-08272

9011908273

main90119-08273

9017908088

main90179-08088

9034552001

main90345-52001

9322016014

main93220-16014

12 parts on this diagram · 1 diagram in section
