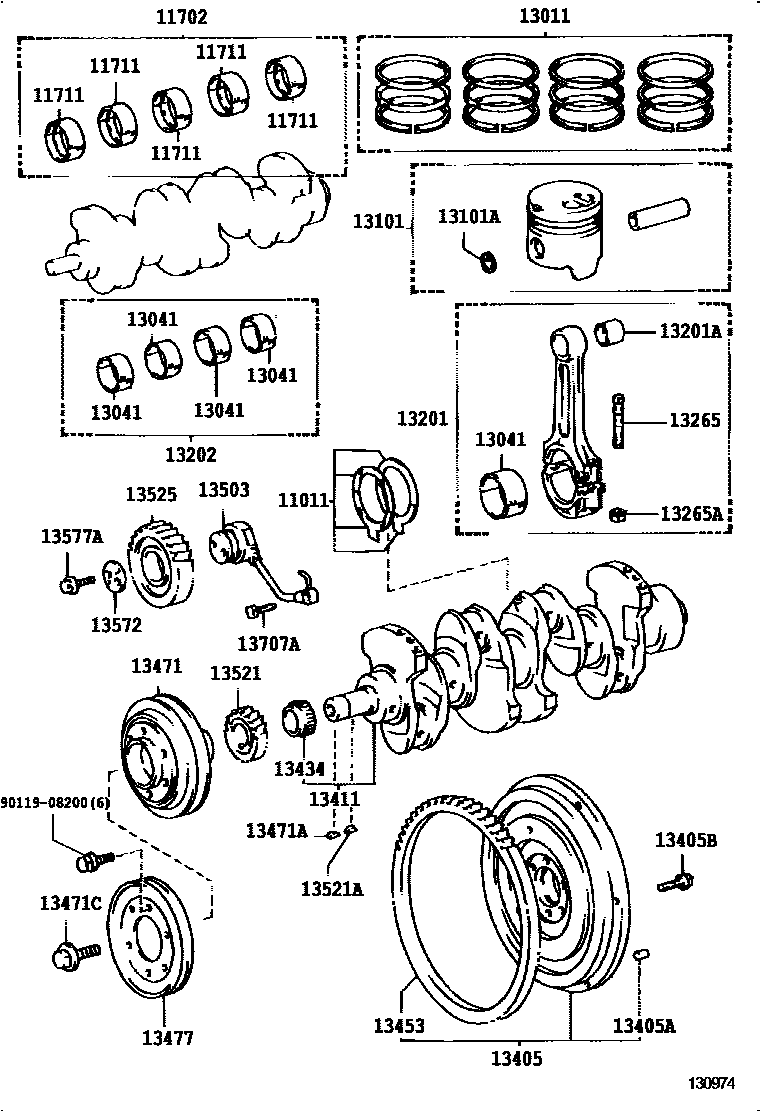

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
11702BEARING SET, CRANKSHAFT
11711BEARING, CRANKSHAFT
13011RING SET, PISTON
STD
STD
STD
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
sub13041-58020
MARK2,REFER REPAIR MANUAL
sub13041-58020
13101PISTON SUB-ASSY, W/PIN
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
STD,MARK1,REFER REPAIR MANUAL
STD,MARK2,REFER REPAIR MANUAL
STD,MARK3,REFER REPAIR MANUAL
STD,MARK 1,REFER REPAIR MANUAL
STD,MARK 2,REFER REPAIR MANUAL
STD,MARK 3,REFER REPAIR MANUAL
O/S 0.50
O/S 0.50
O/S 0.50
O/S 0.75
O/S 0.75
O/S 0.75
O/S 1.00
O/S 1.00
O/S 1.00
13101ARING, HOLE SNAP(FOR PISTON PIN)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.50
U/S 1.00
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=15,OD=5
L=22,OD=10
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
sub13401-58050
13434SPLINE, OIL PUMP DRIVE
13453GEAR, FLYWHEEL RING
sub13453-56021
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13477PULLEY, CRANKSHAFT, NO.2
13503SHAFT SUB-ASSY, IDLE GEAR
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13525GEAR, IDLE, NO.1
13572PLATE, IDLE GEAR THRUST
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
13707AUNION(FOR OIL PIPE, NO.1)
9011908200
main90119-08200
30 parts on this diagram · 2 diagrams in section
