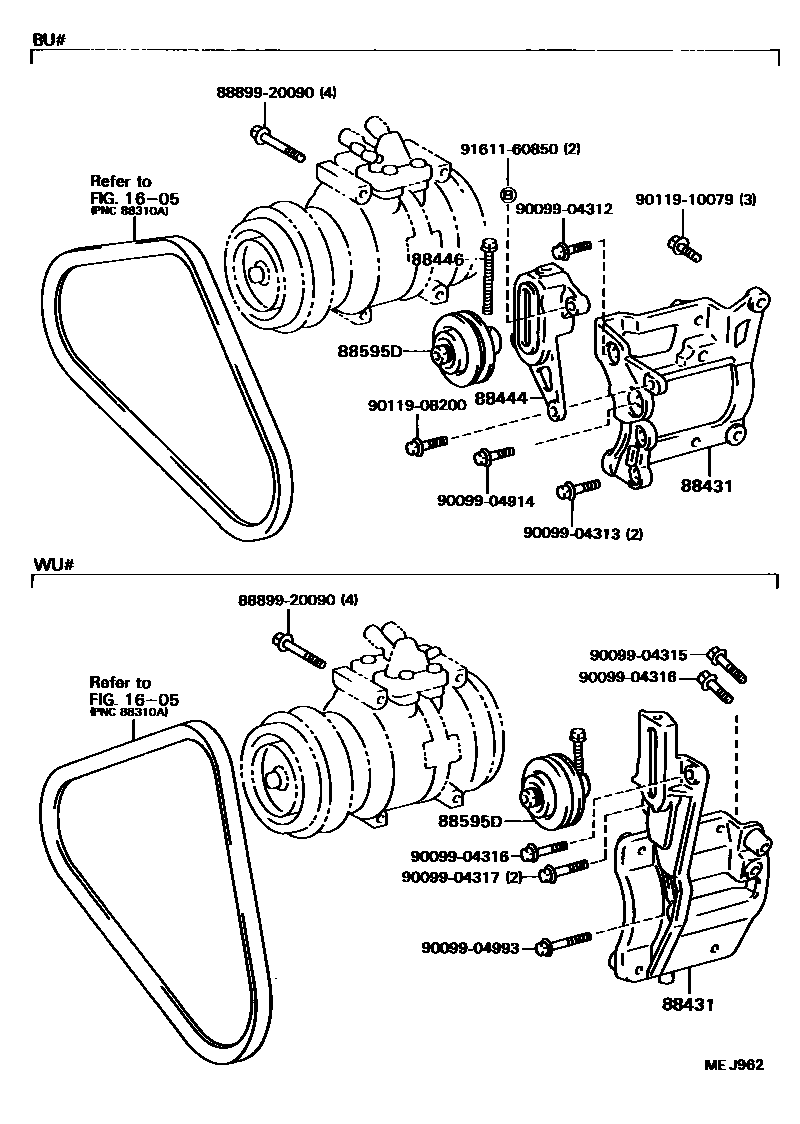

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-36190iBU85..RHD..GEN..(CBU,IV3)198708-198808

88444BRACKET, IDLE PULLEY

main88444-36110iBU81..SA198708-198808

88446BOLT, IDLE PULLEY

main88446-36010iBU85..RHD..GEN..(CBU,IV3)198708-198808

88595DPULLEY ASSY, IDLE

main88440-12160iBU81..SA198708-198808

8889920090COVER, EVAPORATOR

main88899-20090

9009904312

main90099-04312

9009904313

main90099-04313

9009904315

main90099-04315

9009904316

main90099-04316

9009904317

main90099-04317

9009904914

main90099-04914

9009904993

main90099-04993

9011908200

main90119-08200

9011910079

main90119-10079

9161160850

main91611-60850

16 parts on this diagram · 3 diagrams in section
