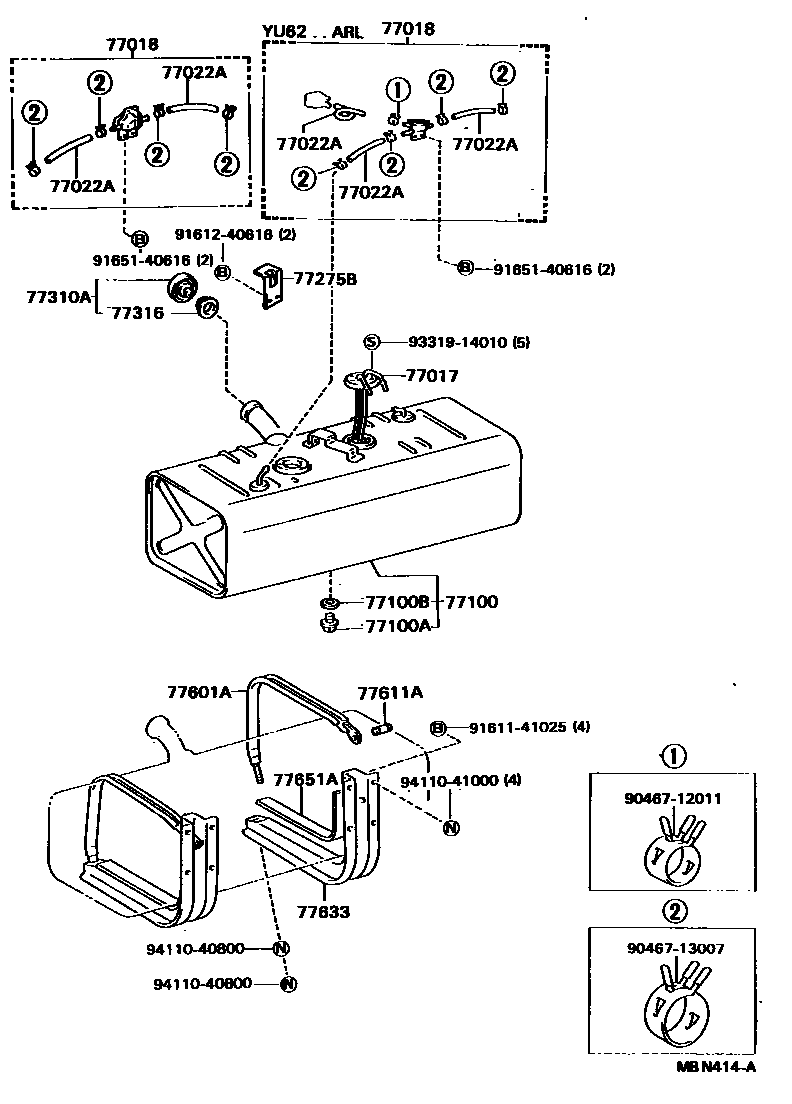

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-36111iBU61..ST..(CBU,IV3)198708-198808

main77017-36141iBU60..TW1198708-198808

main77017-36161iBU70198708-198808

main77017-36181iBU62,65,81,82,85,86198708-198808

main77017-36181iBU61..ST..(CBU,IV3)198708-198808

THAILAND SPEC

main77017-36201iBU60,80..T3198708-198808

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iBU70;BU60..TW1198708-198808

main77018-36230iBU60,85..T3..GEN;BU61,62,65,80,81,82,86198708-198808

main77018-55010iBU85..ARL198708-198808

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-08010iBU85..ARL198708-198808

L=100

main95333-08020iBU70;BU60..TW1198708-198808

L=200,ID=8

sub95337-08020

main95333-08030iBU85..ARL198708-198808

L=300

77100TANK ASSY, FUEL

main77001-36660iBU85..ARL198708-198808

main77001-3B020iBU60..TW1198708-198808

main77001-3B040iBU70198708-198808

main77001-3B070iBU61..ST..(CBU,IV3)198708-198808

main77001-3B090iBU61..IV1;BU62,65..5F;BU60..T3..ST198708-198808

THAILAND SPEC

main77001-3B100iBU60,61,62..TS..WT;BU8#,93..GEN,GHD,SA198708-198808

sub77001-3B101

77100APLUG(FOR FUEL TANK)

main90105-12018iBU85..ARL198708-198808

main90105-12116iBU85..GEN;BU6#,70,80,81,82,86198708-198808

77100BGASKET(FOR FUEL TANK)

main90430-12245iBU6#,70,8#198708-198808

77275BPROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE

main77275-36020iBU65198708-198808

77310ACAP ASSY, FUEL TANK

main77310-55080iBU65..CBU;BU60,61,62,70,8#198708-198808

sub77310-60100

77316GASKET, FUEL TANK CAP

main77316-27010iBU65..CBU;BU60,61,62,70,8#198708-198808

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-25090iBU70;BU60..TW1198708-198808

main77601-36090iBU61..ST..(CBU,IV3)198708-198808

main77601-36140iBU60..T3;BU61,62,8#..(T3,TW1)..(GEN,GHD,SA)..(CBU,IV3)198708-198808

sub77601-37030

main77601-36150iBU61..ST..(CBU,IV3)198708-198808

THAILAND SPEC

sub77601-37040

main77601-36150iBU65;BU62,93..RHD;BU61,85..ARL;BU61,85..IV1198708-198808

sub77601-37040

77611APIN (FOR FUEL TANK BAND)

main77629-36010iBU60..T3;BU61,62,65,8#,93198708-198808

main77653-25010iBU70;BU60..TW1198708-198808

77633STAY, FUEL TANK

main77501-25090iBU70;BU60..TW1198708-198808

sub77501-25091

main77501-36080iBU65;BU85..IV1198708-198808

main77633-36090iBU60..T3;BU61,62,8#..(T3,TW1)..(GEN,GHD,SA)..(CBU,IV3)198708-198808

sub77633-36091

main77633-36111iBU61..IV1;BU61,62,85..ARL198708-198808

THAILAND SPEC

sub77633-36112

main77633-36120iBU61..ST..(CBU,IV3)198708-198808

sub77633-36121

77651ACUSHION, FUEL TANK, NO.1

main77651-26040iBU70;BU60..TW1198708-198808

main77651-36100iBU61..ST..(CBU,IV3)198708-198808

THAILAND SPEC

main77651-36100iBU60..T3;BU61..IV1;BU61,62,8#..T3,TW1198708-198808

main77651-36110iBU65;BU61..ST..(CBU,IV3)198708-198808

9046712011

main90467-12011

9046713007

main90467-13007

9161141025

main91611-41025

9161240616

main91612-40616

9165140616

main91651-40616

9331914010

main93319-14010

9411040800

main94110-40800

9411041000

main94110-41000
