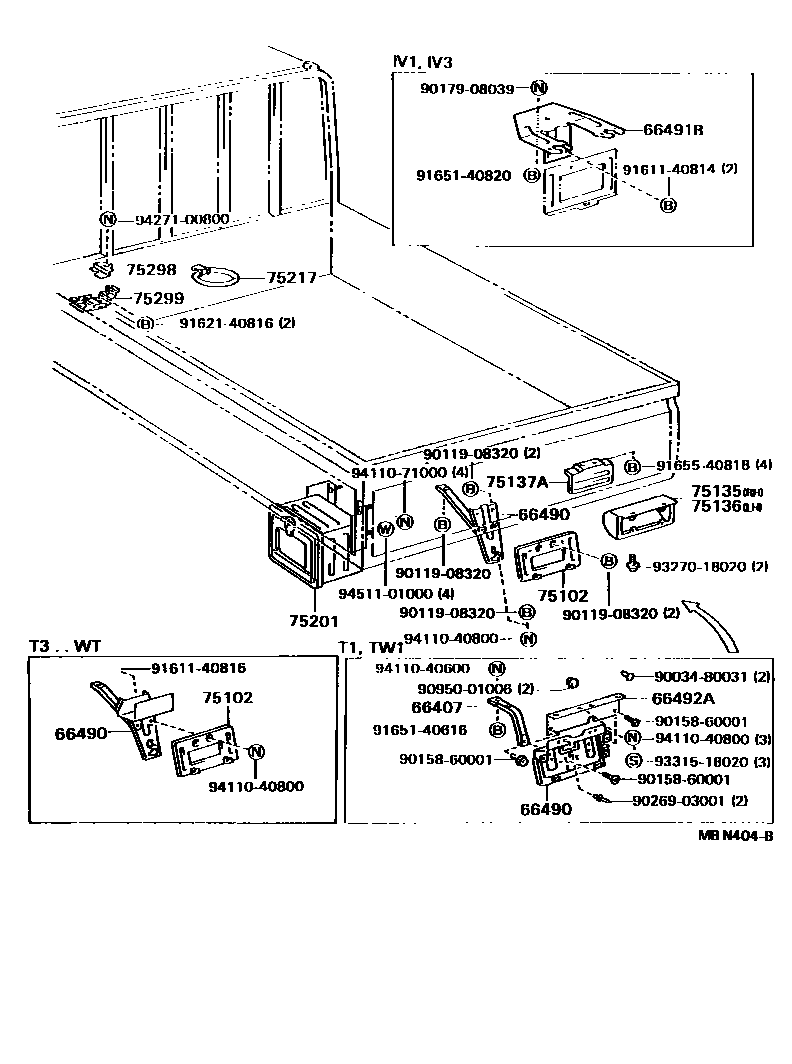

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1 0003 1 0004 1

66407STAY SUB-ASSY, LICENSE PLATE BRACKET

main66493-92703iBU60,61..(T1,TW1)..CBU198708-198802

sub66493-95418

main66493-92802iBU80,81..CBU198708-198808

main66493-95418iBU60,61..(T1,TW1)..CBU198802-198808

66490HANGER ASSY, LICENSE PLATE BRACKET

main66490-95018iBU60,61..(T1,TW1)..CBU198708-198808

main66490-95408iBU60..T3..ST..CBU198708-198808

main66490-95410iBU60,61..WT..CBU198708-198808

66491BHANGER, LICENSE PLATE BRACKET

main66491-95412iBU60,61,62,80,81,82..IV1,IV3198708-198808

66492ABRACKET, LICENSE HANGER

main66492-95400iBU60,61..(T1,TW1)..CBU198708-198808

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main66490-92802iBU85,86,93198708-198808

main75102-25020iBU60,61..T3;BU62,80,81,82..IV3;BU61..ST..(IV1,IV3)198708-198808

main75102-92605iBU70198708-198808

main75102-92800iBU65..CBU198708-198808

main75102-92801iBU80,81..CBU198708-198808

75135BRACKET, COMBINATION REAR LAMP, RH

main75105-92700iBU80,81,85,86..CBU198708-198808

W(SCHNORKEL)

sub75105-37030

main75105-92802iBU80..GEN..CBU198708-198808

W(*STAC)

main75105-93100iBU65198708-198808

main75135-95412iBU60,61..T3..CBU198708-198808

75136BRACKET, COMBINATION REAR LAMP, LH

main75105-92700iBU80,81,85,86..CBU198708-198808

W(SCHNORKEL)

sub75105-37030

main75106-92802iBU80..GEN..CBU198708-198808

W(*STAC)

main75106-93100iBU65198708-198808

main75135-95412iBU60,61..T3..CBU198708-198808

75137ACOVER COMBINATION

main75137-93100iBU65198708-198808

main75137-95400iBU60,61..CBU198708-198808

75201BOX SUB-ASSY, TOOL W/STAY

main75021-93106iBU65198708-198808

main75210-92704iBU60,61,62..GEN..IV3198708-198808

main75210-92804iBU80,81,85..CBU198708-198808

75217BAND, TOOL BAG

main58705-92600iBU70..V198708-198808

main58705-92601iBU70..BUS198708-198808

main58705-95A01iBU6#,8#198708-198808

75298PLATE, JACK HOLDER

main75298-95400iBU60..T3;BU61,62,65,70,80,81,82,85..GEN,GHD,SA198708-198808

main75298-95402iBU80..LHD..IV3198711-198808

SWITZERLAND SPEC

75299BASE, JACK HOLDER

main75209-95406iBU80..LHD..IV3198711-198808

SWITZERLAND SPEC

main75299-92600iBU70..BUS198708-198808

sub75299-95401

main75299-95400iBU6#,80,81,82..WT..(GEN,GHD,SA)198708-198808

main75299-95401iBU60,61,62..(T1,T3)..ST198708-198808

sub75299-37060

main75299-95402iBU85,93..GEN198708-198808

main75299-95404iBU61,62,65..ARL198708-198710

main75299-95405iBU85..T3..ARL198708-198808

main75299-95407iBU61,62,65..ARL198710-198808

9003480031

main90034-80031

9011908320

main90119-08320

9015860001

main90158-60001

9017908039

main90179-08039

9026903001

main90269-03001

9095001006

main90950-01006

9161140814

main91611-40814

9161140816

main91611-40816

9162140816

main91621-40816

9165140616

main91651-40616

9165140820

main91651-40820

9165540818

main91655-40818

9327018020

main93270-18020

9331518020

main93315-18020

9411040600

main94110-40600

9411040800

main94110-40800

9411040811

main94110-40811

9411071000

main94110-71000

9427100800

main94271-00800

9451101000

main94511-01000

32 parts on this diagram · 4 diagrams in section
