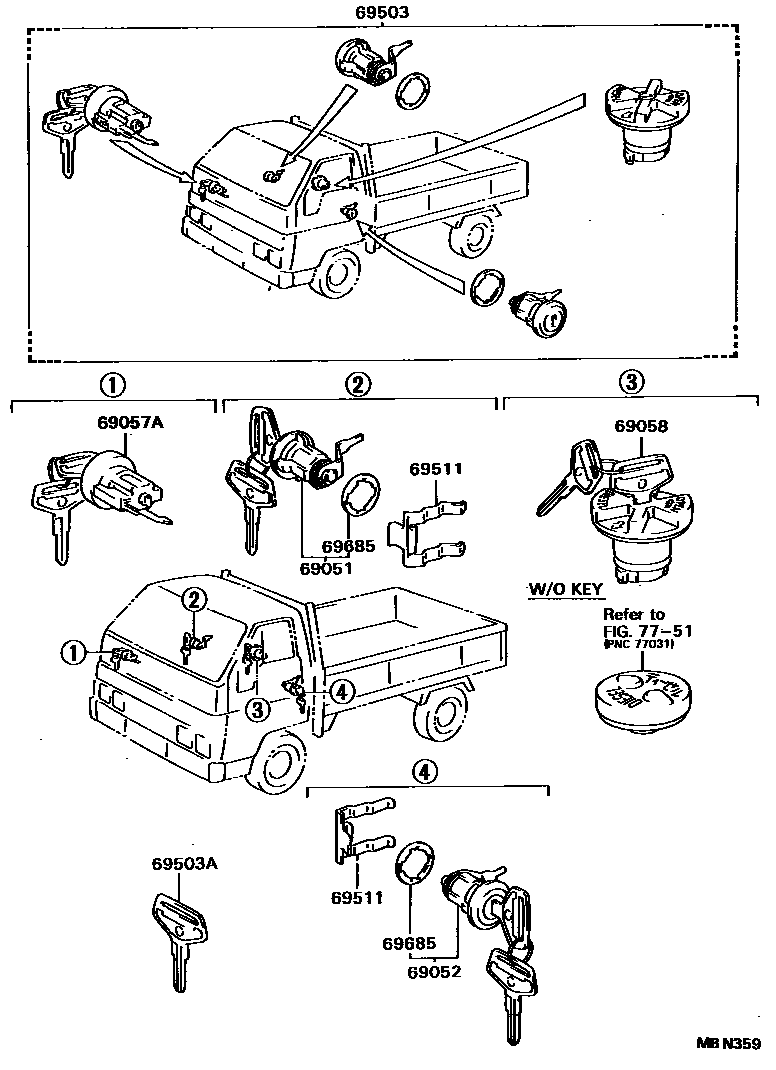

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95403iBU70198708-198808

sub69051-95404

main69051-95404iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95403iBU70198708-198808

sub69052-95404

main69052-95404iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95412iBU85..T3;BU61,62,65,81,82198708-198808

sub69057-32100

main69057-95413iBU60,80198708-198808

sub69057-95414

main69057-95414iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95403iBU80..LHD..IV3198708-198805

SWITZERLAND SPEC

main69058-95403iBU80..LHD..IV3198805-198808

SWITZERLAND SPEC & W(FUEL TANK CAP KEY)

main69058-95406iBU65..IV3198708-198808

W(FUEL SUB TANK & FUEL TANK CAP KEY)

main69058-95406iBU85..T3;BU65..CBU;BU60,61,62,80,81,82,93198708-198808

W(FUEL TANK CAP KEY)

69503CYLINDER SET, LOCK

main69503-92629iBU70198708-198808

main69503-92631iBU70198708-198808

W(FUEL TANK CAP KEY)

main69503-95458iBU60,80198708-198808

main69503-95459iBU60,80198708-198808

W(FUEL TANK CAP KEY)

main69503-95460iBU80198708-198808

W(FUEL TANK 100L & SUB TANK 70L & FUEL TANK CAP KEY)

main69503-95461iBU61,62,65,81,82,85,86..CBU,IV3198708-198808

main69503-95462iBU65..IV3198708-198808

W(FUEL TANK CAP KEY)

main69503-95463iBU81,85..(GEN,GHD,SA)..(CBU,IV3)198708-198808

W(FUEL TANK 100L & SUB TANK 70L & FUEL TANK CAP KEY)

main69503-95464iBU61,85..IV1198708-198808

main69503-95465iBU61,85..IV1198708-198808

W(FUEL TANK CAP KEY)

main69503-95469iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

69503AKEY, BLANK

main90999-00066iBU6#,70,8#,93198708-198808

MASTER KEY

sub90999-00085

main90999-00084iBU80..LHD..IV3198708-198808

MASTER KEY,W(*68)

sub90999-00214

main90999-00086iBU80..LHD..IV3198708-198805

MASTER KEY,SWITZERLAND SPEC

main90999-00086iBU80..LHD..IV3198805-198808

MASTER KEY,SWITZERLAND SPEC & W(FUEL TANK CAP KEY)

main90999-00129iBU6#,70,8#,93198708-198808

MASTER KEY,W(*68)

sub90999-00212

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iBU85,93;BU6#,70,80,81,82,86..CBU,IV3198708-198808

69685PAD, LOCK CYLINDER

main69513-12020iBU70198708-198808

main69513-32010iBU85..T3..(CBU,IV3);BU6#,80,81,82..CBU,IV3198708-198808

7751

9 parts on this diagram · 2 diagrams in section
