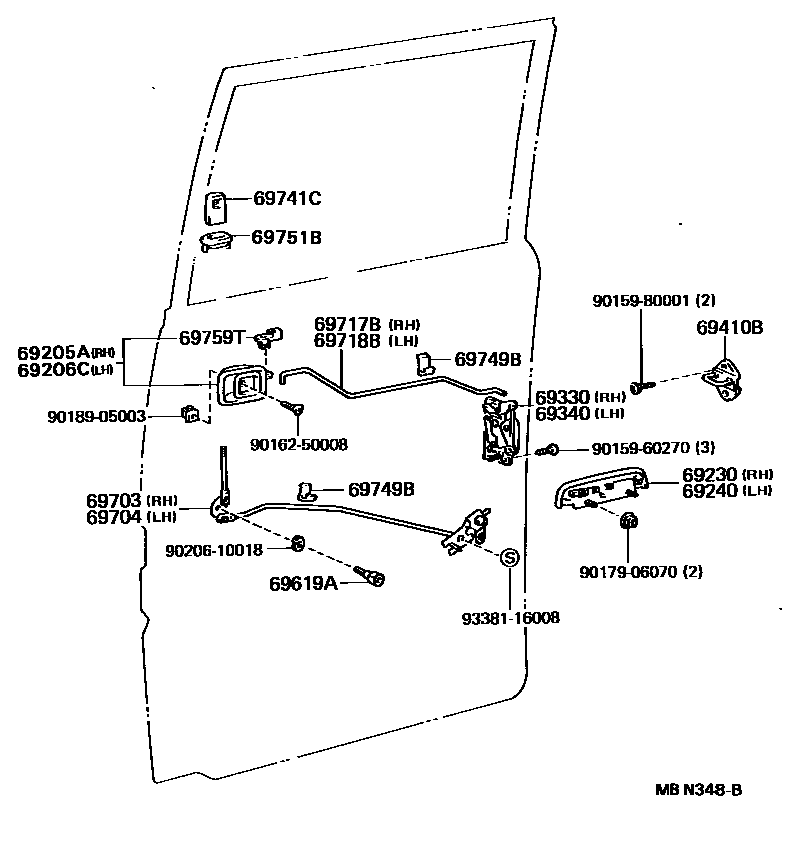

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-95703-06iBU60,85,86..TW1198708-198808

BROWN,TRIM4#

sub69205-95703

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-95703-06iBU60,85,86..TW1198708-198808

BROWN,TRIM4#

sub69206-95703

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-92601iBU70198708-198808

main69230-95400iBU60,85,86..TW1198708-198808

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-95400iBU60,85,86..TW1198708-198808

69330LOCK ASSY, REAR DOOR, RH

main69330-95401iBU60,85,86..TW1198708-198808

main69330-95A02iBU70198708-198808

69340LOCK ASSY, REAR DOOR, LH

main69340-95402iBU60,85,86..TW1198708-198808

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-95010iBU60,85,86..TW1198708-198808

sub69410-37010

main69470-95A01iBU70198708-198808

69619ABOLT

main69619-95010iBU60,85,86..TW1198708-198808

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69701-95401iBU60,85,86..TW1198708-198808

main69703-95A00iBU70198708-198808

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69702-95401iBU60,85,86..TW1198708-198808

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-95400iBU60,85,86..TW1198708-198808

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-95401iBU60,85,86..TW1198708-198808

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-20020-01iBU60,85,86..TW1198708-198808

BLACK,TRIM4#

sub69741-20020

sub69741-32010

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12010iBU60,85,86..TW1198708-198808

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-20031-01iBU60,85,86..TW1198708-198808

BLACK(TRIM4),BLACK

sub69751-20031

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iBU60,85,86..TW1198708-198808

RH

main69759-24070iBU60,85,86..TW1198708-198808

LH

9015960270

main90159-60270

9015980001

main90159-80001

9016250008

main90162-50008

9017906070

main90179-06070

9018905003

main90189-05003

9020610018

main90206-10018

9338116008

main93381-16008

23 parts on this diagram · 2 diagrams in section
