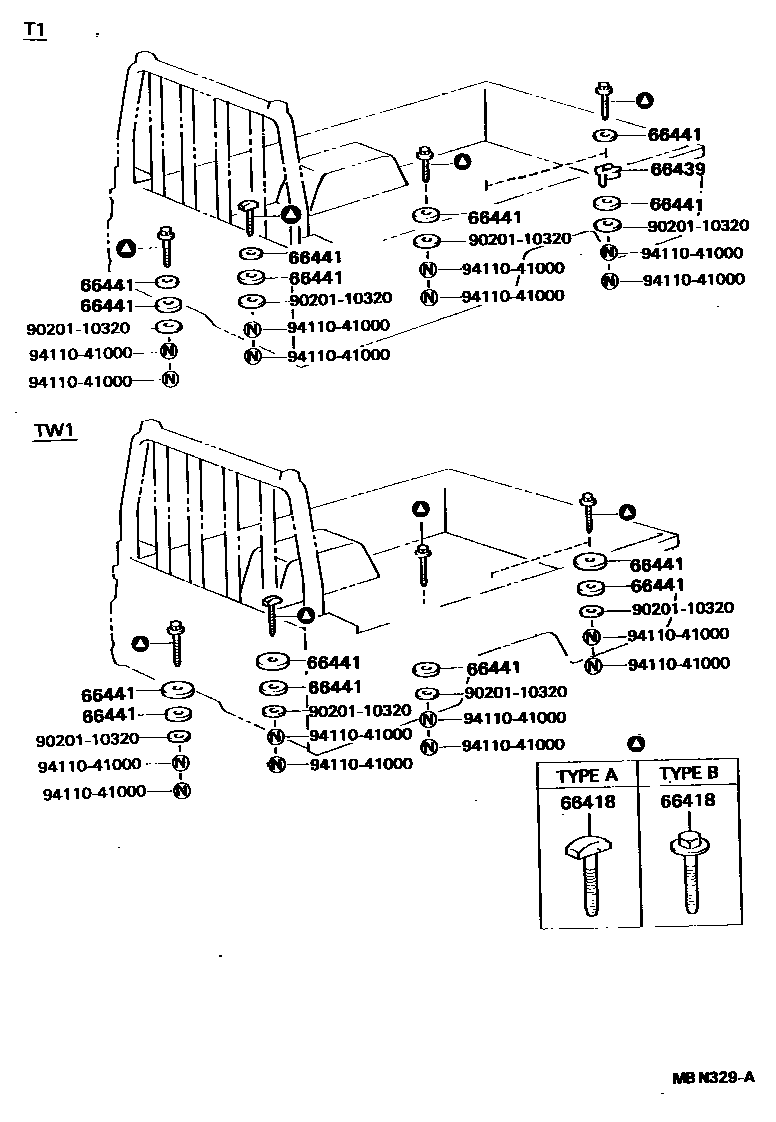

REAR BODY MOUNTING
66418BOLT, MOUNTING
TYPE A
THAILAND SPEC,TYPE A
NO.1
NO.2
NO.2
NO.1,L=80
NO.1,L=105
NO.1,NO.2
NO.3
NO.3
THAILAND SPEC,TYPE B
TYPE B
66439SHIM, SUPPORT
66441SHIM, MOUNTING, NO.1
LH,L=100,T=2.3
OD=90,T=6.0
LH,OD=35,T=6.0
W(*STAC),LH,OD=35,T=6.0
W(*STAC),LH,L=74,T=6.0
LH,L=74,T=6.0
W(SCHNORKEL),LH,L=90,T=6.0
OD=40,T=6.0
9020110320
main90201-10320
9411041000
main94110-41000
5 parts on this diagram · 3 diagrams in section
