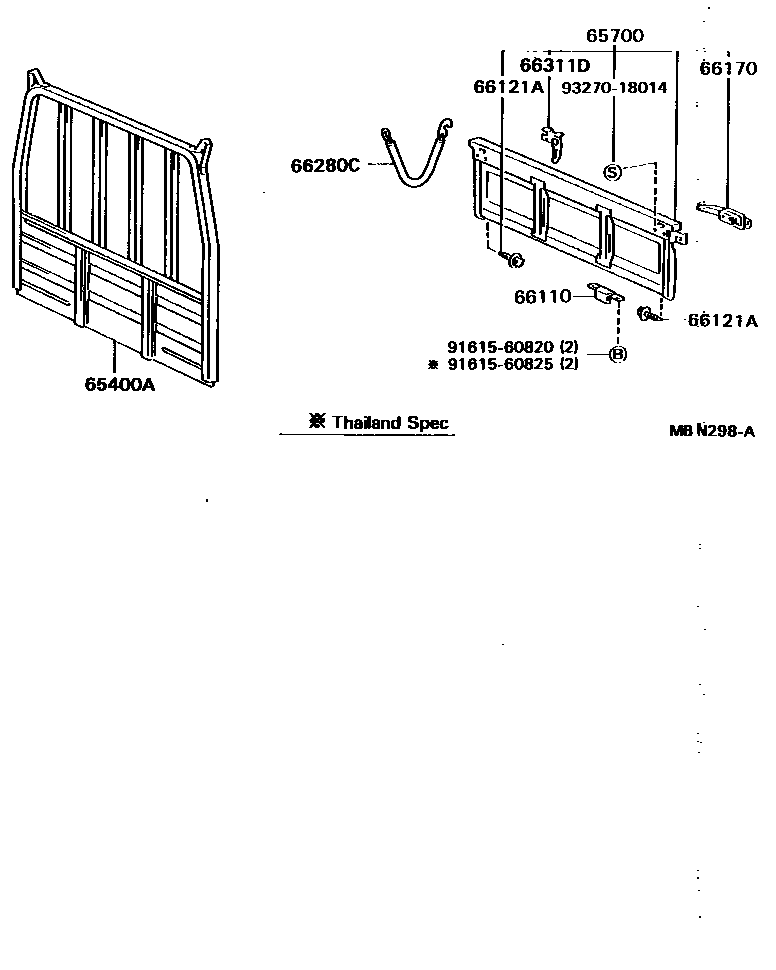

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1 0004 1

65400AGUARD ASSY, REAR BODY

main65400-92126iBU80,81..CBU198708-198808

sub65400-37240

sub66311-92701

main65400-92133iBU85..CBU198708-198808

sub65400-37250

sub66311-92701

main65400-92141iBU86..CBU198708-198808

sub65400-37320

sub66311-92701

main65400-92145iBU81..CBU;BU80..GHD..CBU198708-198808

W(*STAC)

main65400-92147iBU85..CBU198708-198808

W(SCHNORKEL)

sub65400-37320

sub66311-92701

main65400-95430iBU61..ST..CBU198708-198808

main65400-95431iBU60..T3..ST..CBU198708-198808

sub65400-37060

main65400-95432iBU60..T3..ST..CBU198708-198808

W(*STAC)

sub65400-37070

main65400-95433iBU60,61..WT..CBU198708-198808

sub65400-37040

main65400-95434iBU60,61..WT..CBU198708-198808

W(*STAC)

sub65400-37050

main65410-92711iBU60..TW1198708-198808

sub65410-37050

65700GATE ASSY, REAR BODY TAIL

main65700-92827iBU80,81,85,86..CBU198708-198808

sub65700-92825

main65700-95407iBU60..T3..ST..CBU198708-198808

sub65700-95416

main65700-95414iBU60,61..WT..CBU198708-198808

sub65700-95417

main65700-95415iBU60,61..(T1,TW1)..CBU198708-198808

sub65700-25010

sub75995-37020

main65701-93106iBU65..CBU198708-198808

66110HINGE ASSY, TAIL GATE

main66110-92702iBU80,81,85,86..CBU198708-198808

main66110-95014iBU60,61..(T1,TW1)..CBU198708-198808

main66110-95407iBU60,61..T3..CBU198708-198808

66121ABOLT, TAIL GATE MALE

main66121-95012iBU60,61..(T1,TW1)..CBU198708-198808

THAILAND SPEC

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iBU60,61..(T1,TW1)..CBU198708-198808

66280CCHAIN ASSY, TAIL GATE

main66280-92702iBU80,81,85,86..CBU198708-198808

main66280-95011iBU60,61..T3..CBU198708-198808

sub66280-25020

main66280-95403iBU60,61..(T1,TW1)..CBU198708-198808

sub66280-37010

66311DHOOK, ROPE

main66311-92701iBU80,81,85,86..CBU198708-198808

main66311-95010iBU60,61..(T1,TW1)..CBU198708-198808

sub66311-90K00

main66311-95400iBU60,61..T3..CBU198708-198808

sub66311-37010

9161560820

main91615-60820

9161560825

main91615-60825

9327018014

main93270-18014

10 parts on this diagram · 4 diagrams in section
