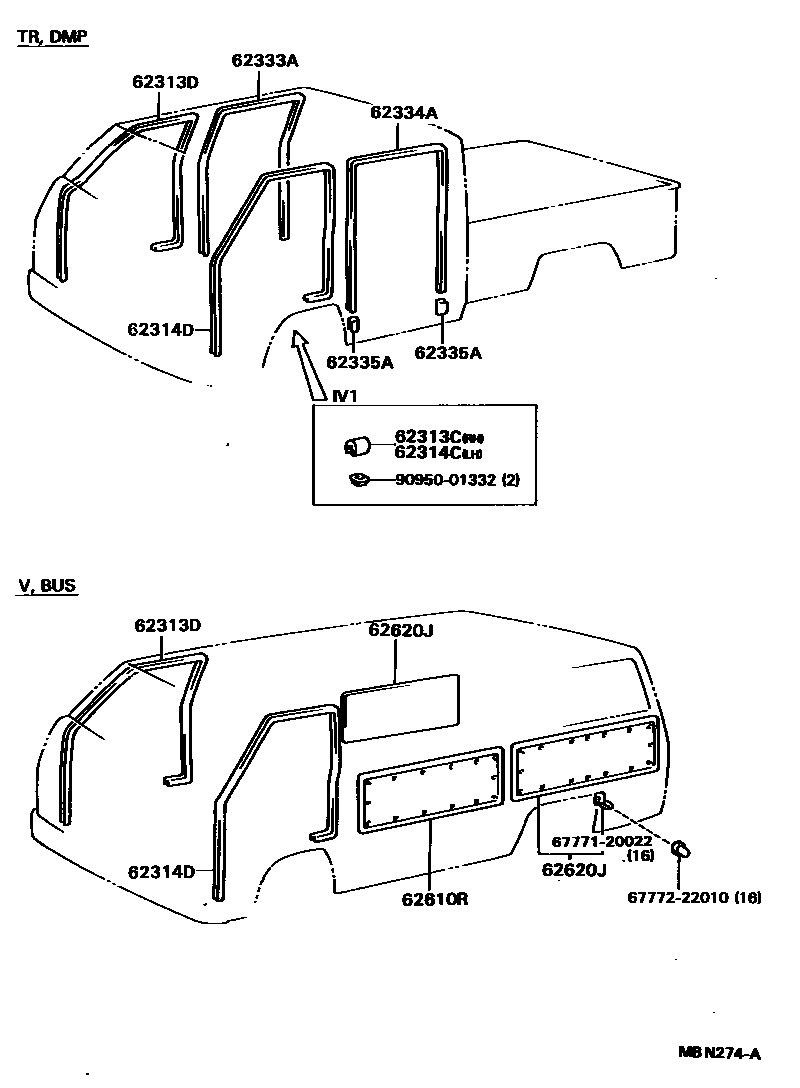

INSIDE TRIM BOARD

62313CGARNISH, REAR DOOR OPENING TRIM EDGE

main62314-95403iBU61,85,93..IV1198708-198808

62313DTRIM, FRONT DOOR OPENING, RH

main62313-95404-06iBU6#,70,8#..CBU,IV3198708-198808

BROWN,TRIM4#

sub62333-95400

main62313-95405-06iBU61,85,93..IV1198708-198808

BROWN,TRIM4#

sub62313-95406

62314CGARNISH, REAR DOOR OPENING TRIM EDGE

main62314-95403iBU61,85,93..IV1198708-198808

62314DTRIM, FRONT DOOR OPENING, LH

main62313-95404-06iBU6#,70,8#..CBU,IV3198708-198808

BROWN,TRIM4#

sub62333-95400

main62313-95405-06iBU61,85,93..IV1198708-198808

BROWN,TRIM4#

sub62313-95406

62333ATRIM, REAR DOOR OPENING, RH

main62333-95400-06iBU60,85,86..TW1198708-198808

BROWN,TRIM4#

sub62333-25010

62334ATRIM, REAR DOOR OPENING, LH

main62333-95400-06iBU60,85,86..TW1198708-198808

BROWN,TRIM4#

sub62333-25010

62335ACOVER, REAR DOOR OPENING TRIM

main62335-92600-06iBU60,85,86..TW1198708-198808

BROWN,TRIM4#

sub62335-92600

62610RBOARD ASSY, SIDE TRIM, NO.1

main62610-92600-06iBU70198708-198808

BROWN,TRIM4#

62620JBOARD ASSY, SIDE TRIM, NO.2

main62620-92601-06iBU70198708-198808

BROWN,TRIM4#

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9095001332

main90950-01332

12 parts on this diagram · 1 diagram in section
