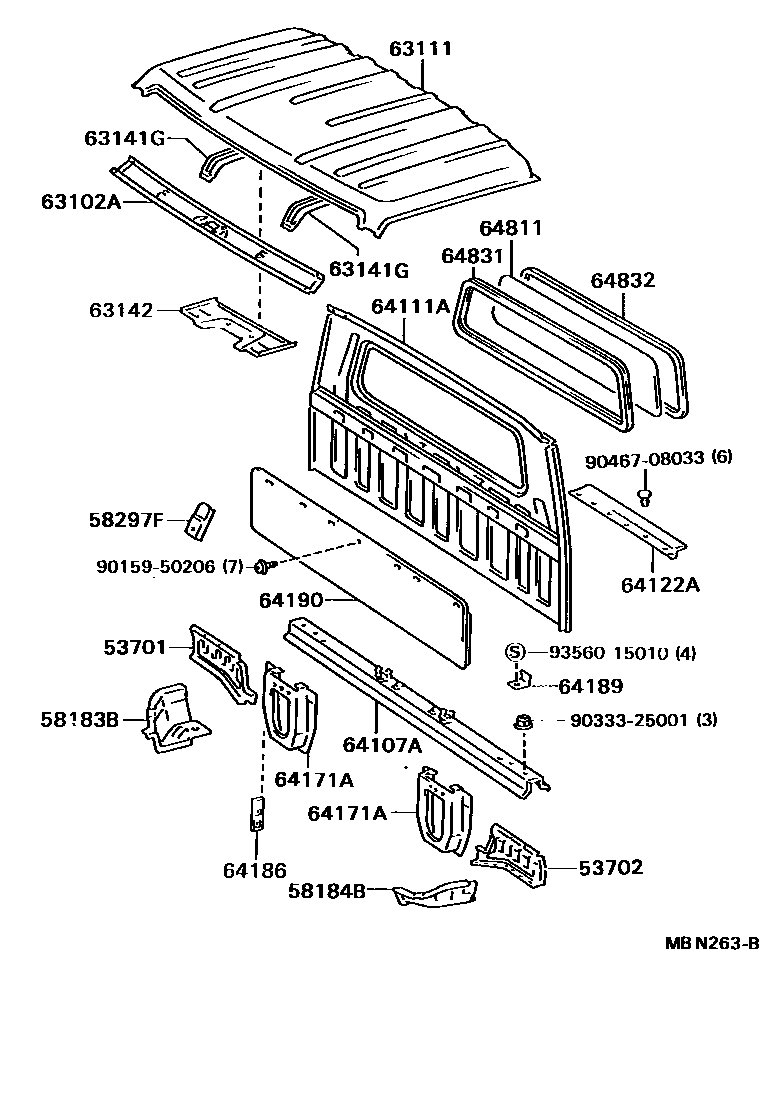

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-95408iBU60..T3;BU61,62,65,80,81,82¥3,240198708-198808

sub53701-95407¥5,200

main53703-92600iBU70¥3,870198708-198808

main53703-92607iBU85,86..TW1¥3,870198708-198808

main53717-95413iBU60..TW1¥2,460198708-198808

sub53717-95411¥2,440

main53717-95414iBU85,93..T3¥3,720198708-198808

sub53717-95410¥6,100

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-95413iBU60..T3;BU61,62,65,80,81,82¥3,240198708-198808

sub53702-95412¥5,200

main53704-92600iBU85,86..TW1¥3,870198708-198808

main53704-92601iBU70¥3,870198708-198808

main53718-95414iBU60..TW1¥2,460198708-198808

sub53718-95412¥2,440

main53718-95415iBU85..T3¥3,720198708-198808

sub53718-95411¥6,100

58183BREINFORCEMENT, REAR MOUNTING, RH

main58183-95406iBU85..RHD..GEN..IV3¥4,150198708-198808

sub58183-95405¥4,120

main58183-95406iBU85..RHD..GEN..IV3¥4,150198708-198808

INDIA SPEC

sub58183-95405¥4,120

main58183-95407iBU60..LHD..WT¥4,150198708-198808

W(TILT CAB)

sub58183-95404¥4,120

main58183-95407iBU80..LHD..IV3¥4,150198708-198802

sub58183-95404¥4,120

58184BREINFORCEMENT, REAR MOUNTING, LH

main58184-95405iBU61..GEN;BU85..TW1;BU85..IV1;BU65..GEN..CBU;BU60,62,70,80,81,82,86..5F..(ARL,GEN,GHD)¥4,150198708-198808

sub58184-95404¥4,120

main58184-95405iBU85..RHD..GEN..IV3¥4,150198708-198808

INDIA SPEC

sub58184-95404¥4,120

main58184-95406iBU60..LHD..WT;BU80..LHD..CBU¥4,150198708-198808

W(TILT CAB)

sub58184-95403¥4,120

58297FREINFORCEMENT, SEAT BELT ANCHOR, NO.2

main58297-95401iBU60..LHD..T3;BU61,62,65,80,81,85..LHD¥2,930198708-198808

main58297-95402iBU85..RHD..T3;BU60,61,65,80,81,82,93..RHD..(GEN,GHD,SA)¥1,400198708-198808

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63132-95418iBU6#,70,80,81,82..DMP,TR,V¥6,600198708-198808

sub63132-37010¥6,700

main63132-95420iBU65..CBU;BU60,61,62,70,80,81,82..(TR,V)..(CBU,IV3)¥6,600198708-198808

W(ROOF VENTIRATOR)

sub63132-37010¥6,700

main63132-95423iBU85,86..CBU,IV3¥6,600198708-198808

sub63132-37040¥6,600

63111PANEL, ROOF

main63100-92607iBU85,86..TW1¥66,000198708-198808

W(ROOF VENTIRATOR)

sub63100-37020¥66,300

main63100-92609iBU85,86..TW1¥66,000198708-198808

sub63100-37030¥66,300

main63111-95409iBU60..T3;BU61,62,65,80,81,82..CBU,IV3¥30,700198708-198808

sub63111-37010¥30,500

sub63141-37010¥6,100

main63111-95410iBU65..CBU;BU60,61,62,80,81,82..(T1,T3)..(CBU,IV3)¥30,700198708-198808

W(ROOF VENTIRATOR)

sub63111-37020¥30,500

sub63141-37010¥6,100

main63111-95411iBU85..T3..(CBU,IV3)¥34,500198708-198808

main63111-95412iBU85..LHD;BU85..T3..ARL;BU85..RHD..CBU¥34,500198708-198808

W(ROOF VENTIRATOR)

main63111-95416iBU60..TW1¥60,400198708-198808

W(ROOF VENTIRATOR)

main63111-95417iBU60..TW1¥60,400198708-198808

main63113-92120iBU70..BUS¥58,000198708-198808

CENTER REAR

main63113-92605iBU70..BUS¥40,000198708-198808

CENTER FRONT

main63113-92605iBU70..BUS¥40,000198708-198808

CENTER,W(ROOF VENTIRATOR)

main63115-92605iBU70¥30,600198708-198808

REAR

main63115-92612iBU70..V¥64,600198708-198808

FRONT

main63115-92613iBU70..BUS¥64,500198708-198808

FRONT

main63115-92613iBU70..BUS¥64,500198708-198808

W(ROOF VENTIRATOR),FRONT

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-95403iBU85..T3..(CBU,IV3)¥4,710198708-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95400iBU65..CBU;BU60,61,62,80,81,82..(T1,T3)..(CBU,IV3)¥4,390198708-198808

64107AFRAME SUB-ASSY, BACK

main64107-92623iBU85..TW1¥18,900198708-198808

sub64107-37190¥18,900

sub90333-25001¥140

main64107-92624iBU70..BUS¥18,000198708-198808

sub64107-92625¥18,000

sub90333-25001¥140

main64107-92625iBU70..V¥18,000198708-198808

main64107-92626iBU70..BUS¥17,400198708-198808

SAUDI ARABIA & GULF SPEC

main64107-92627iBU86¥18,500198708-198808

main64107-95419iBU85..LHD¥18,900198708-198808

main64107-95420iBU85..RHD..T3¥18,900198708-198808

sub64107-37140¥18,500

sub90333-25001¥140

main64107-95421iBU60..TW1..GEN¥16,700198708-198808

SAUDI ARABIA & GULF SPEC

main64107-95423iBU60,61,62,80,81..LHD..T3¥16,700198708-198808

main64107-95424iBU60..RHD..GEN;BU61,62,65,80,81,82..RHD¥16,700198708-198808

sub64107-37110¥16,700

sub90333-25001¥140

main64107-95426iBU60..TW1..GEN¥16,700198708-198808

main64107-95427iBU85..RHD..GEN..IV3¥19,200198801-198808

W(FRONT SEAT BELT)

main64107-95429iBU85..RHD..T3..(CBU,IV3)¥18,900198808-198808

sub64107-37130¥18,500

sub90333-25001¥140

main64107-95430iBU65..IV3¥16,700198708-198808

main64107-95433iBU85..RHD..GEN..IV3¥18,400198808-198808

W(FRONT SEAT BELT)

sub64107-37120¥18,300

sub90333-25001¥140

main64107-95435iBU60..ARL¥16,800198708-198808

64111APANEL, BACK

main64100-95442iBU60,61,62,80,81..LHD..T3¥55,700198708-198808

sub64100-37640¥55,700

main64100-95443iBU65..IV3¥55,700198708-198808

sub64100-37650¥55,700

main64100-95444iBU61,62..LHD;BU60..T3..ST¥55,700198708-198808

W(HEAD REST)

sub64100-37660¥55,700

main64100-95445iBU85..RHD..T3..(CBU,IV3)¥62,800198708-198808

sub64100-37590¥63,000

sub64160-37010¥23,800

main64100-95447iBU60,61,65,80,81,82..RHD..(GEN,GHD,SA)..(CBU,IV3)¥55,700198708-198808

sub64100-37680¥55,700

main64100-95448iBU60,61,65,80,81,82..RHD..(GEN,GHD,SA)..(CBU,IV3)¥55,700198708-198808

W(HEADREST)

sub64100-37690¥55,700

main64100-95450iBU60..TW1¥59,800198708-198808

sub64111-95412¥54,100

sub63218-95402¥3,440

sub64116-95A01¥7,200

sub64117-95400¥4,770

sub64119-95A01¥370

main64100-95451iBU85..LHD¥63,000198708-198808

sub64100-37870¥62,800

main64101-92604iBU85,86..TW1¥57,300198708-198808

sub64101-37010¥57,300

64122ABAFFLE, DUST REAR BODY

main64122-95405iBU60,61,62,80,81,82..T3¥3,130198708-198808

main64122-95406iBU85,86..CBU,IV3¥2,840198708-198808

main64122-95407iBU61..ST..(CBU,IV3)¥4,140198708-198808

main64122-95A06iBU60..TW1¥1,400198708-198808

64171ABRACKET SUB-ASSY, REAR MOUNTING

main64025-95400iBU80..LHD..IV3¥18,200198708-198808

W(TILT CAB)

sub64025-37030¥7,800

main64025-95400iBU61,62,65,81..ARL,SA¥18,200198708-198808

W(TILT CAB),RH

sub64025-37030¥7,800

main64026-95400iBU85..T3..(CBU,IV3)¥18,100198708-198808

W(TILT CAB),LH

main64026-95401iBU85..IV1¥18,100198708-198808

W(AIR CONDITIONER),RH

main64026-95401iBU85..IV1¥18,100198708-198808

LH

main64026-95401iBU85..RHD..GEN..IV3¥18,100198708-198808

INDIA SPEC,LH

main64026-95401iBU85..RHD..GEN..IV3¥18,100198708-198808

RH

main64026-95402iBU65..IV3198708-198808

LH

main64171-95408iBU65..GEN..CBU;BU60,61,62,80,81,82..(T1,T3)..(GEN,GHD)¥9,100198708-198808

main64171-95410iBU85..IV1¥9,200198708-198808

RH

main64171-95410iBU85..RHD..GEN..IV3¥9,200198708-198808

INDIA SPEC,RH

64186RETAINER, REAR MOUNTING BRACKET

main64186-95A00iBU60..ARL¥370198708-198808

64189CLAMP, BACK PANEL SILENCER

main64189-95400iBU85..T3..ARL;BU61,62,65..ARL¥310198708-198808

SWITZERLAND SPEC

64190SILENCER ASSY, BACK PANEL

main64190-95400iBU61,62,65..ARL¥8,000198708-198808

SWITZERLAND SPEC

main64190-95406-06iBU85..T3..ARL198708-198808

BROWN(TRIM4),BROWN

64811GLASS, BACK WINDOW

main64811-95409iBU60..T3;BU61,62,65,80,81,82..CBU,IV3¥15,600198708-198808

*TEM,T=3.5

main64811-95410iBU60..TW1;BU85,86..CBU,IV3¥7,900198708-198808

*TEM,T=3.5

sub64811-37080¥19,700

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-95405iBU60..T3;BU61,62,65,80,81,82..CBU,IV3¥3,850198708-198808

sub64831-95406¥4,940

main64831-95406iBU60..TW1;BU85,86..CBU,IV3¥4,940198708-198808

sub64831-37050¥4,930

64832KEY, BACK WINDOW WEATHERSTRIP

main64832-95010iBU60..T3;BU61,62,65,80,81,82..CBU,IV3¥1,080198708-198808

sub64832-95013¥1,030

main64832-95013iBU60..TW1;BU85,86..CBU,IV3¥1,030198708-198808

sub64832-37040¥710

9015950206

main90159-50206¥120

9033325001

main90333-25001¥140

9046708033

main90467-08033¥50

9356015010

main93560-15010¥80

23 parts on this diagram · 3 diagrams in section
