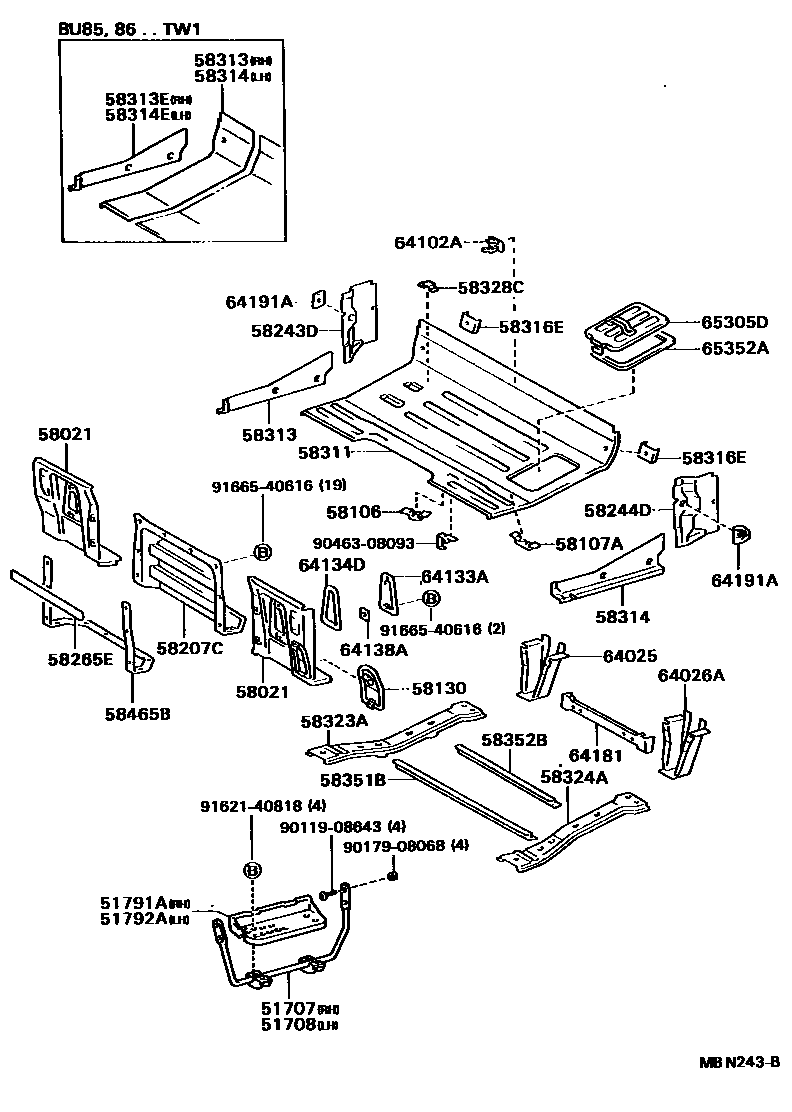

REAR FLOOR PANEL & REAR FLOOR MEMBER
51707STEP SUB-ASSY, RH
51708STEP SUB-ASSY, LH
51791APANEL, STEP, REAR RH
51792APANEL, STEP, REAR LH
58021PANEL SUB-ASSY, HEADER
RH
RH
LH
W(REAR HEATER),LH
58106BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2
58107ABRACKET SUB-ASSY, CLAMP SET, NO.1
58130COVER ASSY, RESERVE TANK SERVICE HOLE
58243DPANEL, FLOOR SIDE, REAR RH
58244DPANEL, FLOOR SIDE, REAR LH
58265EPACKING, TRANSMISSION COVER, C
58311PAN, REAR FLOOR
W(REAR HEATER)
58313PANEL, REAR FLOOR SIDE, RH
58313EEXTENSION, REAR FLOOR SIDE PANEL, RH
58314PANEL, REAR FLOOR SIDE, LH
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58316ERETAINER, REAR SEAT SET
58323ABRACE, CENTER TO REAR MOUNTING, RH
58324ABRACE, CENTER TO REAR MOUNTING, LH
58328CBRACKET, JACK REST
58351BREINFORCEMENT, REAR FLOOR PANEL, RH
58352BREINFORCEMENT, REAR FLOOR PANEL, LH
58465BPACKING, TRANSMISSION SERVICE HOLE COVER
64025BRACKET SUB-ASSY, REAR MOUNTING, RH
RH
64026ABRACKET SUB-ASSY, REAR MOUNTING, LH
64102ABRACKET SUB-ASSY, JACK HANDLE SUPPORT
64133ACOVER, HEADER PANEL
64134DPACKING, HEADER PANEL COVER
64138ASEAL, HEADER PANEL COVER
64181REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR
64191ABRACKET, REAR SEAT BELT ANCHORAGE, RH
65305DCOVER SUB-ASSY, BATTERY HOLE
9011908643
main90119-08643
9017908068
main90179-08068
9046308093
main90463-08093
9162140818
main91621-40818
9166540616
main91665-40616
39 parts on this diagram · 2 diagrams in section
