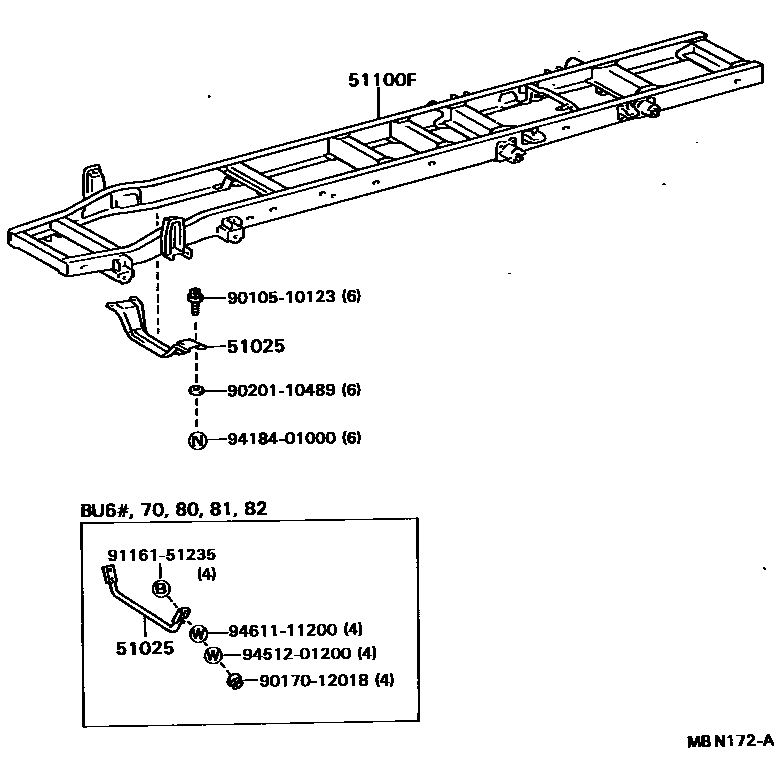

FRAME

0001 1 0002 1 0003 1

51025MEMBER SUB-ASSY, ENGINE FRONT MOUNTING

main51025-36030iBU85,86..CBU,IV3198708-198808

main51025-36040iBU60,61,62,70,80,81,82198708-198808

51100FFRAME SUB-ASSY

main51002-3B270iBU61..ST198708-198808

main51002-3B280iBU60,62..T3..ST198708-198808

main51002-3B290iBU60..TW1198708-198808

main51002-3B300iBU70198708-198808

main51002-3B350iBU60,61,62..TS..WT198708-198808

main51002-3B360iBU62..WT..GEN198708-198808

main51002-3B420iBU80,81..GEN,SA198708-198808

main51002-3B440iBU80,81,82..GHD198708-198808

main51002-3B510iBU86198708-198808

sub51002-3B511

sub17573-58061

sub90119-08086

main51002-3B530iBU85..T3..(CBU,IV3)198708-198808

sub51002-3B531

sub17573-58061

sub90119-08086

main51002-3B630iBU85..TW1198708-198808

sub51002-3B631

sub17573-58061

sub90119-08086

main51002-3B700iBU65..IV3198708-198808

main51005-96305iBU65..CBU198708-198808

9010510123

main90105-10123

9017012018

main90170-12018

9020110489

main90201-10489

9116151235

main91161-51235

9418401000

main94184-01000

9451201200

main94512-01200

9461111200

main94611-11200

9 parts on this diagram · 3 diagrams in section
