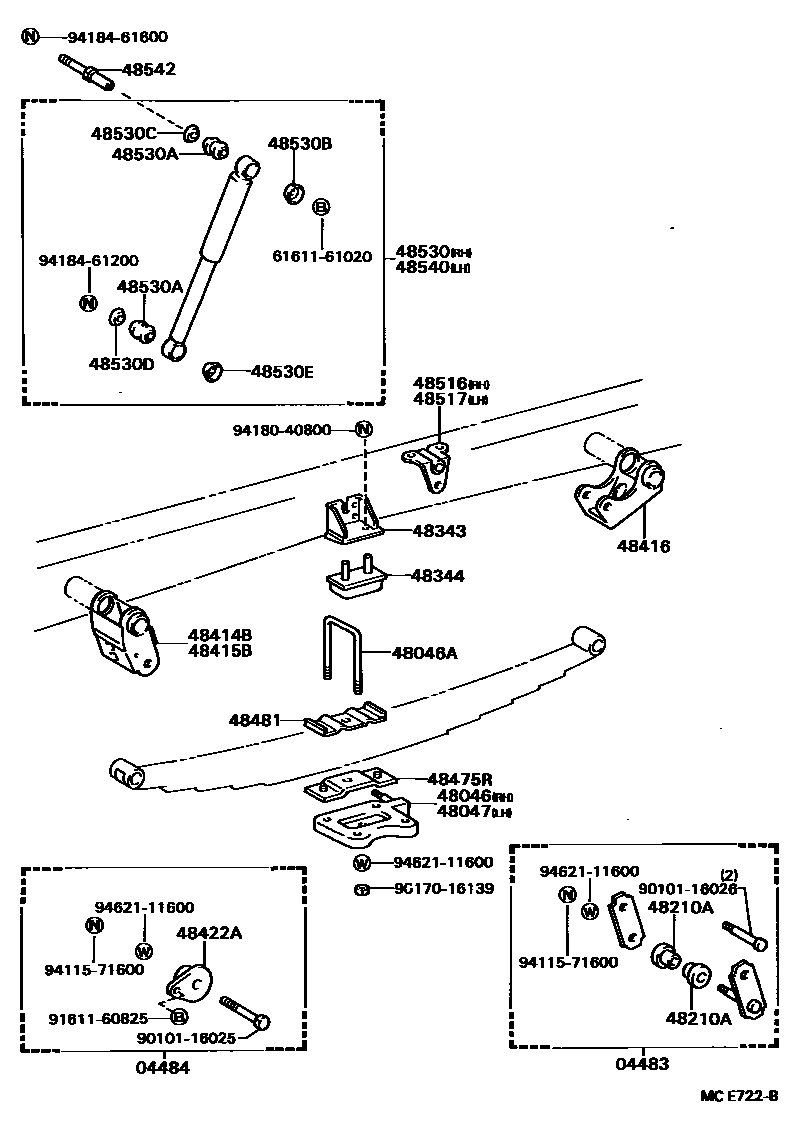

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04483SHACKLE KIT, REAR SPRING

main04483-36060iBU65;BU60,61,62,70..ST198708-198808

main04483-36070iBU60,61,62,8#,93..WT198708-198808

04484PIN KIT, REAR SPRING

main04484-36040iBU65;BU60,61,62,70..ST198708-198808

main04484-36050iBU60,61,62,8#..WT198708-198808

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-36090iBU60,61,62,70..ST198708-198808

main48046-36190iBU65198708-198808

main48473-36100iBU60,61,62..TS..WT;BU80,81,86..GEN,SA198708-198808

main48473-36110iBU80,81,82..GHD;BU62,85..5F..WT198708-198808

main48473-36110iBU60,61,80,81..WT..GEN198708-198808

HEAVY DUTY SPEC

48046ABOLT, U(FOR REAR SPRING)

main90117-16018iBU80,81..GEN198708-198808

L=300,L=300

main90117-16022iBU60,61..WT..GEN198708-198808

L=280

main90117-16022iBU60,61..WT..GEN198708-198808

L=280,HEAVY DUTY SPEC

main90117-16022iBU65..CBU;BU80,81..GEN,SA198708-198808

L=280,L=280

main90117-16024iBU80,81,82..GHD198708-198808

L=310

main90117-16025iBU85;BU65,93..IV1,IV3198708-198808

L=305,L=305

main90117-16031iBU60..ARL198708-198808

L=200

main90117-16103iBU65..CBU;BU80,81..GEN,SA198708-198808

L=275,L=275

sub90117-16022

main90117-16115iBU60,61,62..TS..WT198708-198808

L=265,L=265

main90117-16122iBU60,61,62,70..ST..GEN198708-198808

L=215

main90117-16142iBU86198708-198808

L=255,L=255

main90117-16142iBU86198708-198808

L=255

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-36090iBU60,61,62,70..ST198708-198808

main48047-36190iBU65198708-198808

main48473-36100iBU60,61,62..TS..WT;BU80,81,86..GEN,SA198708-198808

main48473-36110iBU80,81,82..GHD;BU62,85..5F..WT198708-198808

main48473-36110iBU60,61,80,81..WT..GEN198708-198808

HEAVY DUTY SPEC

48210SPRING ASSY, REAR RH

main48210-36690iBU85..RHD..GEN..IV3198708-198808

MAIN 5+HELPER 7-LEAF,INDIA SPEC OR HEAVY DUTY SPEC

main48210-36690iBU85..IV1198708-198808

MAIN 5+HELPER 7-LEAF

main48210-36690iBU85..ARL;BU85..CBU198708-198808

MAIN 5+HELPER 7-LEAF,HEAVY DUTY SPEC

main48210-36690iBU85..ARL;BU85..CBU198708-198808

MAIN 5+HELPER 7-LEAF,TAIWAN SPEC OR HEAVY DUTY SPEC

main48210-36800iBU60,61..WT..GEN198708-198808

MAIN 5+HELPER 6-LEAF,HEAVY DUTY SPEC

main48210-36800iBU60,61..WT..GEN198708-198808

MAIN 5+HELPER 6-LEAF

main48210-36810iBU60,61,62..TS..WT198708-198808

MAIN 5+HELPER 5-LEAF

main48210-36850iBU80,81,82..GHD198708-198808

MAIN 8+HELPER 8-LEAF

main48210-36861iBU80,81..GEN,SA198708-198808

MAIN 7+HELPER 7-LEAF

main48210-3B060iBU86198708-198808

MAIN 7+HELPER 6-LEAF,HEAVY DUTY SPEC

main48210-3B060iBU85..CBU,IV3198708-198808

MAIN 7+HELPER 6-LEAF

main48210-3B190iBU60,61,62..ST..GEN198708-198808

6-LEAF

main48210-3B210iBU70198708-198808

6-LEAF

main48210-3B270iBU65..CBU198708-198808

MAIN 4+HELPER 5-LEAF

main48210-3B280iBU60..ARL198708-198808

4-LEAF

main48210-3B290iBU65..IV3198708-198808

MAIN 5+HELPER 6-LEAF

main48210-3B350iBU86198708-198808

MAIN 5+HELPER 5-LEAF

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-23002iBU65;BU60,61,62,70..ST198708-198808

48343BRACKET, REAR AXLE CUSHION

main48343-36040iBU60,61,62,70..ST198708-198808

main48343-36060iBU65198708-198808

48344STOPPER, BUMPER, REAR

main48344-36140iBU70198708-198808

main48344-36150iBU60,61,62..ST198708-198808

main48344-36170iBU65..IV3198708-198808

main48344-36180iBU60,61,62..WT198708-198808

main48344-36190iBU80,81,82198708-198808

main48344-36200iBU85..CBU,IV3198708-198808

main48344-36220iBU86198708-198808

main48344-36270iBU65..CBU198708-198808

48414BBRACKET, SPRING, NO.3 RH

main48414-36210iBU93;BU60,61,62,8#..WT..(CBU,IV3)198708-198808

main48414-36230iBU60,61,62,70..ST198708-198808

main48414-36270iBU65198708-198808

48415BBRACKET, SPRING, NO.3 LH

main48414-36210iBU93;BU60,61,62,8#..WT..(CBU,IV3)198708-198808

main48414-36270iBU65198708-198808

main48415-36070iBU60,61,62,70..ST198708-198808

48416BRACKET, SPRING, NO.4

main48416-36190iBU60,61,62,8#..WT..(CBU,IV3)198708-198808

main48416-36260iBU65198708-198808

RH

main48416-36270iBU60,61,62,70..ST198708-198808

main48417-36140iBU65198708-198808

LH

48422ASUPPORT, REAR SPRING PIN

main48422-36030iBU60,61,62,8#..WT198708-198808

sub48422-37010

main48422-36090iBU65;BU60,61,62,70..ST198708-198808

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iBU86;BU60,61,62,70..ST198708-198808

main48475-36090iBU80,81..GEN198708-198808

HEAVY DUTY SPEC

main48475-36090iBU65,85198708-198808

48481SEAT, REAR SPRING, UPPER

main48481-36040iBU62..ST;BU62..ARL;BU60,61,70,80,81,86..ARL,GEN,SA198708-198808

main48481-36050iBU80,81,82..GHD;BU62,85..5F..WT..(CBU,IV3)198708-198808

HEAVY DUTY SPEC

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48505-36040iBU85..CBU,IV3;BU80,81,82..GHD198708-198808

main48505-36050iBU60,61,62,80,81,86..WT..(ARL,GEN,SA)198708-198808

main48516-36050iBU60,61,62,70..ST198708-198808

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48505-36040iBU85..CBU,IV3;BU80,81,82..GHD198708-198808

main48505-36050iBU60,61,62,80,81,86..WT..(ARL,GEN,SA)198708-198808

main48516-36050iBU60,61,62,70..ST198708-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-39715iBU60,61,62,70..ST198708-198808

sub48531-39716

main48531-39725iBU60,61,62,80,81..WT..(ARL,GEN,SA)198708-198808

sub48531-39726

main48531-39735iBU93198710-198808

sub48531-39736

main48531-39745iBU65198708-198808

sub48531-39746

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16009iBU6#,70,8#198708-198808

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU60,61,62,80,81..WT..(ARL,GEN,SA)198708-198808

main90948-03004iBU60,61,62,70..ST198708-198808

main90948-03007iBU80,81..GHD;BU65,82,85,86,93198708-198808

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU6#,8#,93..WT198708-198808

main90948-03007iBU60,61,62,70..ST198708-198808

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU85,86;BU80,81,82..GHD;BU60,61,62,70..ST198708-198808

main90948-03007iBU6#,80,81..WT..(ARL,GEN,SA)198708-198808

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU6#,70,8#,93198708-198808

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-39715iBU60,61,62,70..ST198708-198808

sub48531-39716

main48531-39725iBU60,61,62,80,81..WT..(ARL,GEN,SA)198708-198808

sub48531-39726

main48531-39735iBU93198710-198808

sub48531-39736

main48531-39745iBU65198708-198808

sub48531-39746

48542PIN, SHOCK ABSORBER UPPER PIVOT, REAR

main48542-36020iBU60,61,62,70..ST198708-198808

sub48542-37030

6161161020PANEL, QUARTER, RH

main61611-61020

9010116025

main90101-16025

9010116026

main90101-16026

9017016139

main90170-16139

9161160825

main91611-60825

9411571600

main94115-71600

9418040800

main94180-40800

9418461200

main94184-61200

9418461600

main94184-61600

9462111600

main94621-11600

35 parts on this diagram · 8 diagrams in section
