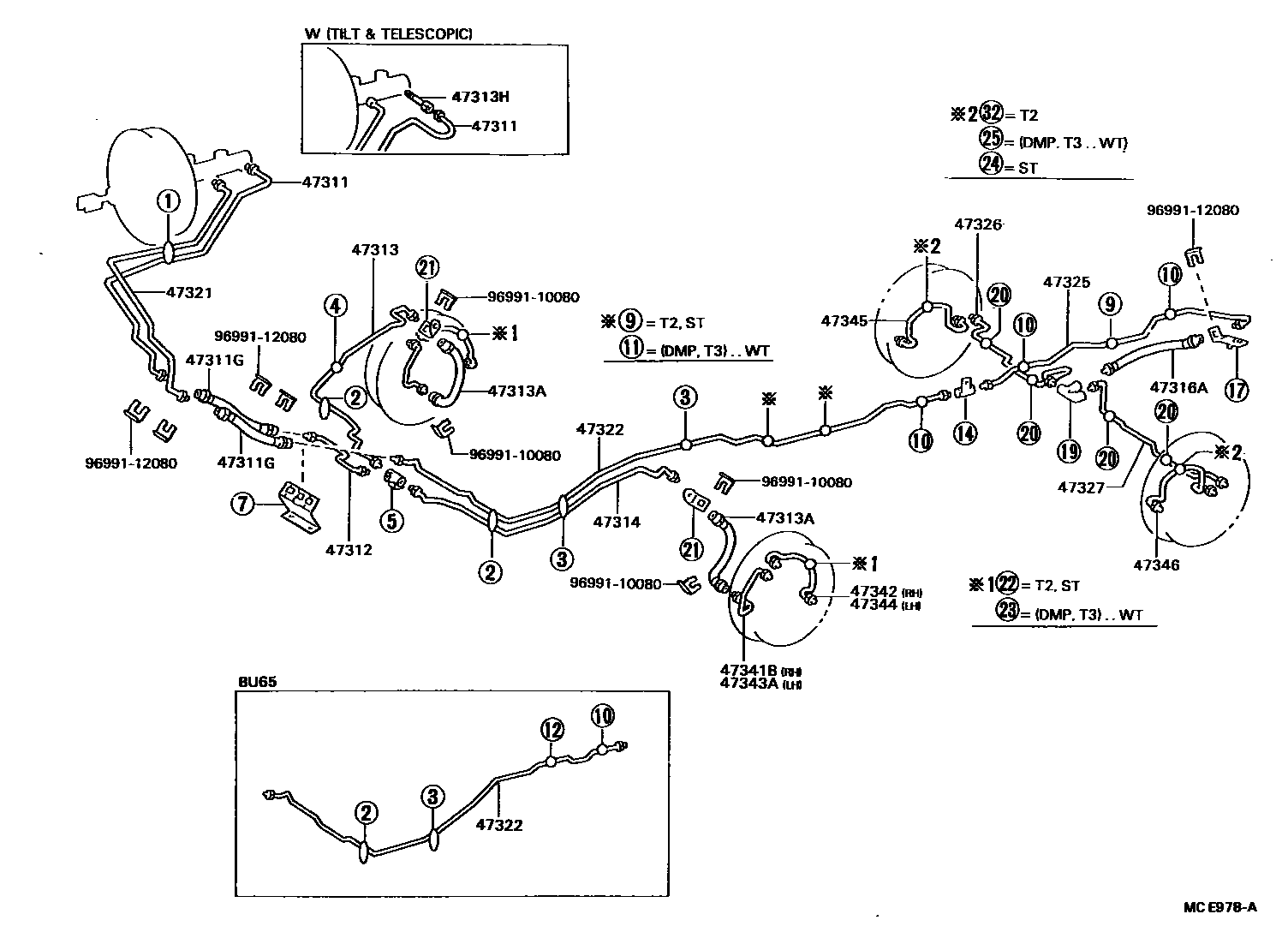

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

47311TUBE, FRONT BRAKE, NO.1

main47311-36280iBU86198708-198808

main47311-36300iBU85..RHD..GEN198708-198710

main47311-36310iBU85..LHD198708-198808

main47311-36320iBU60,61,65,80,81,82..RHD..(GEN,GHD,SA)198708-198808

main47311-36330iBU62..ST;BU60,61,65,70,80,81..LHD198708-198808

main47311-36390iBU62..WT..GEN198708-198808

main47311-36400iBU60,61,65,80,81..RHD..(GEN,GHD)198708-198808

W(TILT & TELESCOPIC)

main47311-36410iBU62..ARL198708-198808

W(TILT & TELESCOPIC)

main47311-36420iBU62..ST;BU60,61,70,80,81..LHD198708-198808

W(TILT & TELESCOPIC)

main47311-36430iBU62..WT..GEN198708-198808

W(TILT & TELESCOPIC)

main47311-36440iBU86198708-198808

W(TILT & TELESCOPIC)

main47311-36450iBU85..ARL198708-198808

W(TILT & TELESCOPIC)

main47311-36460iBU85..LHD198708-198808

W(TILT & TELESCOPIC)

47311GHOSE, FLEXIBLE(FOR BRAKE TUBE)

main90947-02519×2iBU85,86..CBU,IV3198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main96932-33705×2iBU6#,70,80,81,82198708-198808

main96932-34305×2iBU85,86,93198710-198808

sub96932-34307

47312TUBE, FRONT BRAKE, NO.2

main47312-36230iBU85,86..RHD198708-198710

sub47312-36231

main47312-36240iBU85..LHD198708-198808

main47312-36250iBU6#,70,80,81,82198708-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-36160iBU60,61,62,70,80,81,82198708-198808

main47313-36170iBU65198708-198808

sub47313-36210

main47313-36200iBU85,86198708-198710

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02469×2iBU60,61,62,70..ST198708-198808

sub90947-02531

main90947-02470×2iBU6#,80,81,82..WT198708-198808

main90947-02566×2iBU85,86198708-198710

main90947-02567×2iBU85,86..CBU,IV3198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

sub90947-02744

main96940-33305×2iBU65..ARL;BU60,61,62,80,81..WT..(ARL,GEN)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90404-12007iBU65,85..RHD..GEN..(CBU,IV3);BU60,61,62,70,80,81,82,86..GEN,GHD198708-198808

main90404-12008iBU85..LHD198708-198808

47314TUBE, FRONT BRAKE, NO.4

main47314-36230iBU60,61,62,70,80,81,82198708-198808

main47314-36240iBU65198708-198808

sub47314-36290

main47314-36280iBU85,86,93198710-198808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02518iBU85,86..CBU,IV3198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main96912-33605iBU65198708-198808

sub96912-33607

main96912-34005iBU60,61,62,70,80,81,82198708-198808

main96912-34105iBU85,86198708-198710

sub96912-34107

47321TUBE, REAR BRAKE, NO.1

main47321-36180iBU86198708-198808

main47321-36200iBU85..RHD198708-198710

main47321-36210iBU85..LHD198708-198808

main47321-36220iBU60,61,65,80,81,82..RHD198708-198808

main47321-36230iBU62..ST;BU60,61,65,70,80,81..LHD198708-198808

main47321-36280iBU62..ARL198708-198808

W(TILT & TELESCOPIC)

main47321-36290iBU62..WT..GEN198708-198808

47322TUBE, REAR BRAKE, NO.2

main47322-36200iBU65..CBU198708-198808

main47322-36201iBU65..CBU198808-198808

main47322-36212iBU60,61,62,70,80,81..LHD198708-198808

main47322-36241iBU60,61,62,80,81,82..RHD198708-198808

main47322-36250iBU65..IV3198708-198808

sub47322-36310

main47322-36270iBU85..LHD198708-198808

main47322-36280iBU85,86,93..RHD198710-198808

47325TUBE, REAR BRAKE, NO.5

main47325-36120iBU93198710-198808

main47325-36130iBU85,86198708-198808

main47325-36142iBU65..IV3198708-198808

main47325-36150iBU85..ARL198708-198808

W(LSPV)

main47325-36171iBU80..LHD..IV3198708-198808

W(LSPV)

main47325-36180iBU60,61,62..WT..GEN198708-198808

main47325-36240iBU80,81,82..GEN,GHD198708-198808

main47325-36250iBU65..GEN..CBU198708-198808

main47325-36280iBU60,61,62,70..ST198708-198808

main47325-36300iBU65..ARL198708-198808

47326TUBE, REAR BRAKE, NO.6

main47326-36090iBU65198708-198808

main47326-36140iBU60,61,62..TS..WT;BU80,81,86..GEN,SA198708-198808

main47326-36150iBU60,61,80,81..WT..GEN198708-198808

HEAVY DUTY SPEC

main47329-36140iBU60,61,62,70..ST198708-198808

47327TUBE, REAR BRAKE, NO.7

main47327-36130iBU60,61,62,70..ST198708-198808

main47327-36140iBU60,61,62..TS..WT;BU80,81,86..GEN,SA198708-198808

main47327-36170iBU65198708-198808

main47327-36180iBU60,61,80,81..WT..GEN198708-198808

HEAVY DUTY SPEC

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-36070iBU60,61,62,70..ST198708-198808

main47341-36080iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

sub47341-36081

main47341-36090iBU6#,8#..WT198708-198710

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-36020iBU60,61,62,70..ST198708-198808

main47342-36030iBU6#,8#,93..WT198710-198808

main47342-36060iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-36070iBU60,61,62,70..ST198708-198808

main47343-36080iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

sub47343-36081

main47343-36090iBU6#,8#,93..WT198710-198808

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47342-36020iBU60,61,62,70..ST198708-198808

main47342-36030iBU6#,8#,93..WT198710-198808

main47344-36060iBU80..LHD..IV3198708-198808

SWITZERLAND SPEC

47345TUBE, WHEEL CYLINDER, REAR RH

main47345-36011iBU60,61,62,70..ST198708-198808

main47345-36040iBU6#,8#..WT198708-198710

47346TUBE, WHEEL CYLINDER, REAR LH

main47345-36011iBU60,61,62,70..ST198708-198808

main47345-36040iBU6#,8#..WT198708-198710

9699110080

main96991-10080

9699112080

main96991-12080

21 parts on this diagram · 9 diagrams in section
