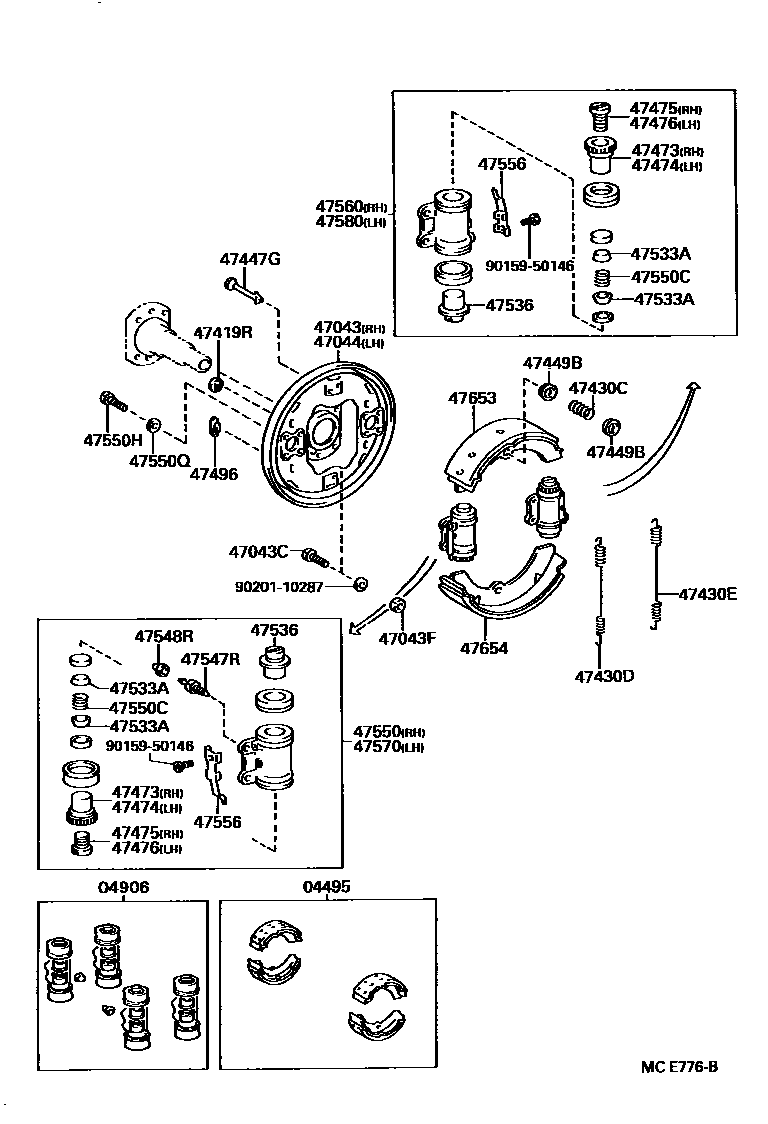

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04495SHOE KIT, REAR BRAKE

main04495-36070iBU6#,8#..WT..(CBU,IV3)198802-198808

sub04495-36110

main04495-36080iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

sub04495-36110

04906CUP KIT, REAR WHEEL CYLINDER

main04906-36070iBU8#198708-198808

W(LSPV)

main04906-36080iBU60,62,70..ST..GEN198708-198808

main04906-36090iBU65198708-198808

main04906-36120iBU60,61,62..WT198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main04906-36140iBU62..ARL198708-198808

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-36090iBU60,61,62,70..ST198708-198808

sub47043-36091

sub47492-28010

main47043-36110iBU6#,8#..WT198708-198710

sub47043-36140

sub47492-28010

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10019×12iBU6#,70,8#198708-198710

*10-1.25PX31-21.5

sub90114-10063

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90170-10178×12iBU6#,70,8#,93198710-198808

sub94130-01002

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-36090iBU60,61,62,70..ST198708-198808

sub47044-36091

sub47492-28010

main47044-36110iBU6#,8#,93..WT198710-198808

sub47044-36140

sub47492-28010

47419RPLUG, HOLE(FOR REAR BRAKE)

main47419-35011×4iBU6#,70,8#..5F198708-198710

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012×4iBU6#,70,8#,93198710-198808

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iBU60,61,62,70..ST198708-198808

main90507-29006×2iBU6#,8#,93..WT198710-198808

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-29006×2iBU60,61,62,70..ST198708-198808

main90507-29006×2iBU6#,8#,93..WT198710-198808

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-36020×4iBU60,61,62,70..ST198708-198808

main47447-60010×4iBU6#,8#,93..WT198710-198808

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iBU6#,70,8#198708-198710

47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)

main47551-36130×2iBU8#,93198710-198808

main47551-36150×2iBU60,61,62,70..ST198708-198808

main47551-36160×2iBU6#..5F..WT198708-198808

47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47552-36130×2iBU60..LHD..WT198708-198808

W(LSPV)

main47552-36150×2iBU60,61,62,70..ST198708-198808

main47552-36160×2iBU6#..5F..WT198708-198808

47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)

main47553-36050×2iBU60,61,62,70..ST198708-198808

main47553-36060×2iBU6#,8#,93..5F..WT198710-198808

main47553-36070×2iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..5F..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)

main47554-36050×2iBU60,61,62,70..ST198708-198808

main47554-36060×2iBU6#,8#,93..5F..WT198710-198808

main47554-36070×2iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..5F..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-36010×4iBU6#,70,8#,93..5F198710-198808

sub47491-36020

47533ASEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE)

main47533-30011×8iBU60..RHD..GEN198708-198808

W(FR DISC BRAKE RR AUTOADJUSTER)

main47533-40013×8iBU62..ARL198708-198808

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47536-36020×4iBU60,61,62,70..ST198708-198808

main47536-36030×4iBU62..ARL198708-198808

main47536-36040×2iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010×2iBU6#,70,8#198708-198710

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iBU6#,70,8#,93198710-198802

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-36100iBU60,61,62,70..ST198708-198808

main47550-36110iBU6#..5F..WT198708-198808

main47550-36120iBU8#198708-198710

main47550-36150iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47550-36160iBU62..ARL198708-198808

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-08122×2iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main90501-09735×4iBU62..ARL198708-198808

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90101-08081×16iBU60,61,62,70..ST198708-198808

main90101-10127×16iBU6#,8#,93..WT198710-198808

47550QWASHER(FOR REAR WHEEL CYLINDER)

main90201-08002×16iBU60,61,62,70..ST198708-198808

main90201-10287×16iBU6#,8#..WT198708-198710

47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)

main47555-36051×4iBU6#,70,8#..5F198708-198710

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-36100iBU60,61,62,70..ST198708-198808

main47560-36110iBU6#..5F..WT198708-198808

main47560-36120iBU60..LHD..WT198708-198808

W(LSPV)

main47560-36150iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47560-36160iBU62..ARL198708-198808

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-36100iBU60,61,62,70..ST198708-198808

main47570-36110iBU6#..5F..WT198708-198808

main47570-36120iBU8#198708-198710

main47570-36150iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47570-36160iBU62..ARL198708-198808

47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)

main47580-36100iBU60,61,62,70..ST198708-198808

main47580-36110iBU6#..5F..WT198708-198808

main47580-36120iBU8#198708-198710

main47580-36150iBU65..ARL;BU60..RHD..GEN;BU61,62,80,81,85,86..WT..(ARL,GEN)..(CBU,IV3)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main47580-36160iBU62..ARL198708-198808

47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)

main47651-36100×2iBU60,61,62,70..ST198708-198808

main47651-36120×2iBU81..SA198708-198808

main47655-36040×2iBU85..RHD..(CBU,IV3);BU60,61,62,80,81,86..WT..(ARL,GEN)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)

main47651-36100×2iBU60,61,62,70..ST198708-198808

main47651-36120×2iBU81..SA198708-198808

main47655-36040×2iBU85..RHD..(CBU,IV3);BU60,61,62,80,81,86..WT..(ARL,GEN)198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

9015950146

main90159-50146

9020110287

main90201-10287

33 parts on this diagram · 2 diagrams in section
