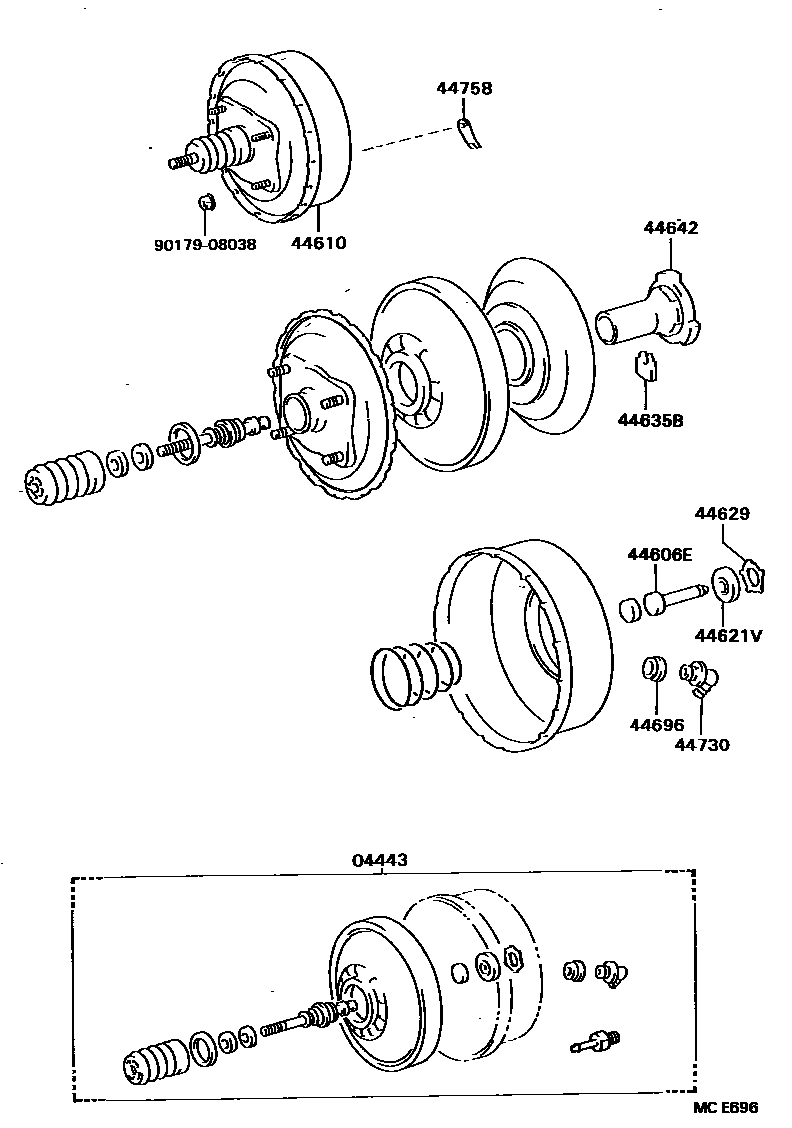

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-36050iBU62..ST;BU60,61,65,70,80,81,86¥7,200198708-198808

main04443-36060iBU65..ARL;BU60,61,80,81,86..WT..(ARL,GEN)¥7,200198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main04443-36101iBU62,82,85..RHD¥12,700198708-198808

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-36240iBU62..ST;BU60,61,65,70,80,81,86¥1,970198708-198808

44610BOOSTER ASSY, BRAKE

main44610-36251iBU62..ST;BU60,61,65,70,80,81..LHD¥45,700198708-198808

main44610-36260iBU65..ARL;BU60,61,80,81,86..RHD..WT..(ARL,GEN)¥45,700198708-198808

main44610-36271iBU60,61,80,81..LHD..WT¥45,700198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main44610-36321iBU62,85..RHD..(CBU,IV3)¥51,100198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main44610-36332iBU62,85..LHD..WT¥51,000198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

main44610-36371iBU62,82,85,93..RHD¥51,100198708-198808

main44610-36382iBU62,85..LHD..WT¥51,000198708-198808

44621VSEAL, BOOSTER BODY

main44621-28120iBU62..ST;BU60,61,65,70,80,81,86¥590198708-198808

44629RING, CIRCULAR INTERNAL

main44628-28120iBU62..ST;BU60,61,65,70,80,81,86¥390198708-198808

44635BKEY, VALVE STOPPER

main44635-36240iBU62..ST;BU60,61,65,70,80,81,86¥200198708-198808

44642PISTON, BRAKE BOOSTER

main44642-36240iBU62..ST;BU60,61,65,70,80,81,86¥3,460198708-198808

main44642-36260iBU65..ARL;BU60,61,80,81,86..WT..(ARL,GEN)¥3,460198708-198808

W(FR DISC BRAKE RR AUTO ADJUSTER)

44696GROMMET, CHECK VALVE

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60040iBU6#,70,8#¥5,500198708-198808

44758BRACKET, VACUUM CHECK VALVE

9017908038

main90179-08038¥130

11 parts on this diagram · 4 diagrams in section
