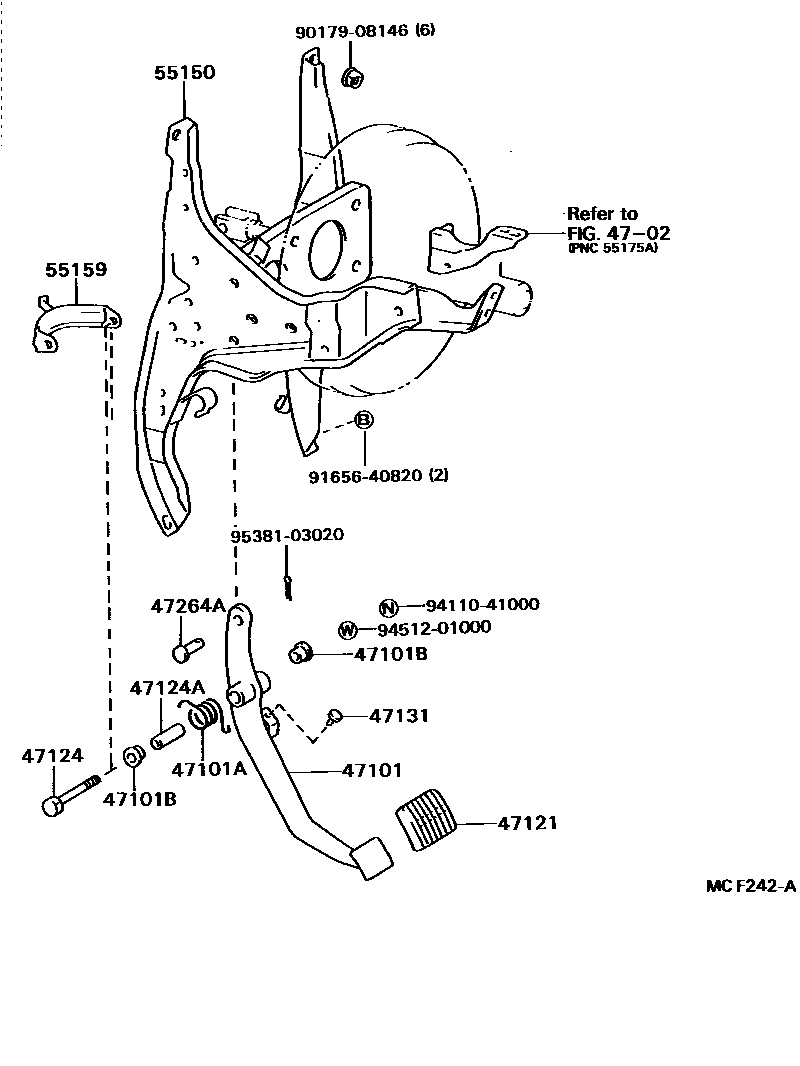

BRAKE PEDAL & BRACKET

4702

47101PEDAL SUB-ASSY, BRAKE

main47101-36100iBU85,86..RHD198708-198804

sub47101-36101

main47101-36101iBU85,86,93198804-198808

main47101-36110iBU6#,80,81,82..RHD198708-198808

main47101-36120iBU6#,70,80,81,85..LHD198708-198808

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35324iBU6#,70,8#198708-198808

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBU6#,70,8#198708-198808

47121PAD, BRAKE PEDAL

main31321-36010iBU6#,70,8#198708-198808

47124SHAFT, BRAKE PEDAL

main91121-51070iBU6#,70,8#198708-198808

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iBU6#,70,8#198708-198808

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iBU6#,70,8#198708-198808

47264APIN(FOR PUSH ROD)

main90240-10015iBU6#,70,8#198708-198808

55150BRACKET ASSY, PEDAL

main55150-95402iBU6#,70,80,81..LHD198708-198808

main55150-95403iBU6#,8#,93..RHD198708-198808

main55150-95404iBU85..LHD198708-198808

55159STAY, PEDAL BRACKET

main55159-95401iBU6#,70,8#,93198708-198808

9017908146

main90179-08146

9165640820

main91656-40820

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

16 parts on this diagram · 1 diagram in section
