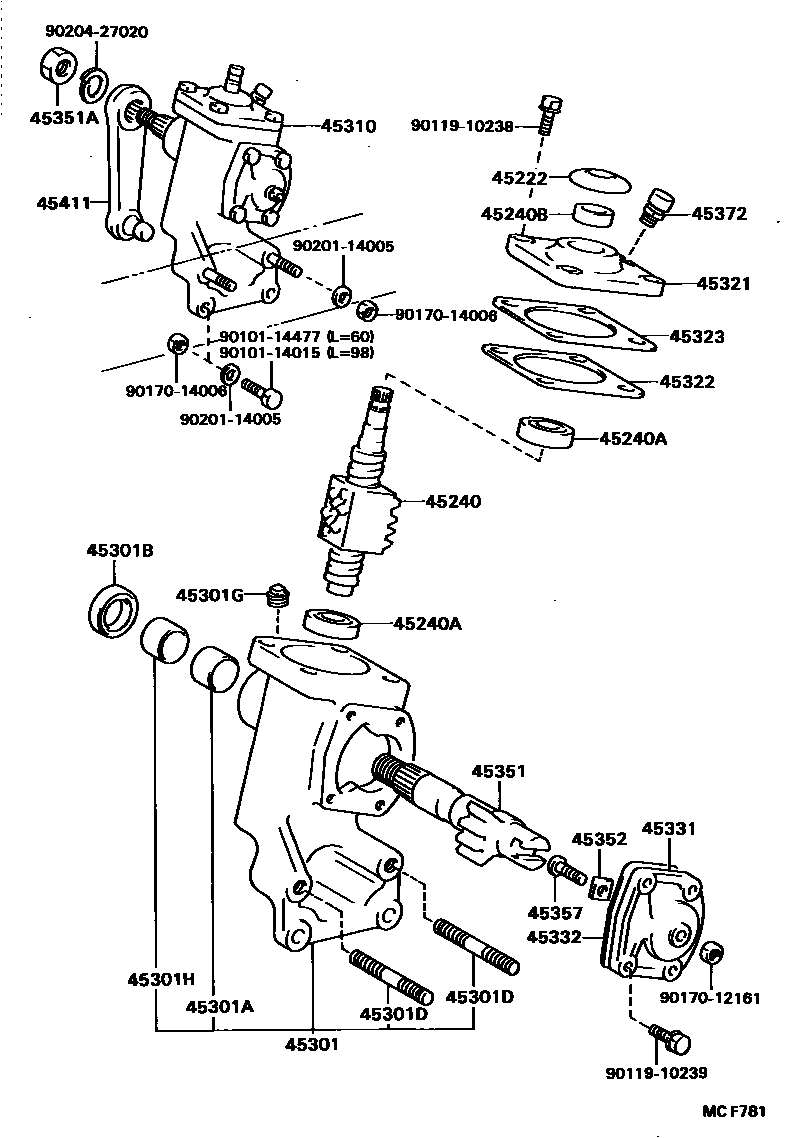

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45222COVER, STEERING GEAR DUST

main45222-26010iBU6#,70,8#198708-198808

45240WORM ASSY, STEERING

main45240-36140iBU6#,80,81,82..RHD198708-198808

main45240-36150iBU6#,70,80,81..LHD198708-198808

main45240-36170iBU85,86..RHD198708-198808

main45240-36180iBU85..LHD198708-198808

45240ABEARING(FOR STEERING WORM)

main90363-20024iBU6#,70,8#198708-198808

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iBU85,86198708-198808

main90311-19001iBU6#,70,80,81,82198708-198808

45301HOUSING SUB-ASSY, STEERING GEAR

main45301-36170iBU60,61,62,80,81,82..RHD198708-198808

sub45301-37030

main45301-36180iBU60,61,62,70,80,81..LHD198708-198808

main45301-36190iBU65..CBU198708-198808

sub45301-37040

main45301-36200iBU65..IV3198708-198808

main45301-36230iBU85,86,93..RHD198708-198808

main45301-36240iBU85..LHD198708-198808

45301ABUSH OR BEARING, SECTOR SHAFT, NO.1

main90999-73060iBU6#,70,80,81,82198708-198808

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90311-36104iBU6#,70,80,81,82198708-198808

main90311-38033iBU85,86,93198708-198808

45301DBOLT, STUD(FOR STEERING GEAR HOUSING)

main90116-14004iBU60,61,62,70,80,81,82198708-198808

main90116-14008iBU65198708-198808

L=96

main90116-14009iBU65198708-198808

L=73

45301GPLUG, STEERING GEAR BOX OIL

main90345-53003iBU6#,70,80,81,82198708-198808

main90345-53005iBU6#,70,80,81,82198808-198808

45301HBUSH OR BEARING, SECTOR SHAFT, NO.2

main90999-73060iBU6#,70,80,81,82198708-198808

45310HOUSING ASSY, STEERING GEAR

main45310-36190iBU60,61,62,80,81,82..RHD198708-198808

sub45310-36191

main45310-36200iBU60,61,62,70,80,81..LHD198708-198808

sub45310-36201

main45310-36210iBU65..CBU198708-198808

sub45310-36211

main45310-36220iBU65..IV3198708-198808

sub45310-36221

main45310-36250iBU85,86..RHD198708-198808

sub45310-36251

main45310-36260iBU85..LHD198708-198808

sub45310-36261

45321COVER, GEAR HOUSING END

main45321-36050iBU6#,70,80,81,82198708-198808

45322GASKET, GEAR HOUSING END COVER

main45322-37010iBU6#,70,80,81,82198708-198808

45323SHIM, GEAR HOUSING END COVER

main45323-37010iBU6#,70,80,81,82198708-198808

T=0.05

main45323-37020iBU6#,70,80,81,82198708-198808

T=0.06

main45323-37030iBU6#,70,80,81,82198708-198808

T=0.07

main45323-37040iBU6#,70,80,81,82198708-198808

T=0.10

main45323-37050iBU6#,70,80,81,82198708-198808

T=0.20

main45323-37060iBU6#,70,80,81,82198708-198808

T=0.50

45331COVER, SECTOR SHAFT END

main45304-36050iBU6#,70,80,81,82198708-198808

main45304-36060iBU85,86198708-198808

45332GASKET, SECTOR SHAFT END COVER

main45332-36040iBU85,86198708-198808

main45332-37010iBU6#,70,80,81,82198708-198808

45351SHAFT, STEERING SECTOR

main45351-36030iBU6#,70,80,81,82198708-198808

sub45351-36031

main45351-36050iBU85,86198708-198808

sub45351-36051

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-27033iBU6#,70,8#198708-198808

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iBU6#,70,8#198708-198808

T=1.95

main45353-37010iBU6#,70,8#,93198708-198808

T=2.00

main45354-37010iBU6#,70,8#198708-198808

T=2.05

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iBU6#,70,8#,93198708-198808

sub45357-37020

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iBU85,86198708-198808

main90930-03095iBU6#,70,80,81,82198708-198808

45411ARM, PITMAN

main45411-36470iBU86;BU85..ARL;BU85..RHD..CBU198708-198808

W(POWER STEERING)

main45411-36470iBU86;BU85..ARL;BU85..RHD..CBU198708-198808

HONG KONG SPEC OR W(POWER STEERING)

main45411-36480iBU85..LHD198708-198808

W(POWER STEERING)

main45411-36490iBU85,86..RHD198708-198808

main45411-36500iBU85..LHD198708-198808

main45411-36510iBU6#,80,81,82..RHD198708-198808

main45411-36520iBU6#,70,80,81..LHD198708-198808

main45411-36540iBU60,61,80,81..RHD..WT..GEN198708-198808

W(POWER STEERING)

main45411-36550iBU60,61,80,81..LHD..WT198708-198808

W(POWER STEERING)

9010114015

main90101-14015

9010114477

main90101-14477

9011910238

main90119-10238

9011910239

main90119-10239

9017012161

main90170-12161

9017014006

main90170-14006

9020114005

main90201-14005

9020427020

main90204-27020

30 parts on this diagram · 6 diagrams in section
