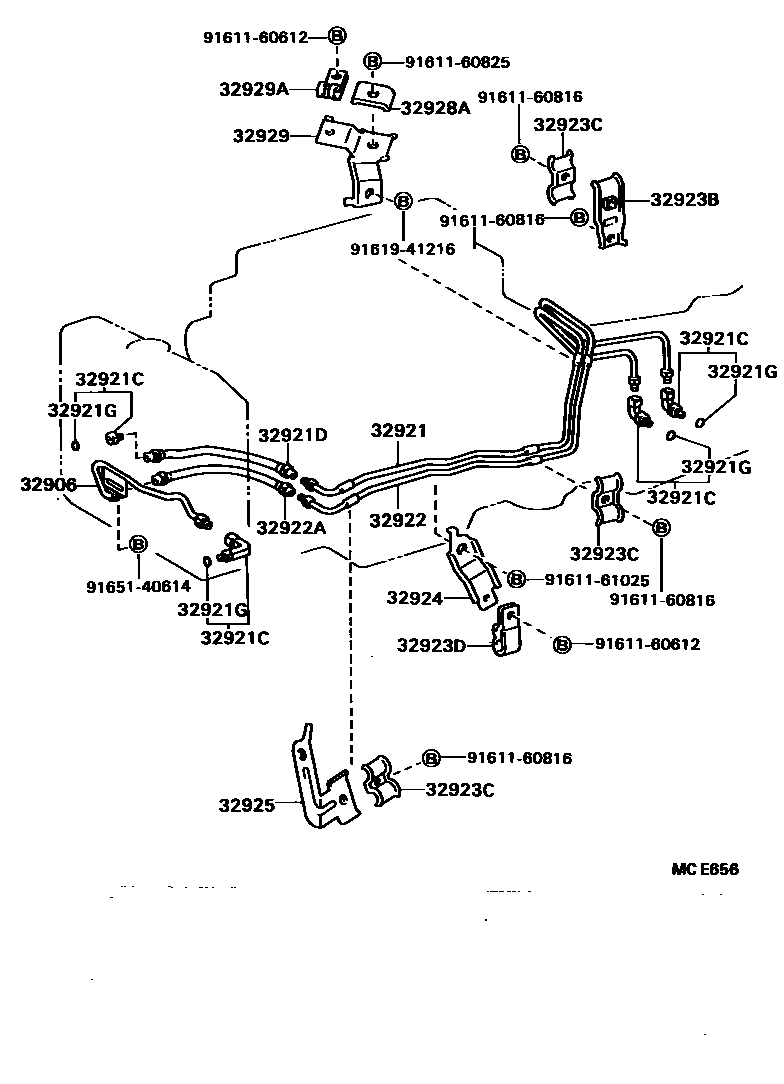

OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32906-36015iBU62..ARL198708-198808

32921TUBE, OIL COOLER INLET, NO.1

main32921-36021iBU62..ARL198708-198808

32921CUNION(FOR OIL COOLER TUBE)

main90407-14016iBU62..ARL198708-198808

RADIATOR SIDE LH

main90407-14018iBU62..ARL198708-198808

RADIATOR SIDE RH

main90407-16006iBU62..ARL198708-198808

32921DHOSE(FOR OIL COOLER INLET)

main32942-60040iBU62..ARL198708-198808

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iBU62..ARL198708-198808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-36021iBU62..ARL198708-198808

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-36020iBU62..ARL198708-198808

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-36010iBU62..ARL198708-198808

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main90462-12038iBU62..ARL198708-198808

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

main90461-08616iBU62..ARL198708-198808

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-36010iBU62..ARL198708-198808

32925CLAMP, OIL COOLER TUBE, NO.3

main32925-36011iBU62..ARL198708-198808

sub32925-36050

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90949-01189iBU62..ARL198708-198808

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-36010iBU62..ARL198708-198808

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-08429iBU62..ARL198708-198808

9161160612

main91611-60612

9161160816

main91611-60816

9161160825

main91611-60825

9161161025

main91611-61025

9161941216

main91619-41216

9165140614

main91651-40614

21 parts on this diagram · 1 diagram in section
